EXTENDED ANGGREK (36.1 m2, 388 sqft)
Code A-2
Code A-2

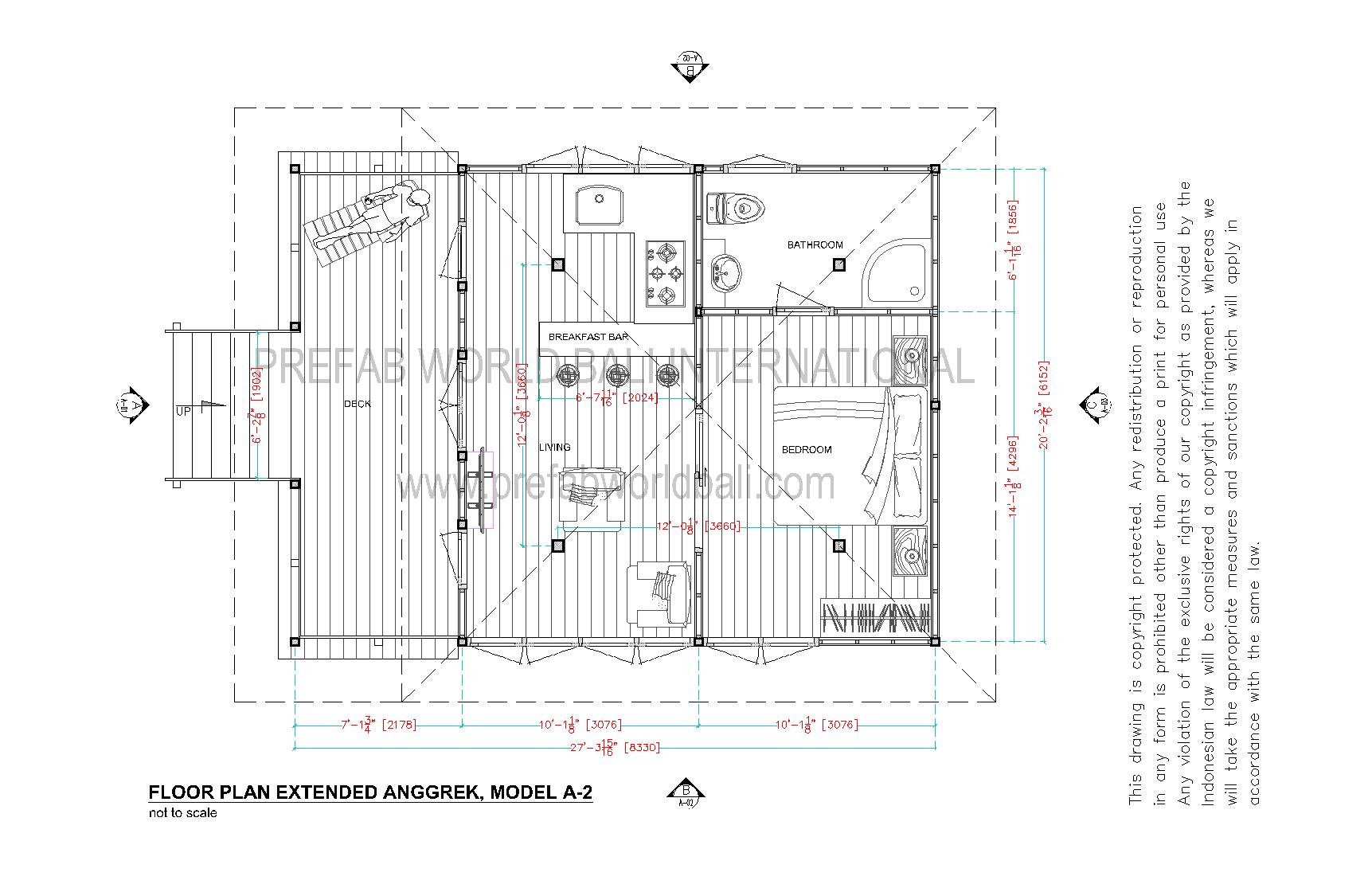

Floor plan

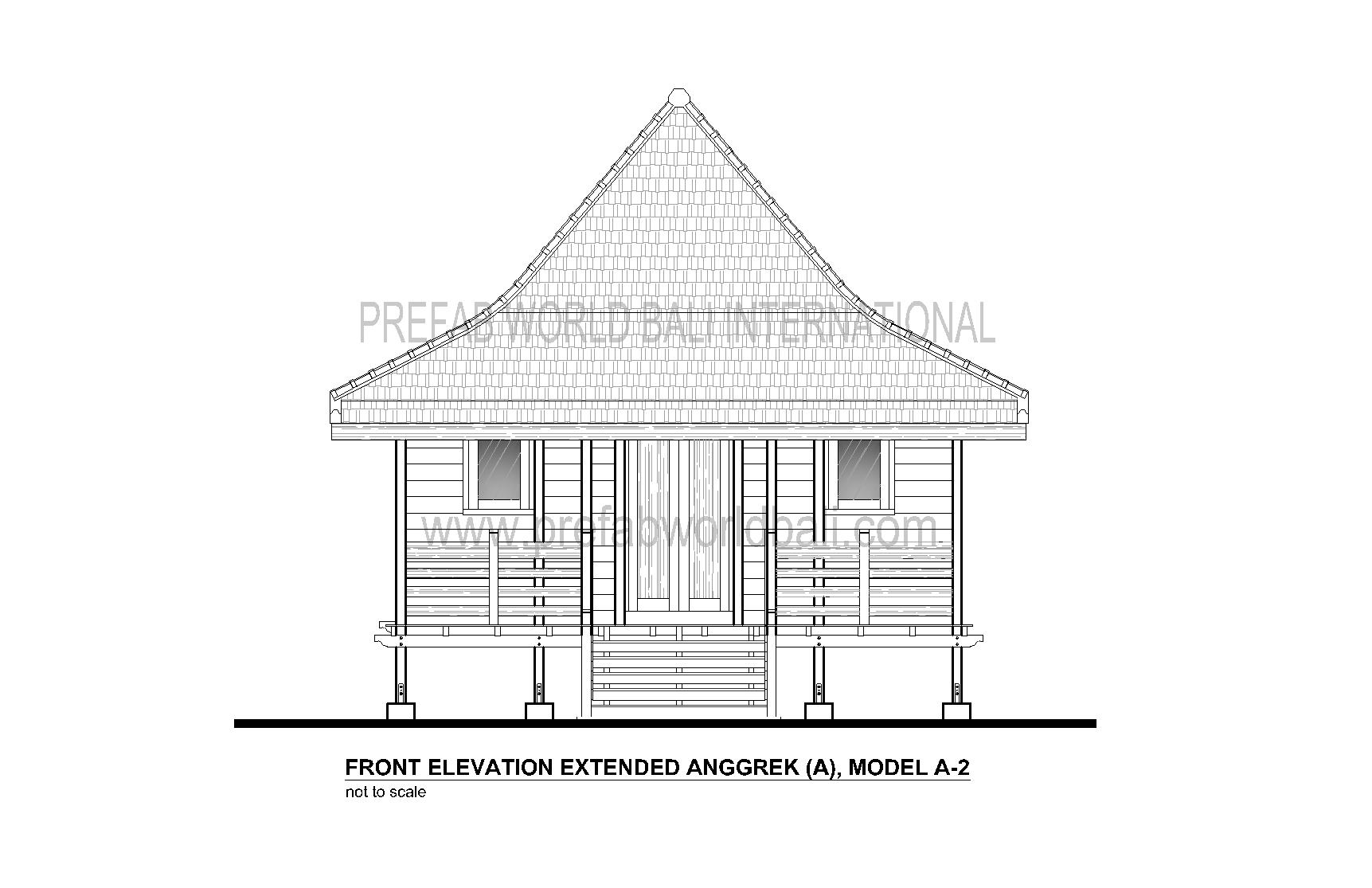

Front elevation

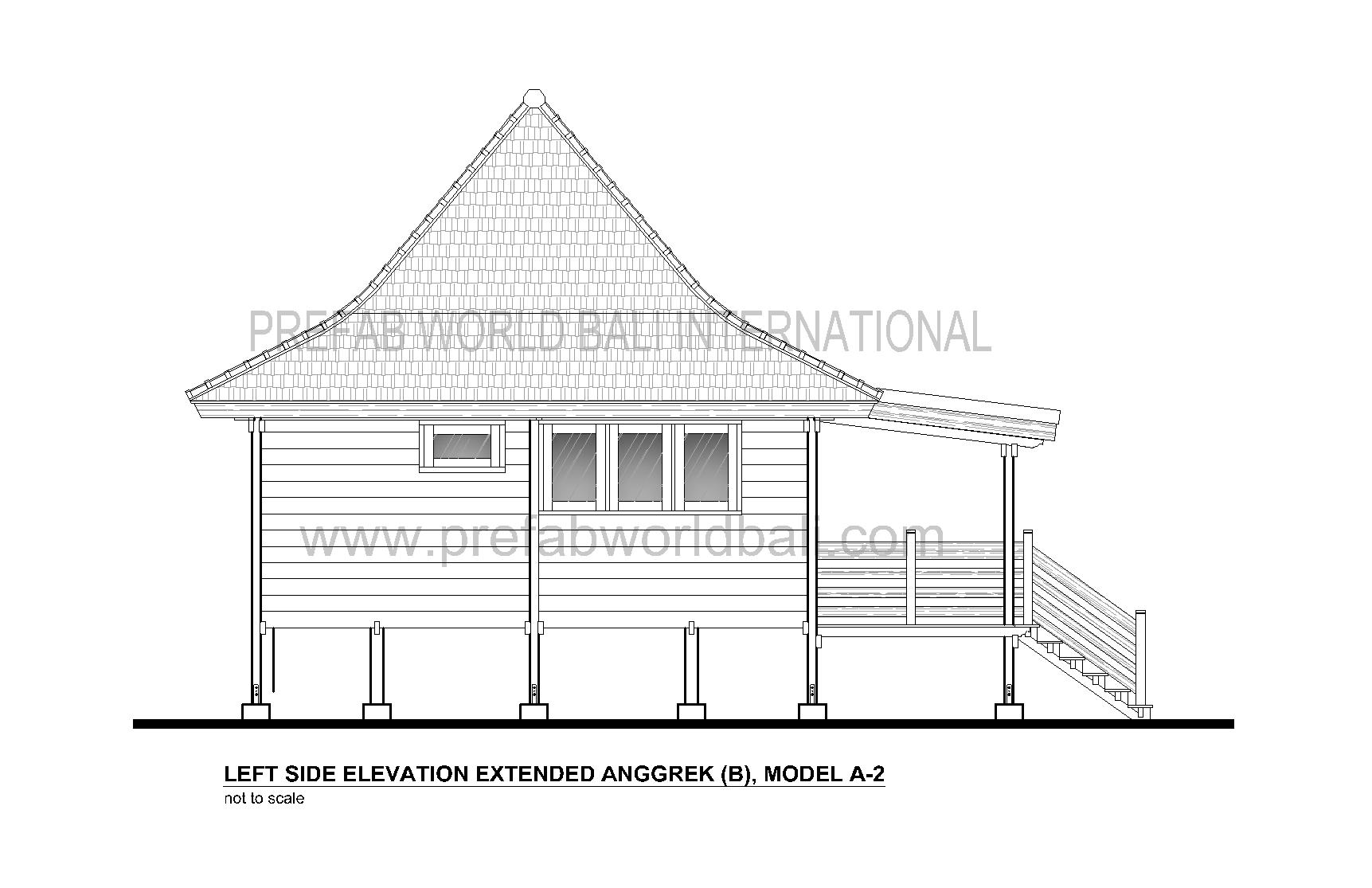

Left side elevation

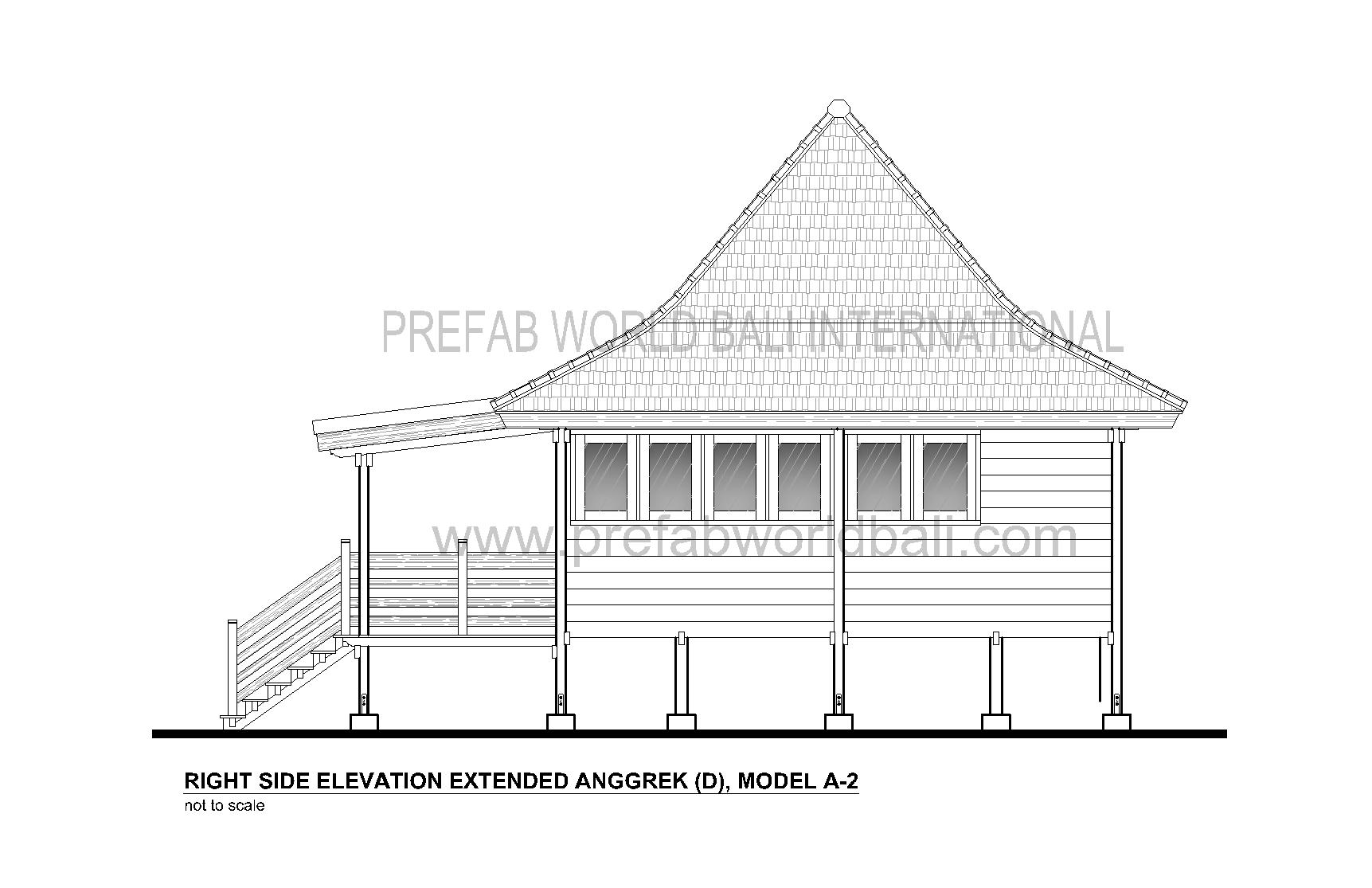

Right side elevation

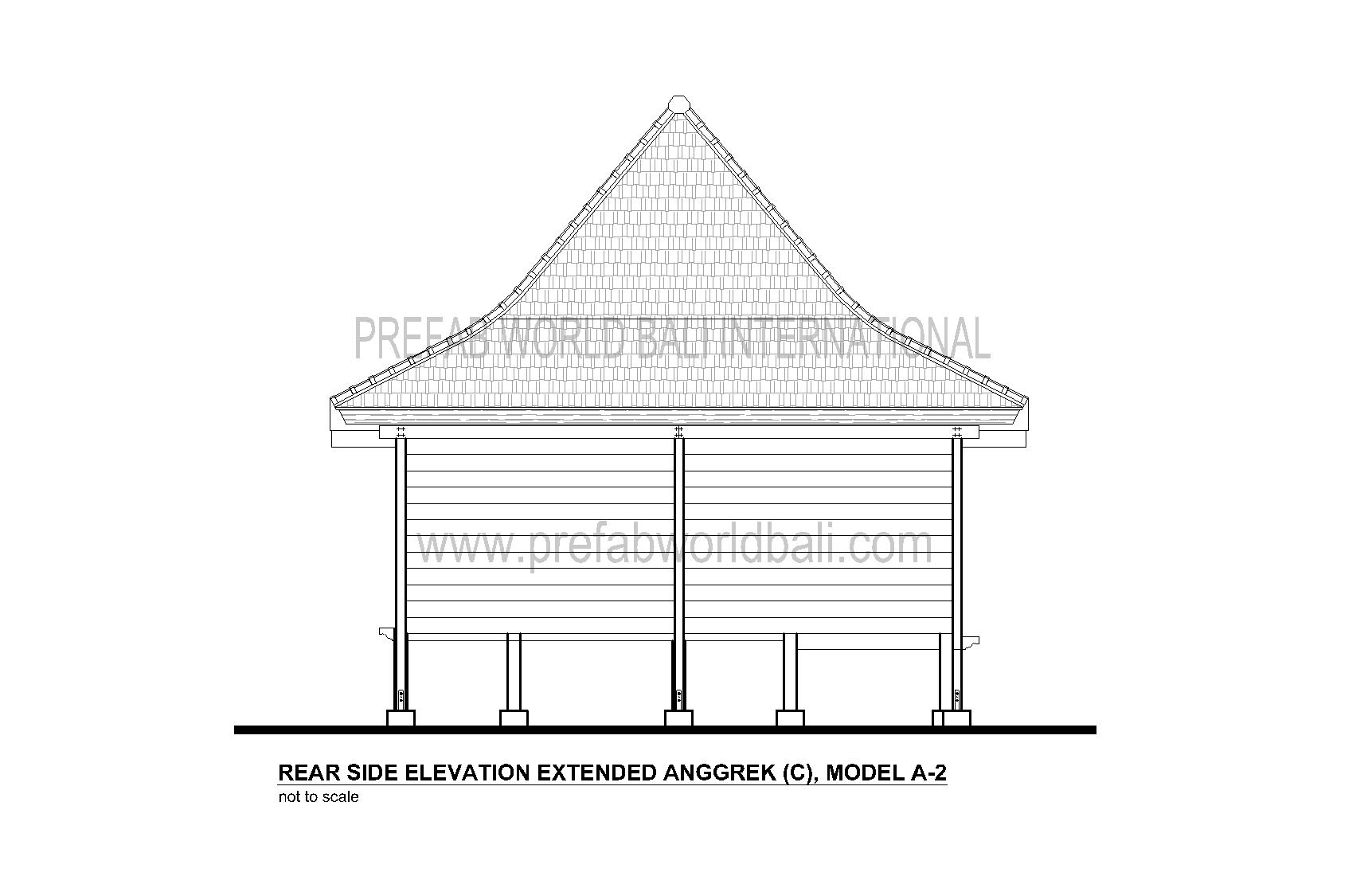

Rear elevation

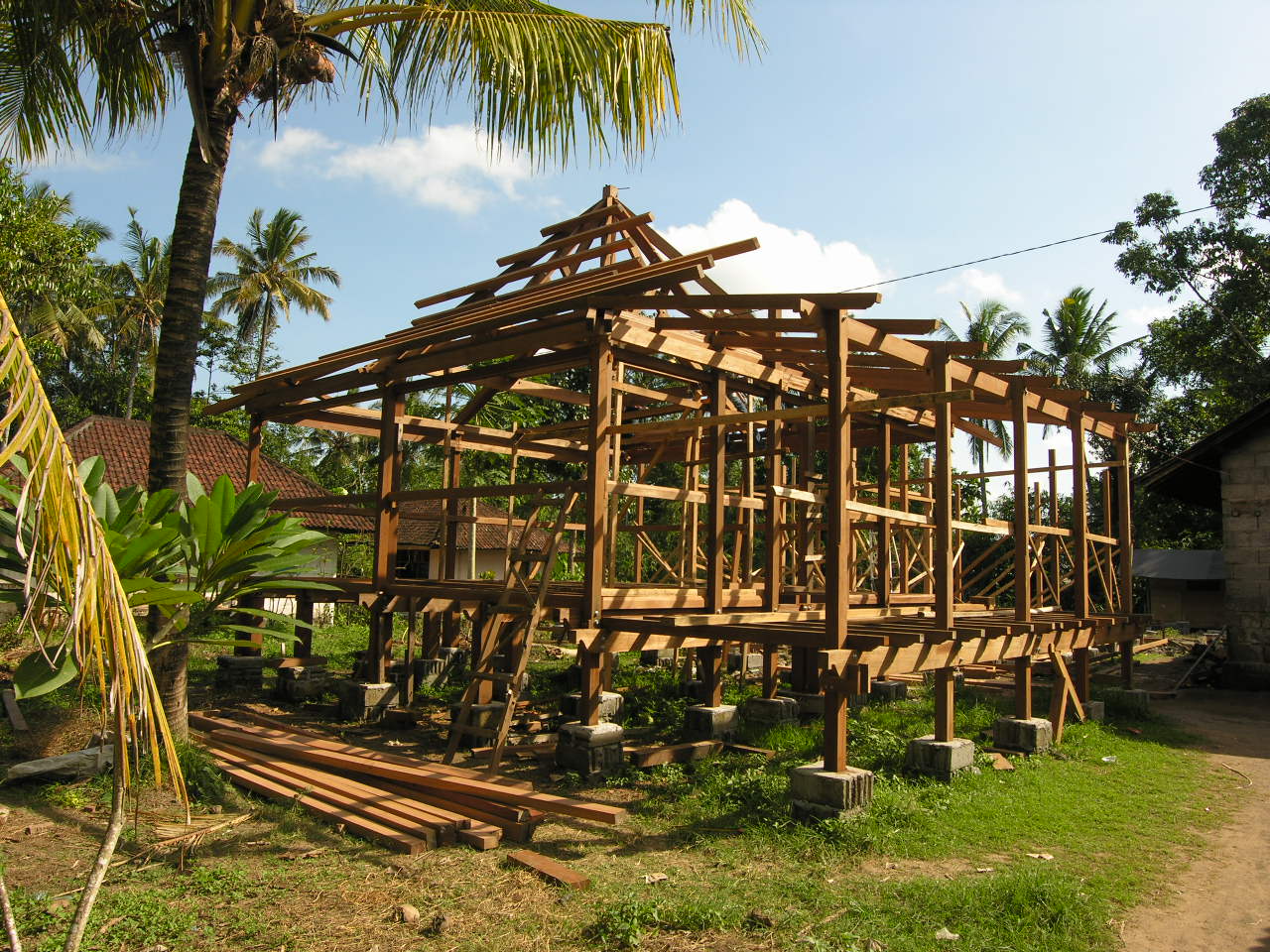

During re-assembly
As built
This unit survived Hurricane Haiyan that hit the Philippines on September 7, 2013
GENERAL DATA
Total net. interior sided area: 36.1 m2 (388 sqft).
Deck area: 14.3 m2 (154 sqft)
The breakfast bar as shown on the drawing is not included in the kitchen set.
Building footprint area: 6.25 x 11.04 meter (20' - 6 1/8" x 36' - 2 5/8")
Roof edge footprint area: 7.24 x 9.39 meter (23' - 9" x 30' - 9 5/8")
Enquire for the price list download code
