HYACINTH
Ground floor (219.3 m2, 2,077 sqft)
2nd floor: (117.1 m2, 1,260 sqft)
Code C-2

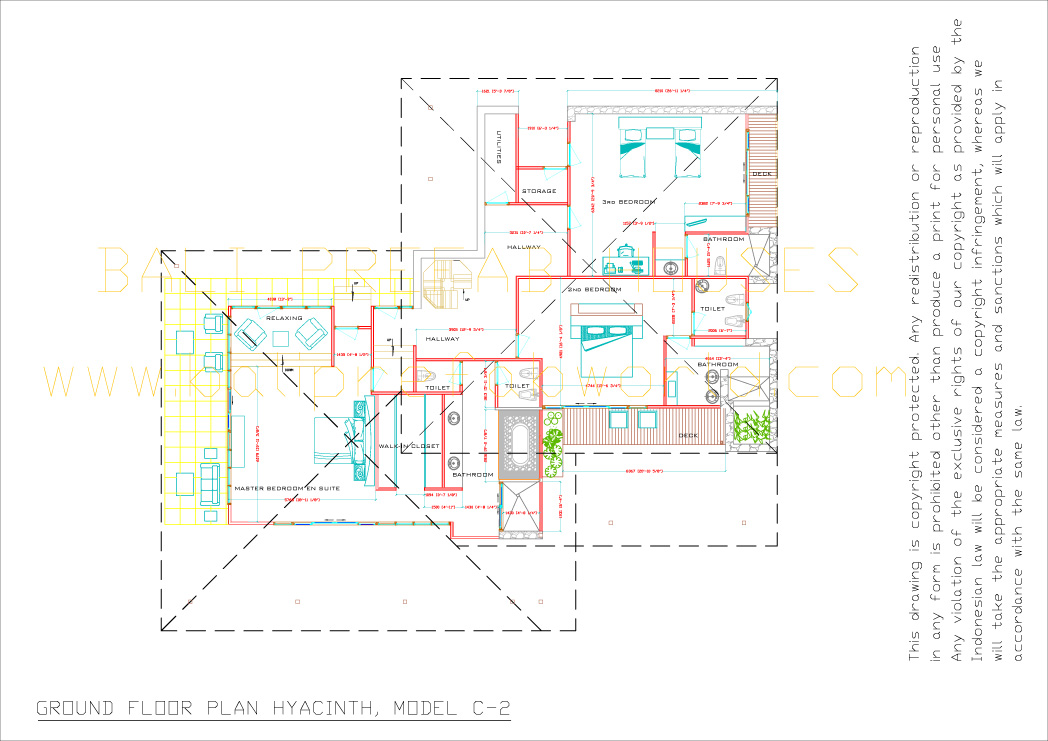

Ground floor plan

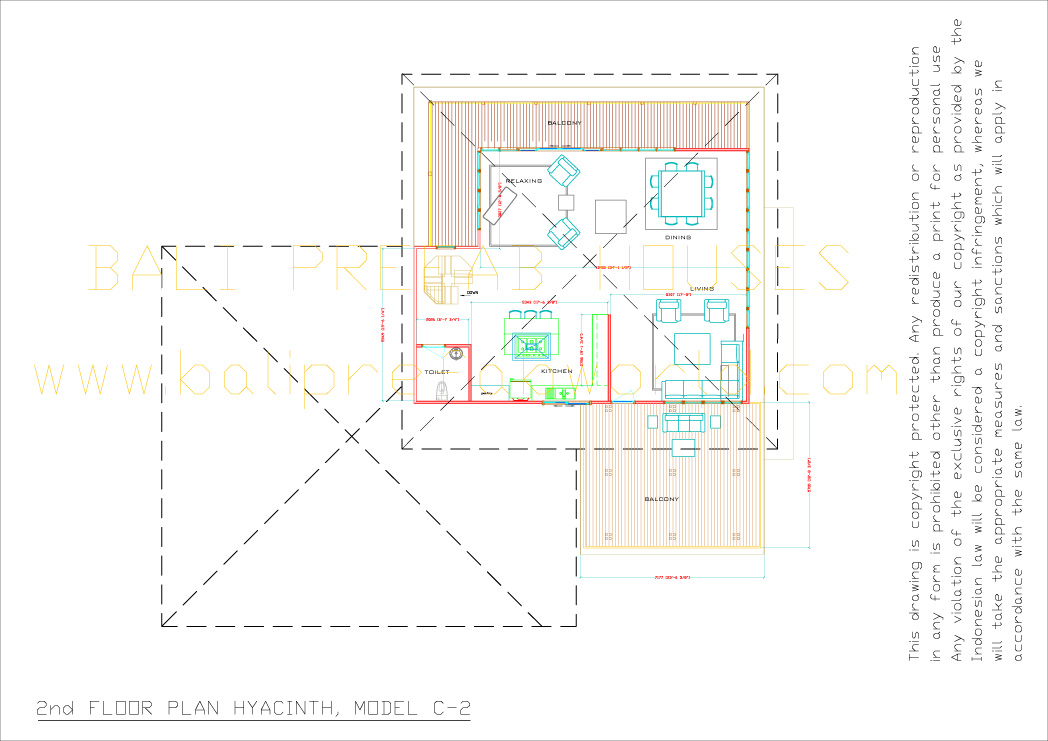

2nd floor plan

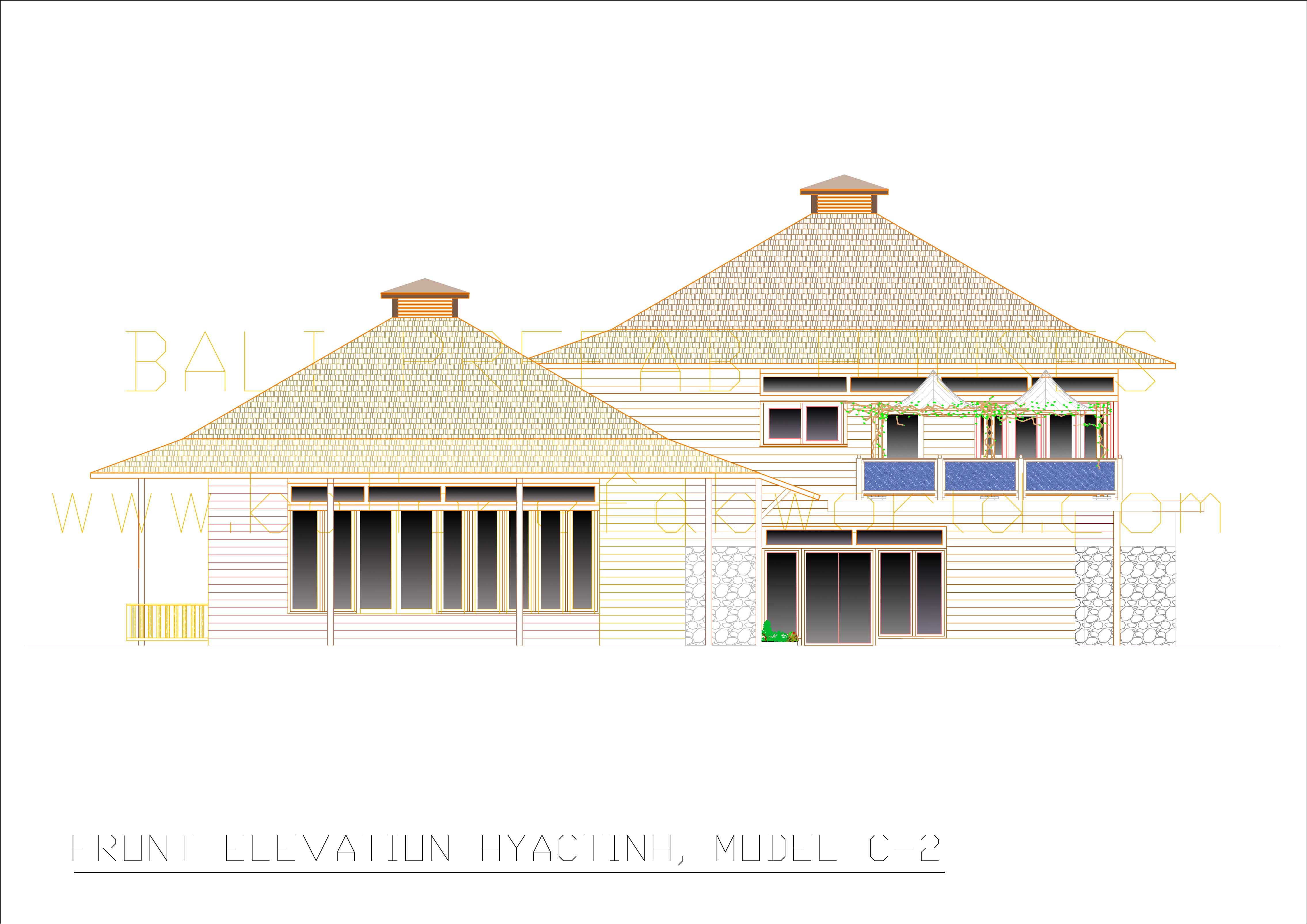

Front elevation

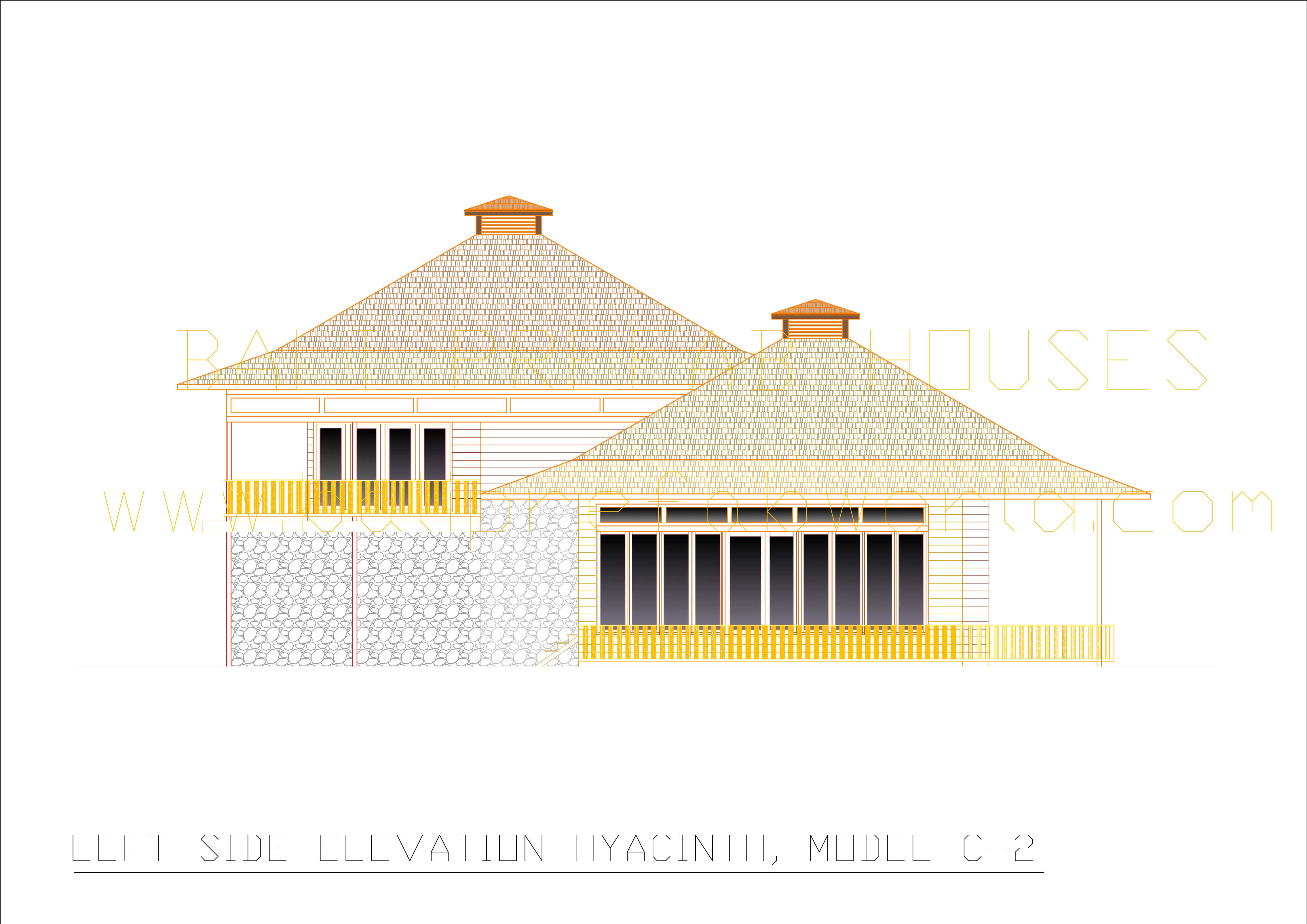

Left side elevation

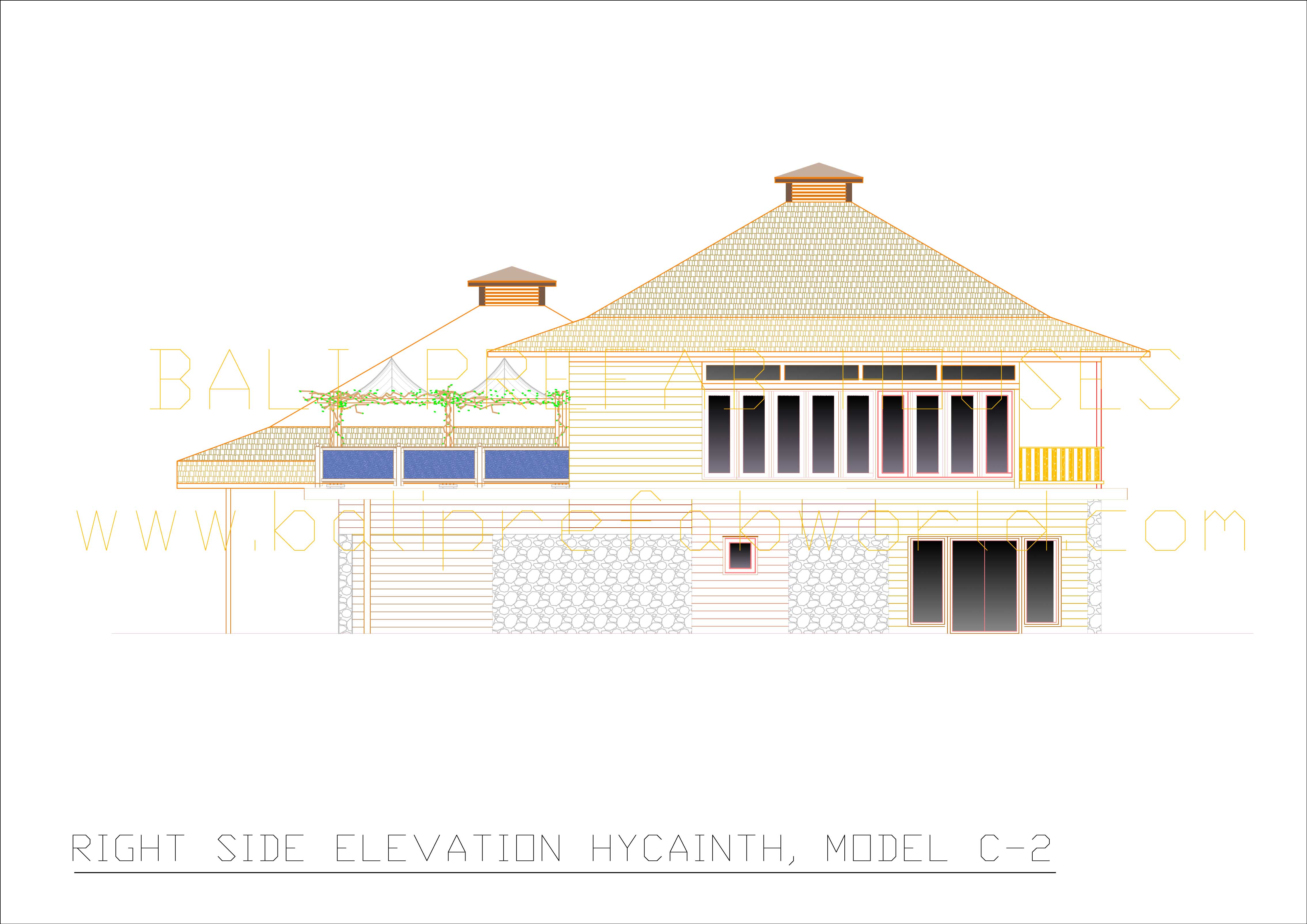

Right side elevation

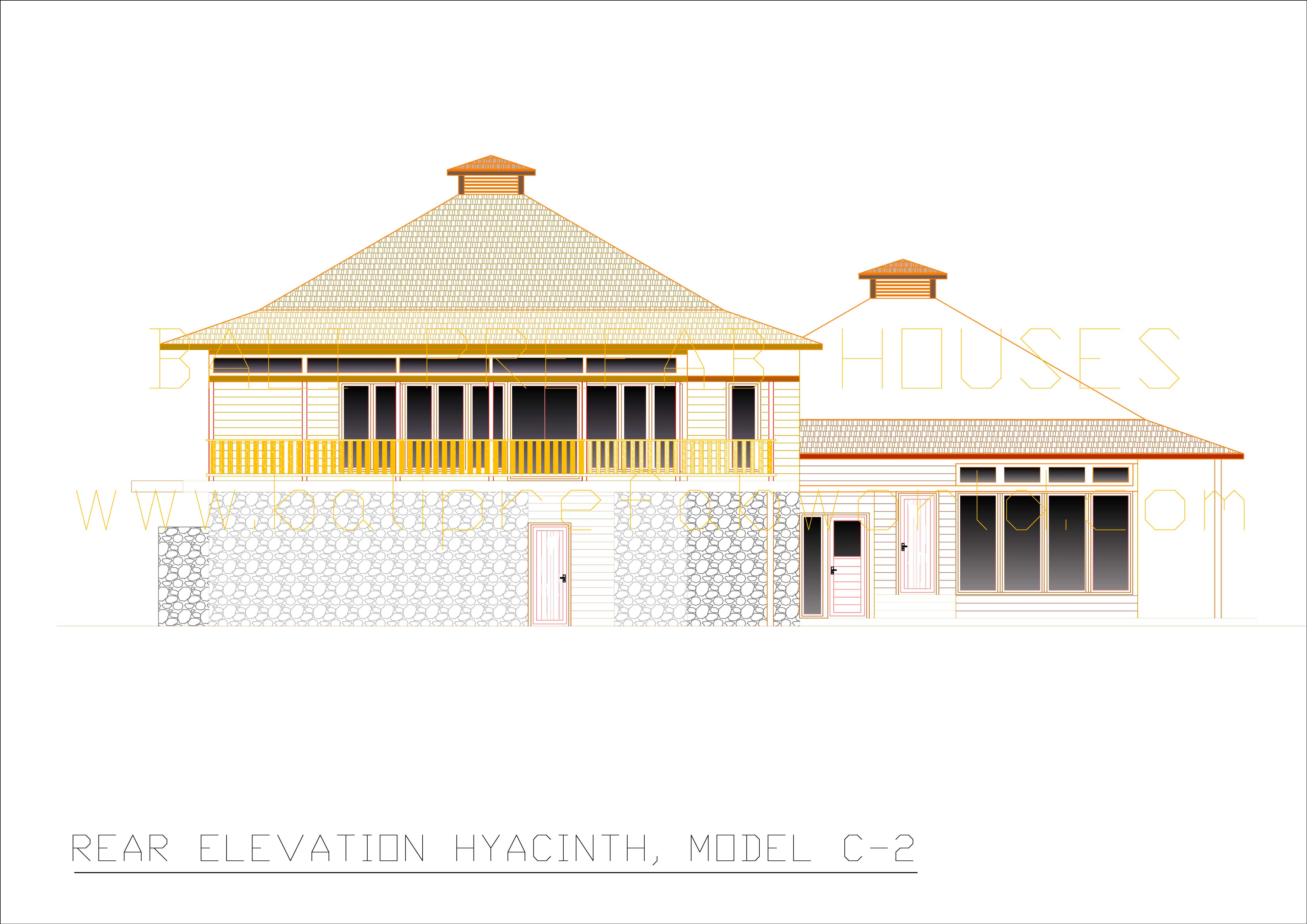

Rear elevation
GENERAL DATA
Total net. interior sided area:
Ground floor: 219.3 m2 (2,077 sqft),
2nd flloor: 117.1 m2 (1,260 sqft)
Deck area: Ground floor front: 5 m2 (54 sqft), left side: 9 m2 (97 sqft),
2nd floor right side: 22.3 m2 (240 sqft), rear: 7.4 m2 (80 sqft), left side: 39.5 m2 (425 sqft)
Building footprint area: 19.41 x 23.96 meter (63' - 8 1/8" x 78' - 7 3/8")
Roof edge footprint area: 21.61 x 24.07 meter (70' - 10 3/4" x 78' - 11 3/8")
Enquire for the price list download code
