IN HAND PROJECTS

A. INDONESIA, ISLAND OF SUMBAWA for Appeal Catering Australia, Mrs. Belinda Jones.

The project includes prefabrication, foundations, electricity, plumbing, preparation of all master plans, the Bill of Quantities, and a detailed cost estimate. The project comprises 5 guest house units, a large gazebo-style restaurant, a swimming pool, a 2-story villa for the owner, a 2-story accommodation house for personnel, and a security office. The stormwater system and the sewer were designed by us, as well as the main electrical system and the electrical systems in all buildings. Additionally, Prefabworld Bali International conducted a comprehensive soil investigation to verify that the subsoil was strong and stable enough to support the buildings. It appeared that a settlement of almost 3 cm could be expected as such Prefabworld Bali International adapted a special foundation design to allow for the structures to absorb these settlements safely.



IMB Master Plan final

Masterplan

Syring non scale

Floor plan

Syring side elevation extended

Side elevation



Syring front elevation section extended

Front elevation & cross section

2



1

23 8 2





10 January 2023



23 8 3



23 8 4



IMG 20230514 WA0009




Large gazebo to serve as a restaurant

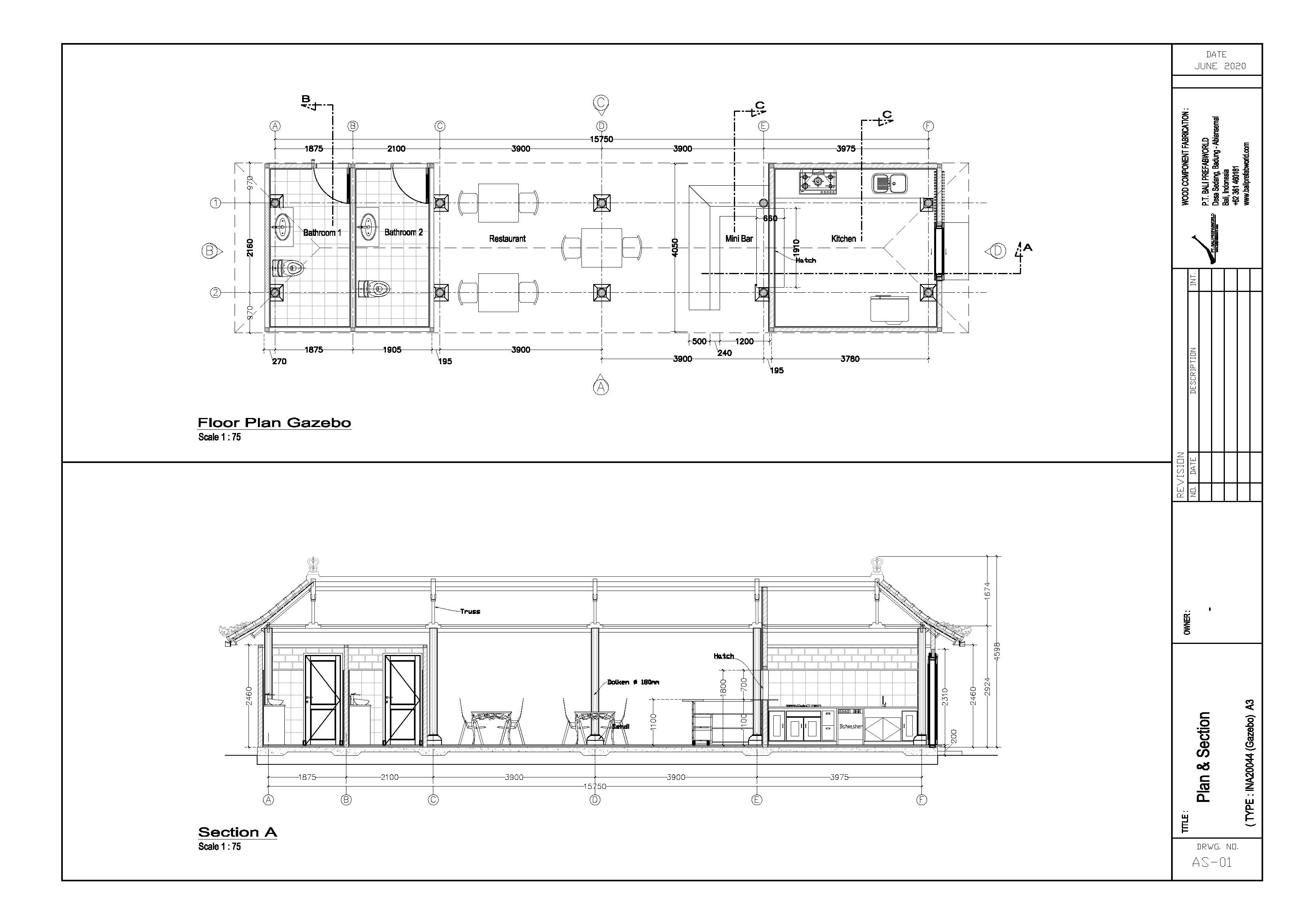

Gazebo floorplan rev 4

Floor plan restaurant gazebo

Gazebo front elevation rev 4

Side elevation

Gazebo cross section rev 4

Cross section

Gazebo 07 09 2121 1

During construction



B. PANAMA, BOCAS DEL TORO, 2-pod large overwater villa. Mr. Jan Aarts, The Netherlands.

The project comprises the design and drafting works for a 2-pod villa of 150 m2 to be built over water. Our company designed the villa, including the electricity, plumbing and the overwater piled foundation for which structural calculations were produced with our finite element computer program, taking into account a category 3 hurricane wind force to the villa and a 4.5 Richter earthquake.

Floor Plan rev 6

Floor plan

Elevation rev 2

Front and rear elevation

View at the rear side

Render of the rear elevation

Front elevation 01

Render of the front elevation



C. ISLAND OF SUMBA, INDONESIA, small resort. Mrs. Natahlie Kohler, Switzerland

The project includes prefabrication, foundations, electricity, plumbing, preparation of the master plan, the Bill of Quantities, and a detailed cost estimate. The project comprises a guest house, a large 2-story gazebo and a typical Bali-style Lumbung, a restaurant, a swimming pool and a security office. The stormwater system and the sewer were designed by us, as well as the main electrical system and the electrical systems in all buildings.

Masterplan rev 28 Model

Masterplan

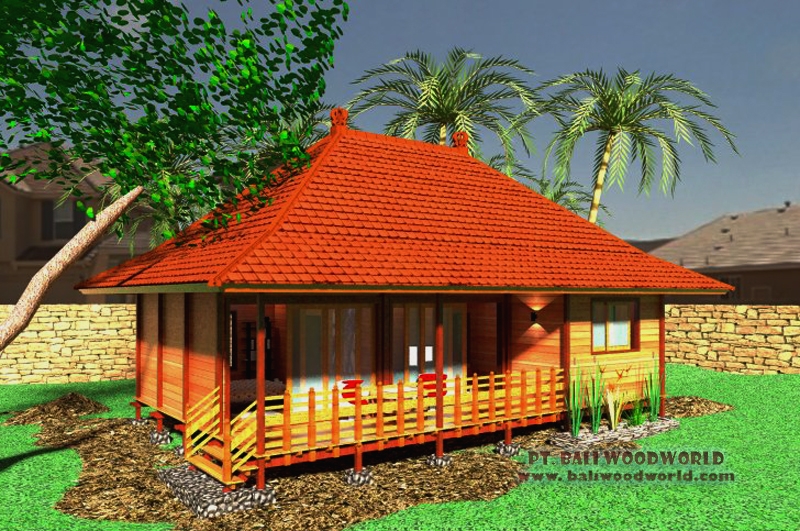

Sandat 3 rev 1 Model

Floor plan main unit (type Sandat 3)



Sandat 3 Front elevation

Front elevation main unit

 The Lumbung unit

Cayenna floor plan

Floor plan Lumbung (Cayenne)

Cayenna front elevation

Front elevation

Cayenna front view 2

View from front elevation

Interior Cayanna

Interior

This unit was previously built in Bali and chosen by the client to also build it for her project. This unit can be ordered separately as well as the Sandat 3 unit. For more drawings refer to < Cayenne > or < Sandat 3 >

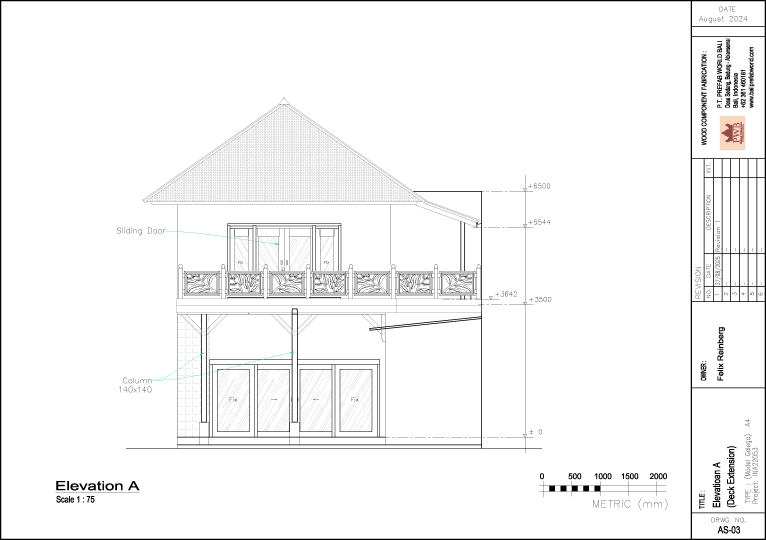

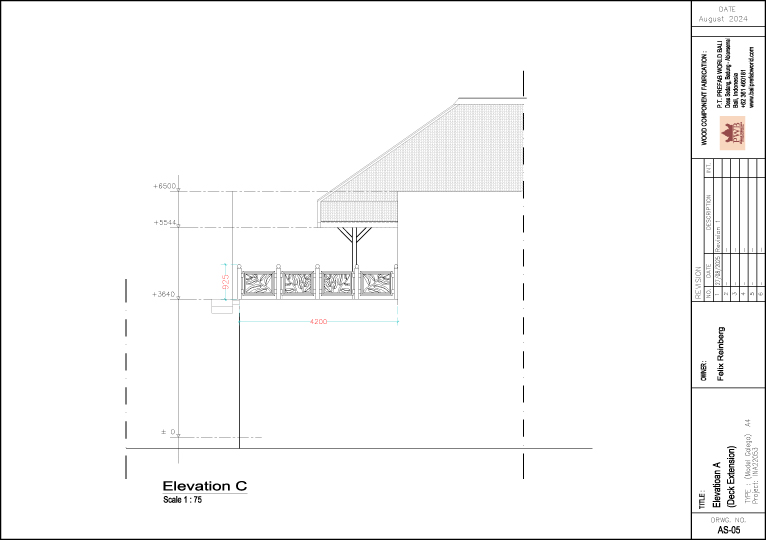

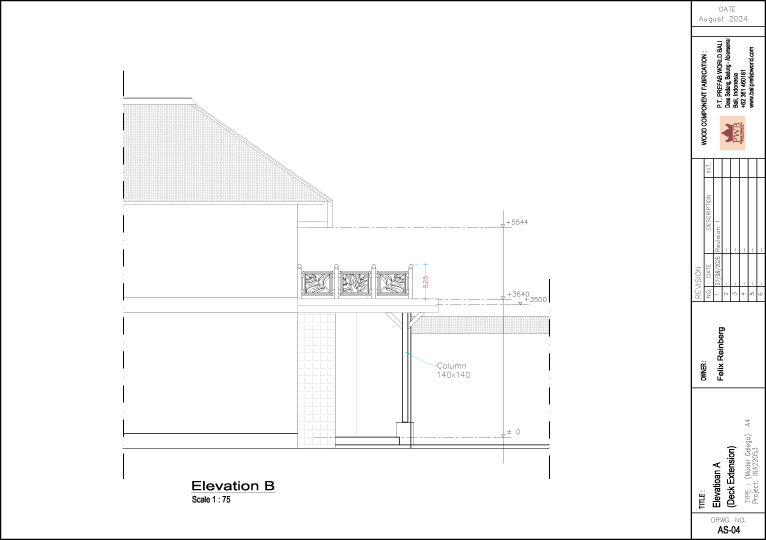

D. ISLAND OF BALI, INDONESIA, Renovation of the villa for Mr. Felix Reinberg, USA.

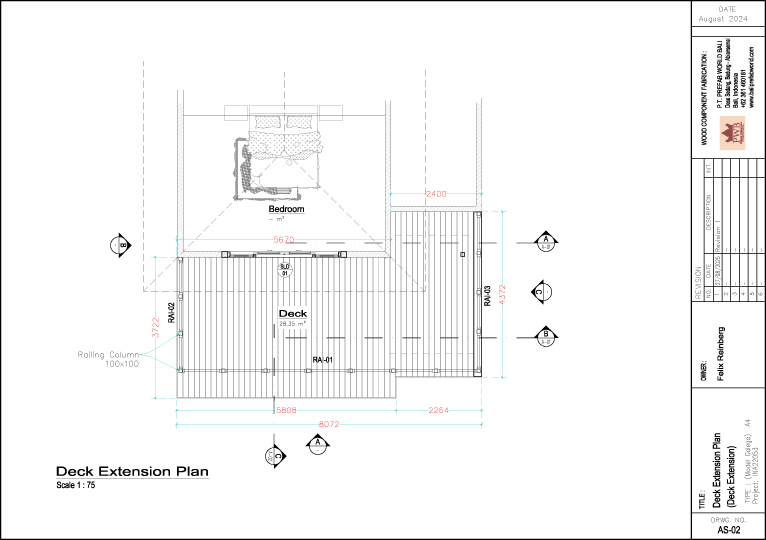

Addition of a balcony



Addition of a sliding door along the balcony



Overhaul of the main roof

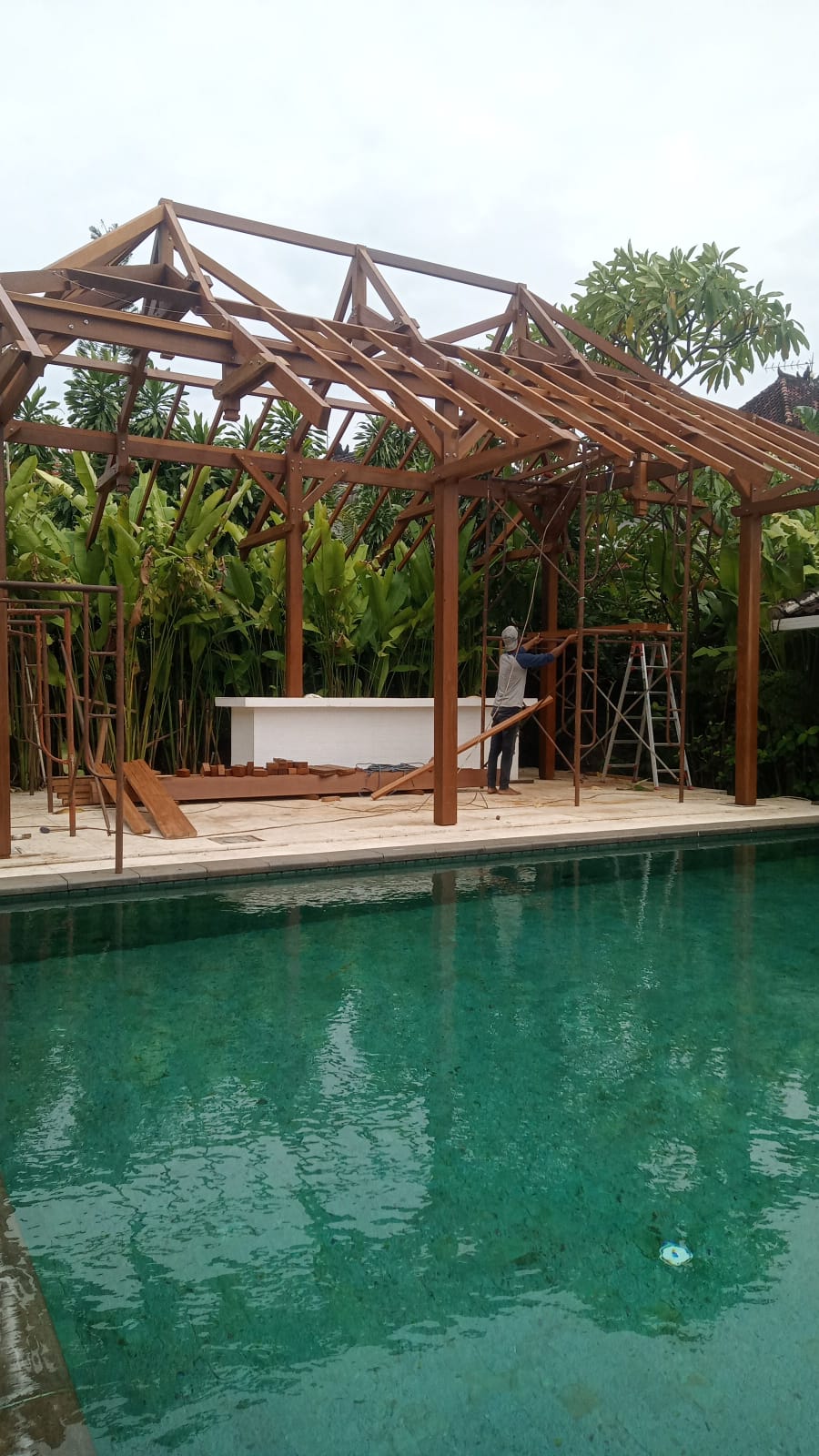

Addition of a gazebo
