ANYER

Current Local Date & Time in Bali



ANYER (50.3 m2, 541 sqft)
                     Code A-3Anyer

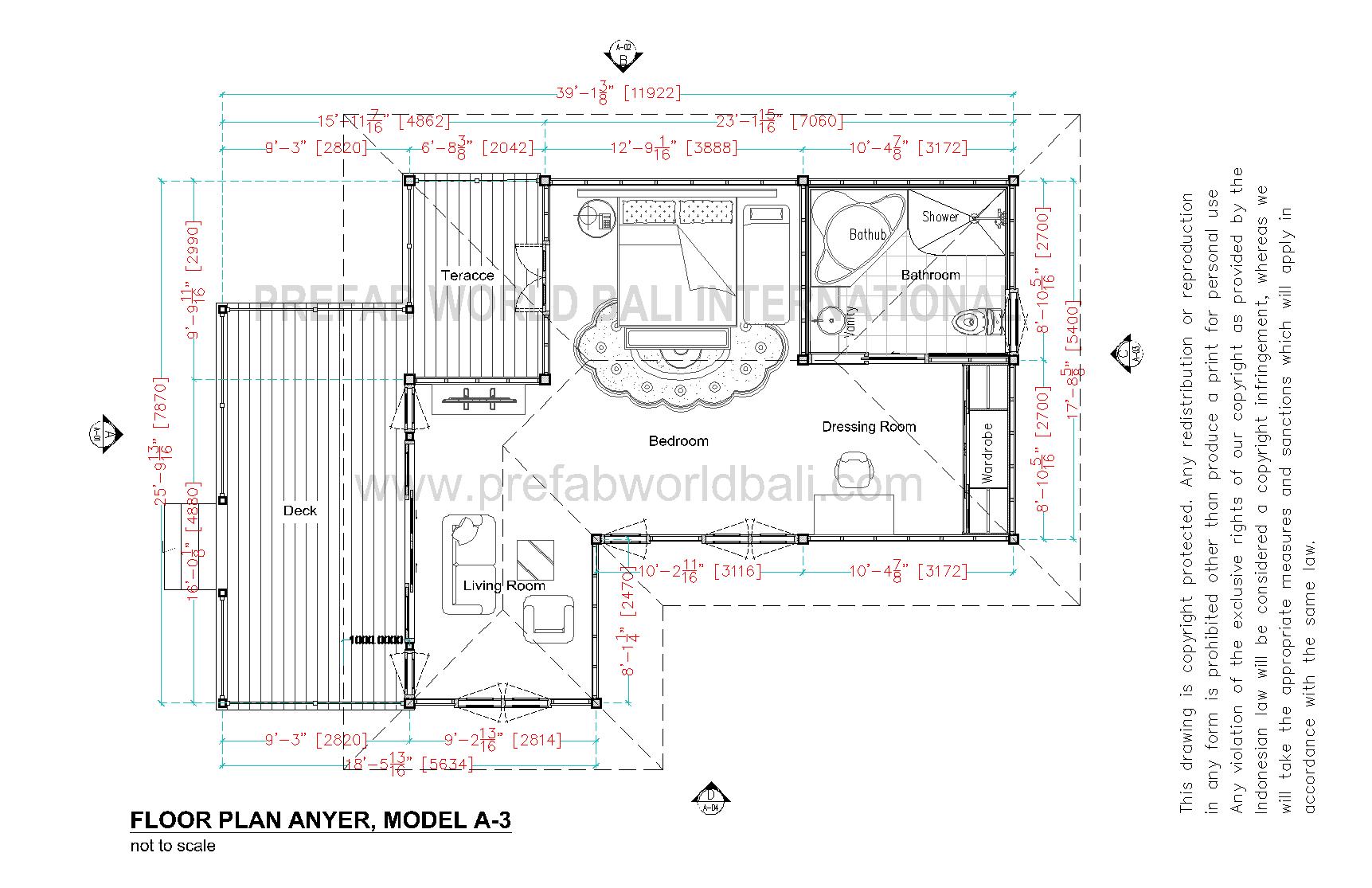

Anyer plan

Floor plan

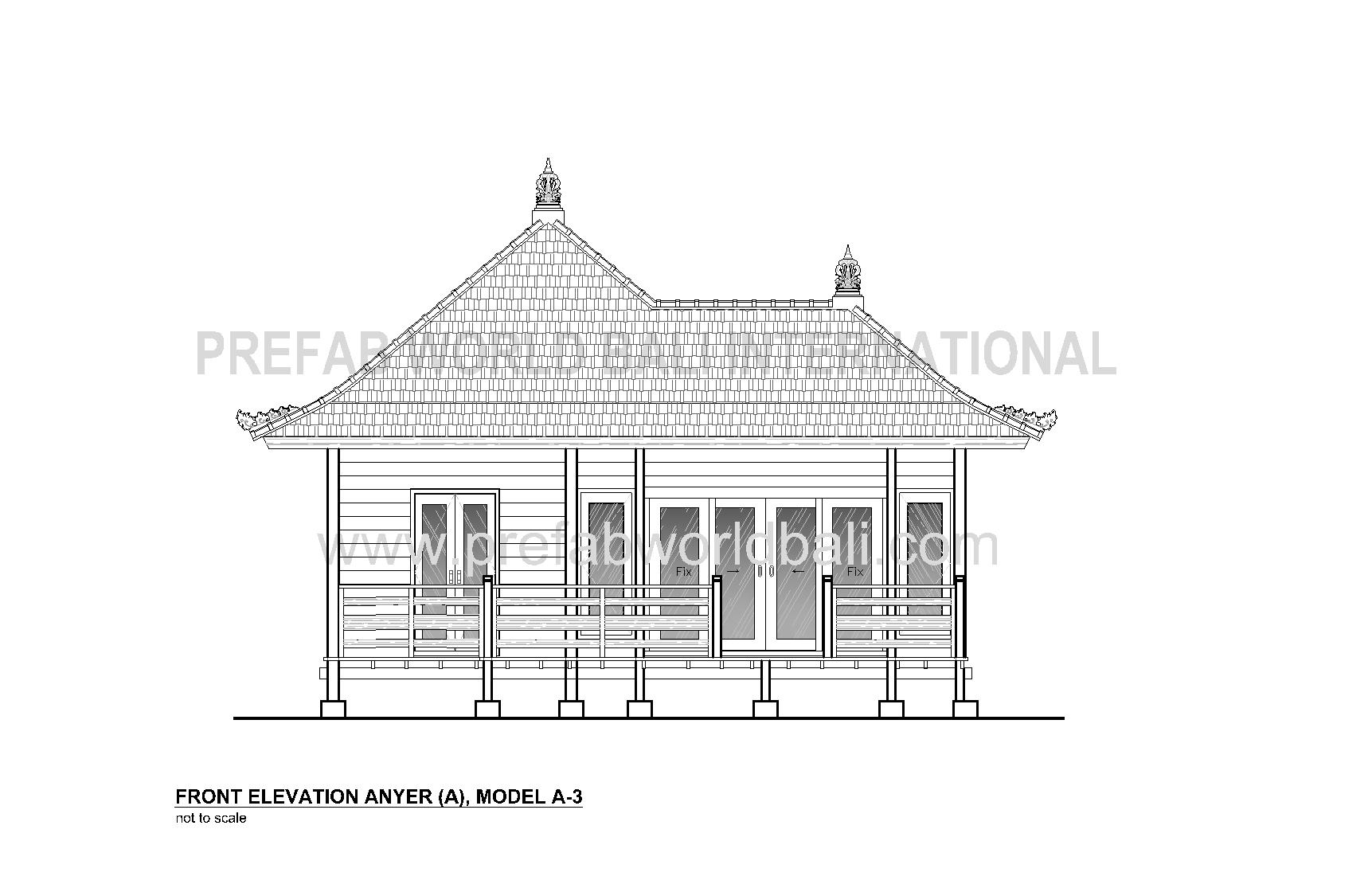

Anyer front elevation

Front elevation

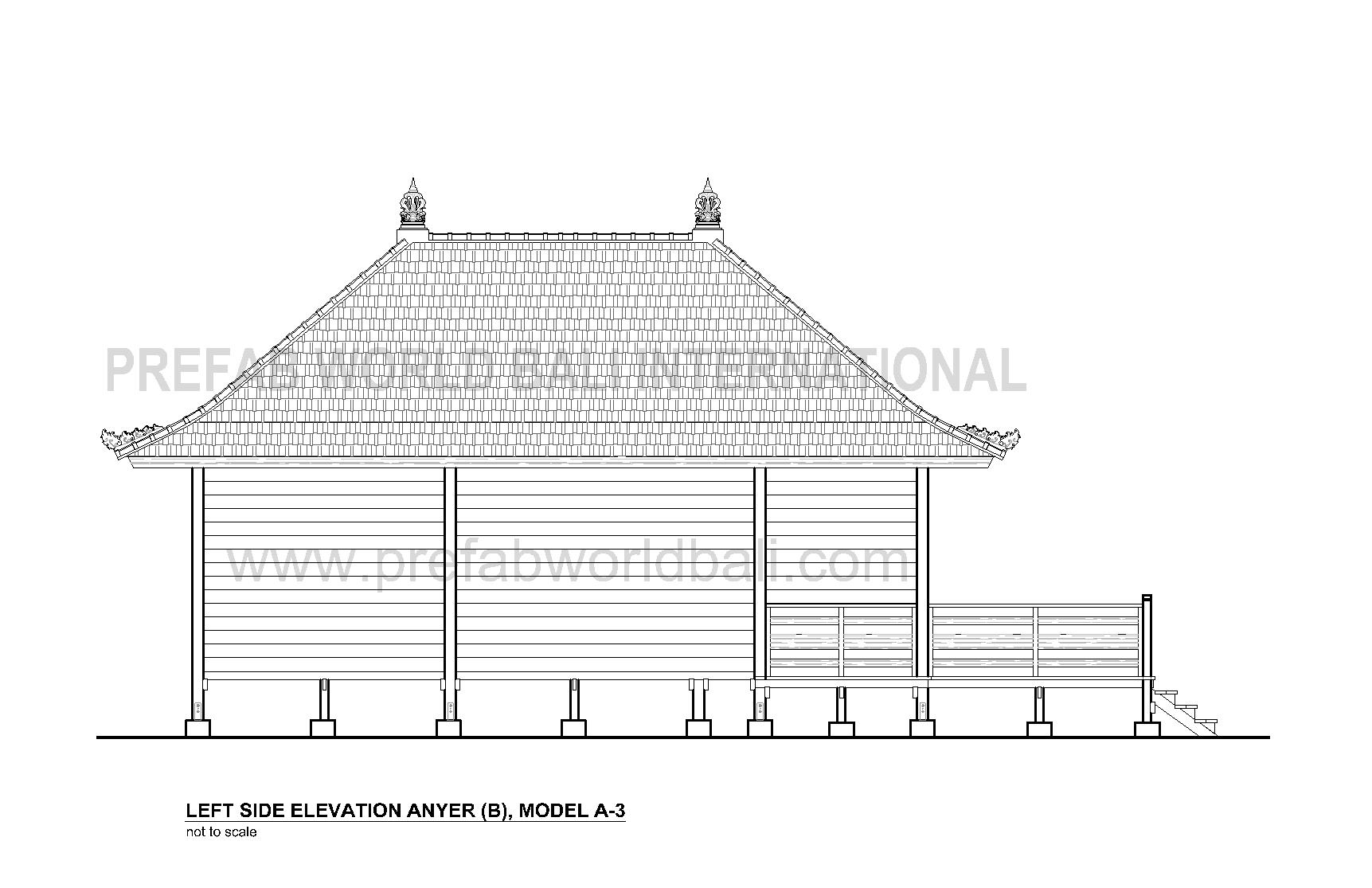

Anyer left elevation

Left side elevation

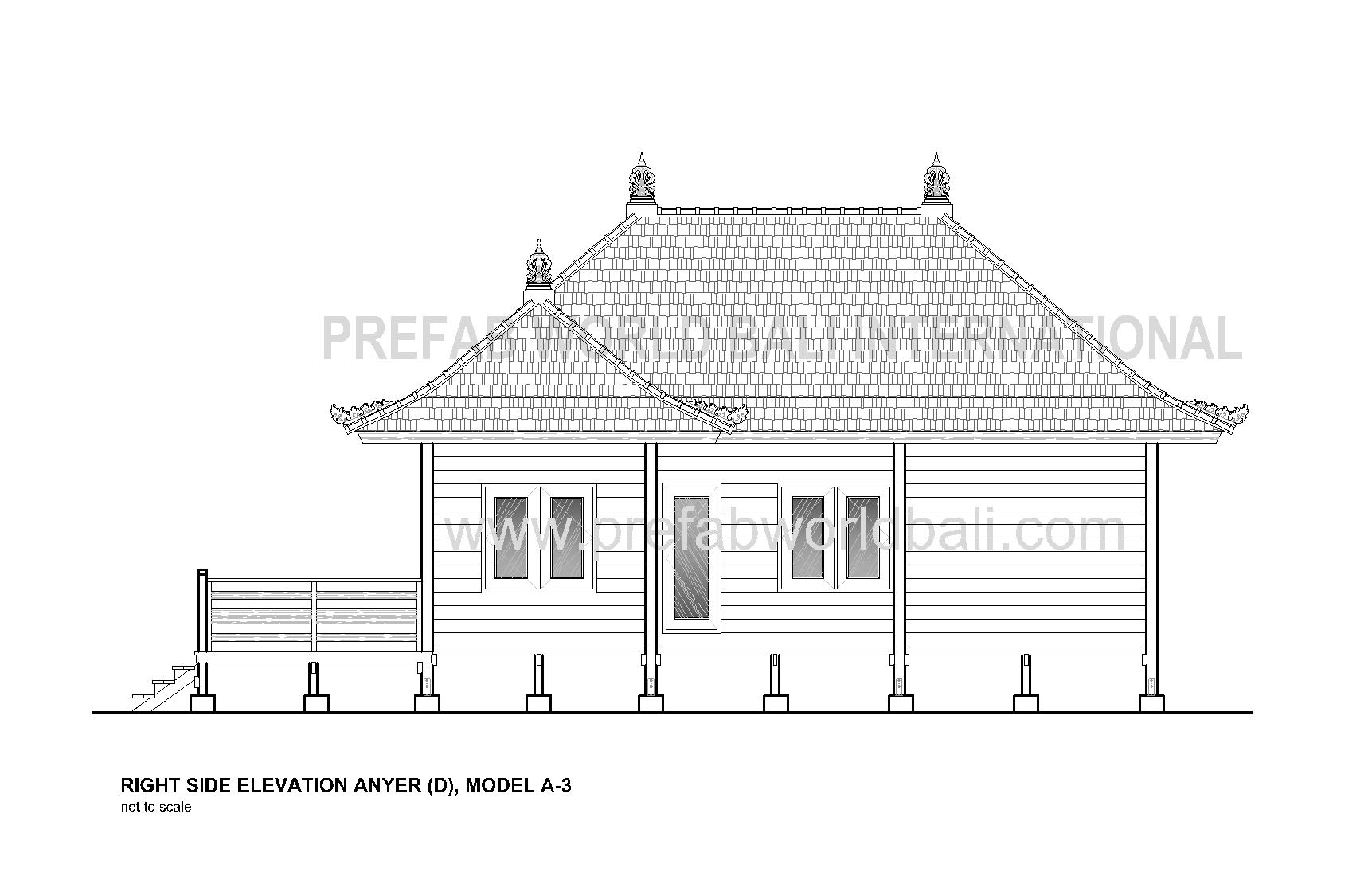

Anyer right elevation
Right side elevation

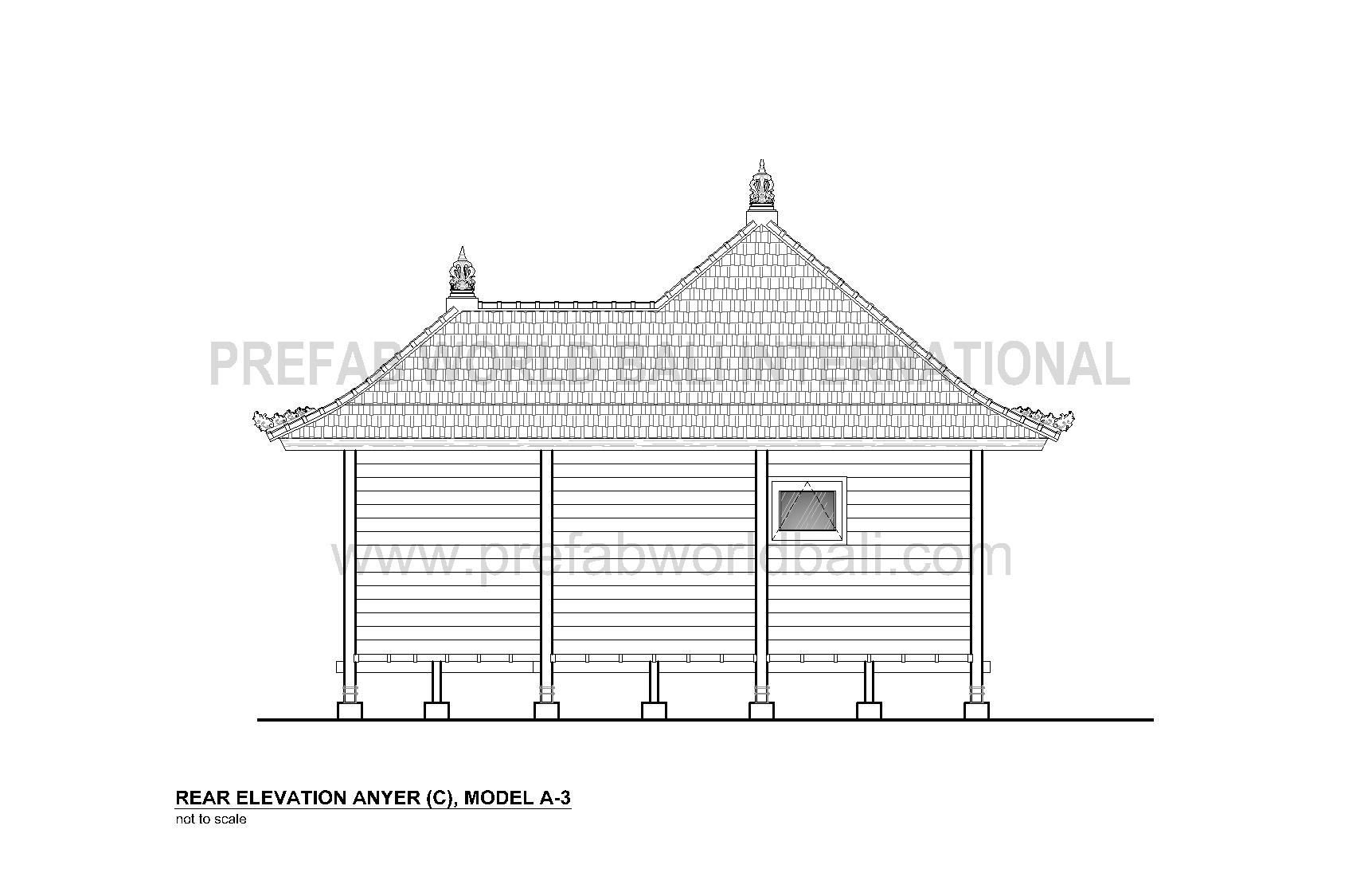

Anyer rear elevation

Rear elevation

A 3

Render

GENERAL DATA
Total net. interior sided area: 50.3 m2 (541 sqft)
Deck area: 17.8 m2 (192 sqft), Terrace area: 5.9 m2 (64 sqft)

Building footprint area: 8.13 x 12.36 meter (26' - 8 1/8" x 40' - 6 3/4")
Roof edge footprint area: 10.55 x 11.76 meter (34' - 7 3/8" x 38' - 7 1/8")
