BUNGA TELANG (39 m2, 420 sqft)
Code A-50
Code A-50

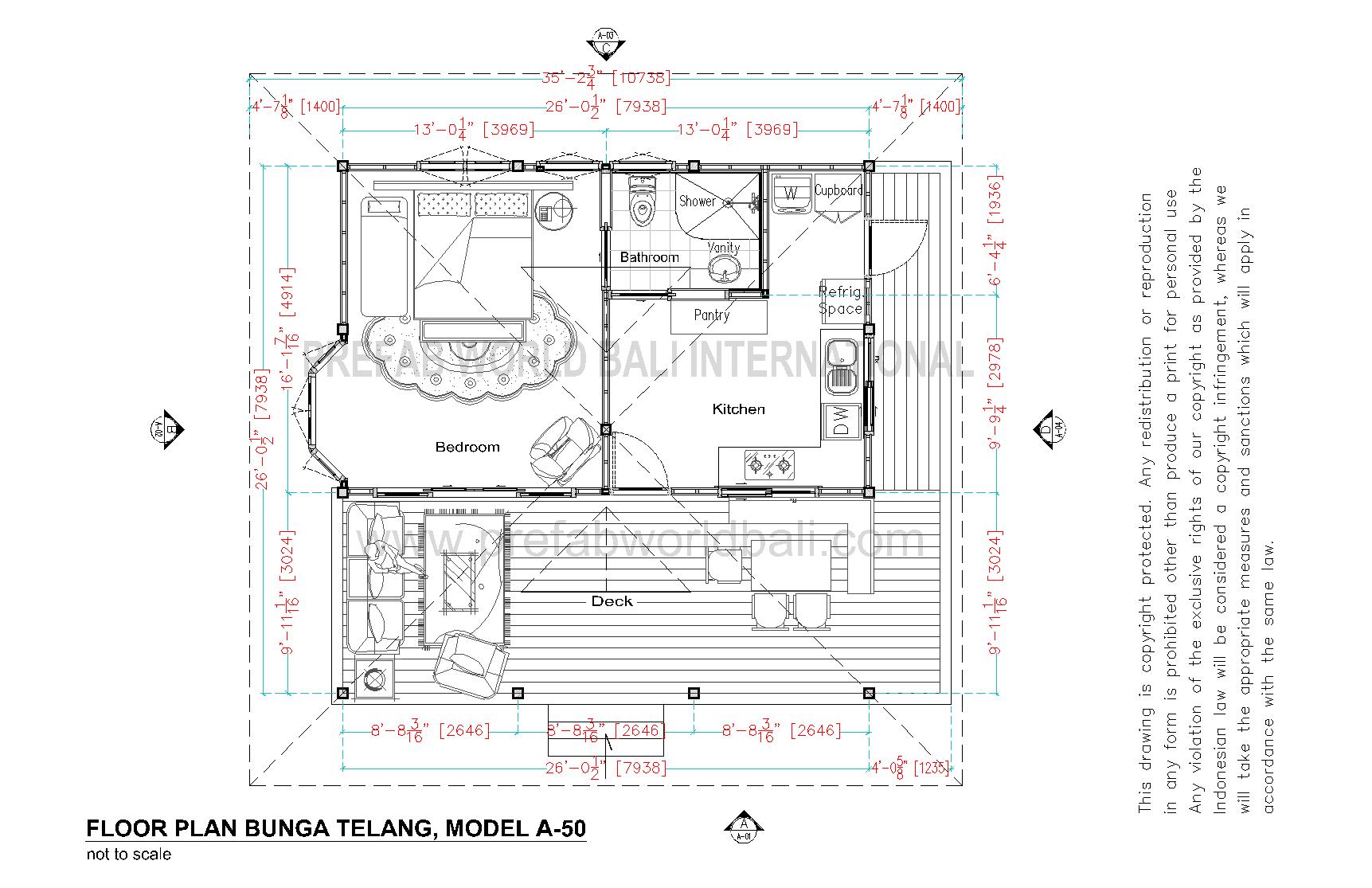

Floor plan

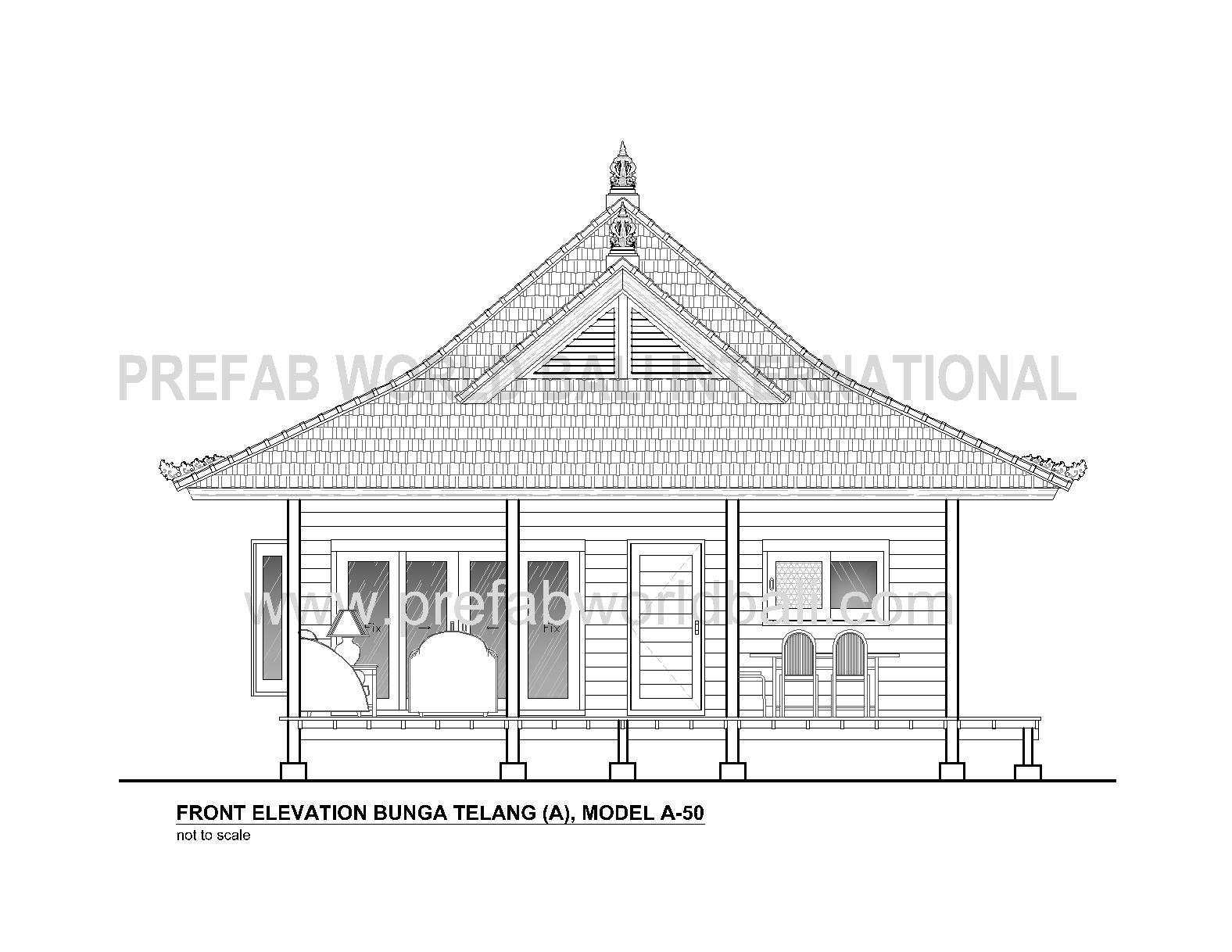

Front elevation

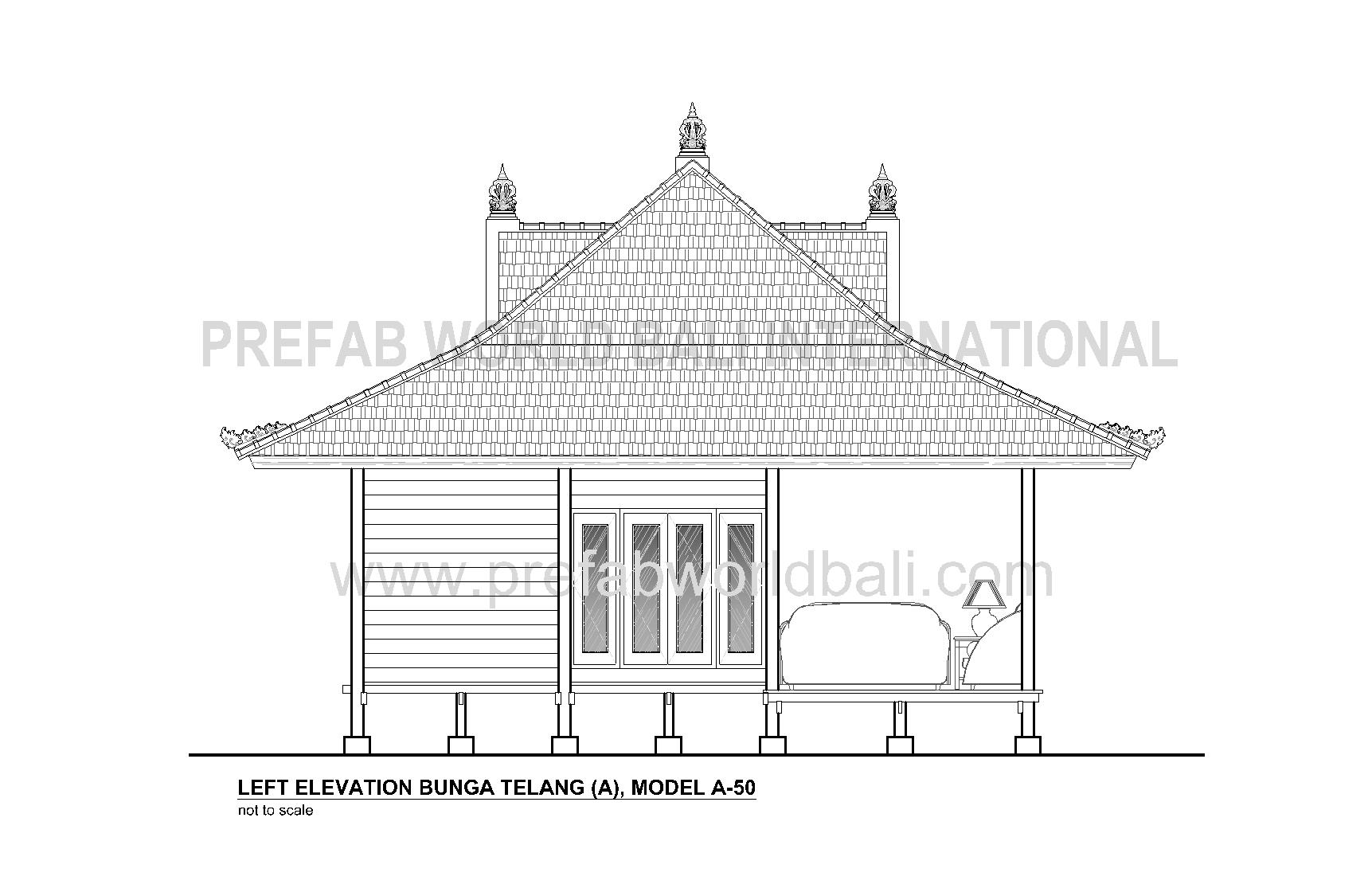

Left side elevation

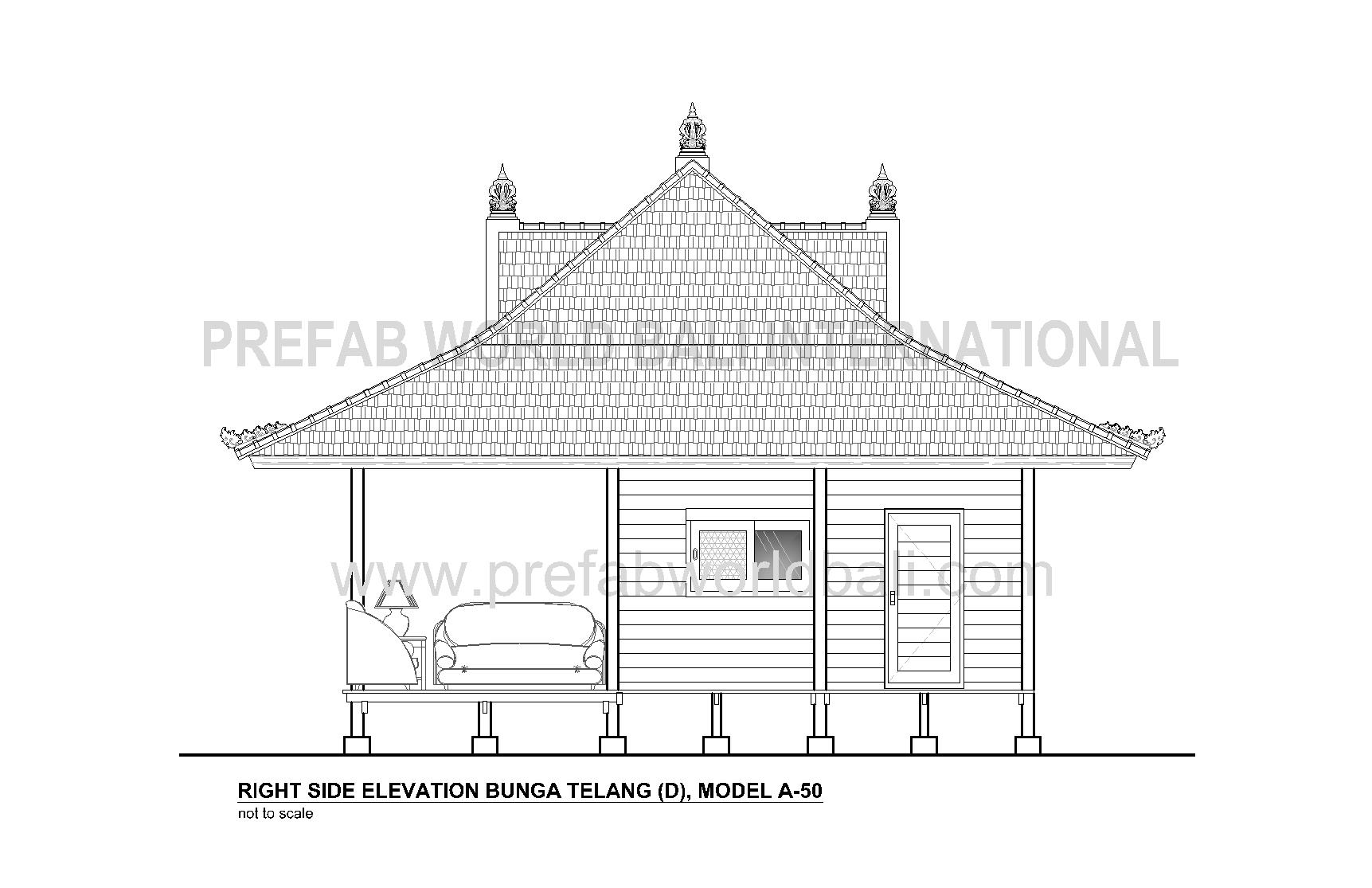

Right side elevation

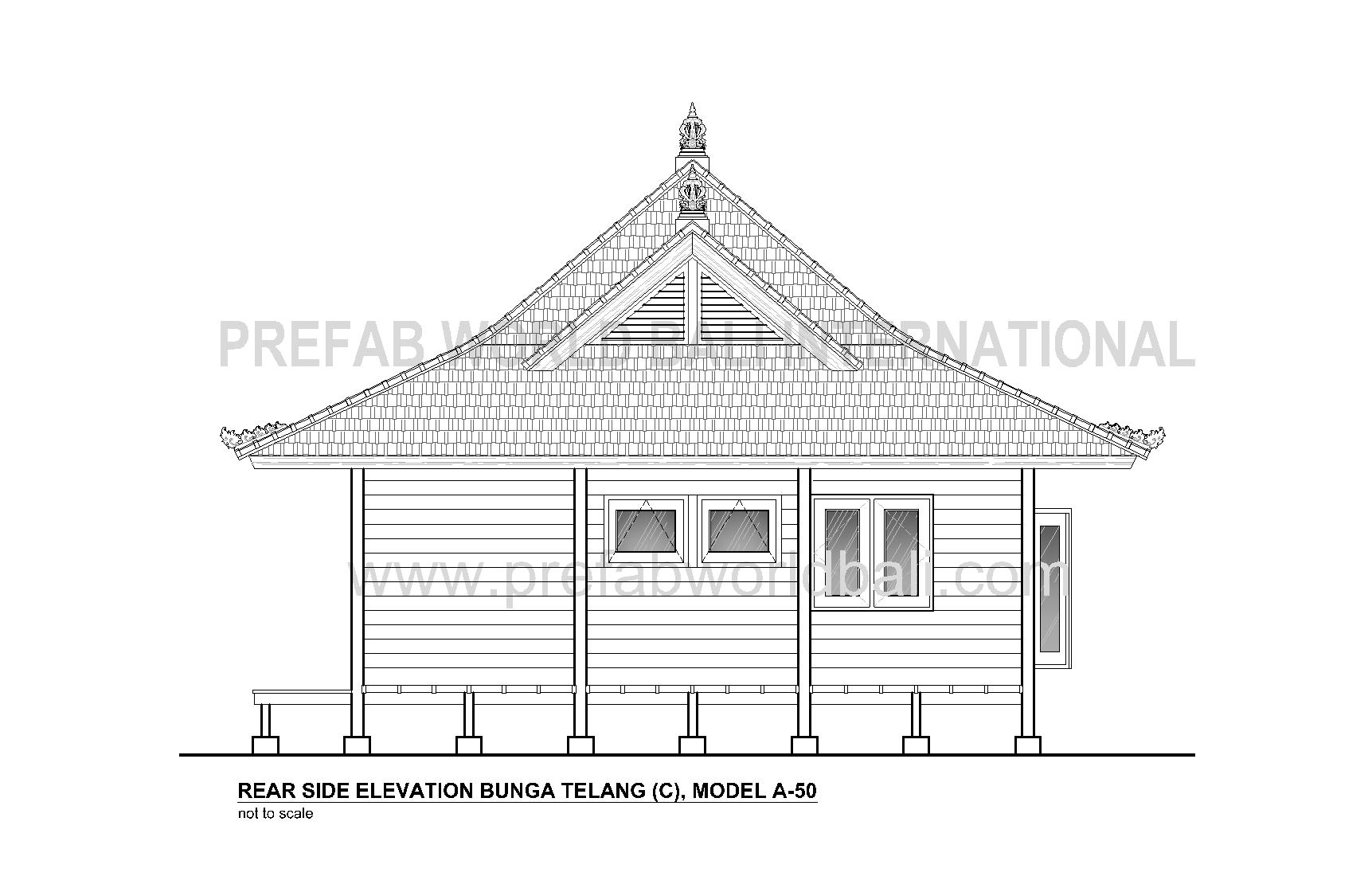

Rear elevation
Architect's impression
GENERAL DATA
Total net. interior sided area: 39 m2 (420 sqft)
Deck area: 24 m2 (258 sqft). Covered sidewalk: 12 m2 (129 sqft)
Building footprint area: 7.95 x 9.50 meter (31' - 1" x 26' - 2")
Roof edge footprint area: 11.00 x 11.00 meter (36' - 2" x 36' - 2")
