GERANIUM (50.4 m2, 538 sqft)
Code A-27A
Code A-27A

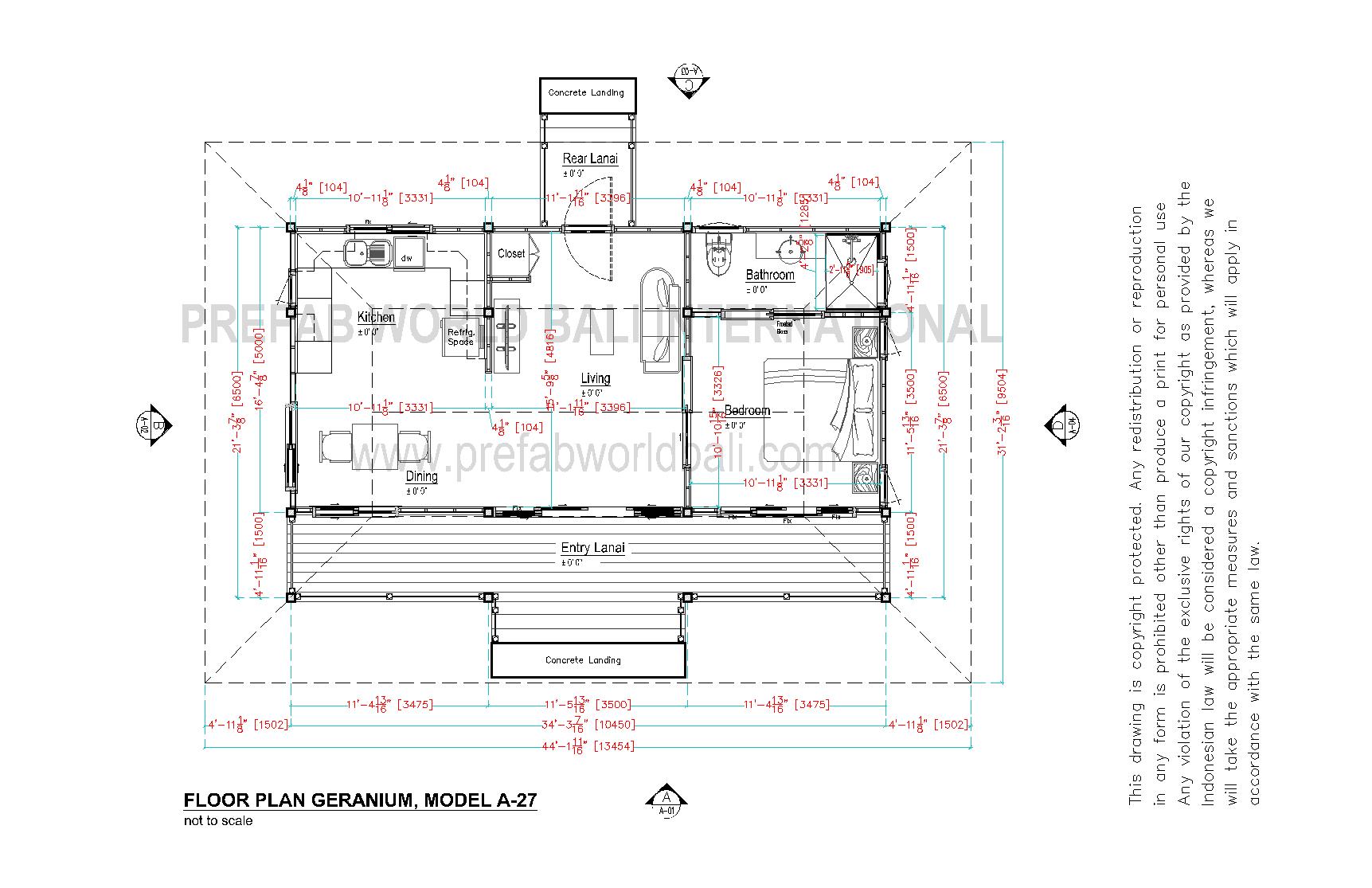

Floor plan

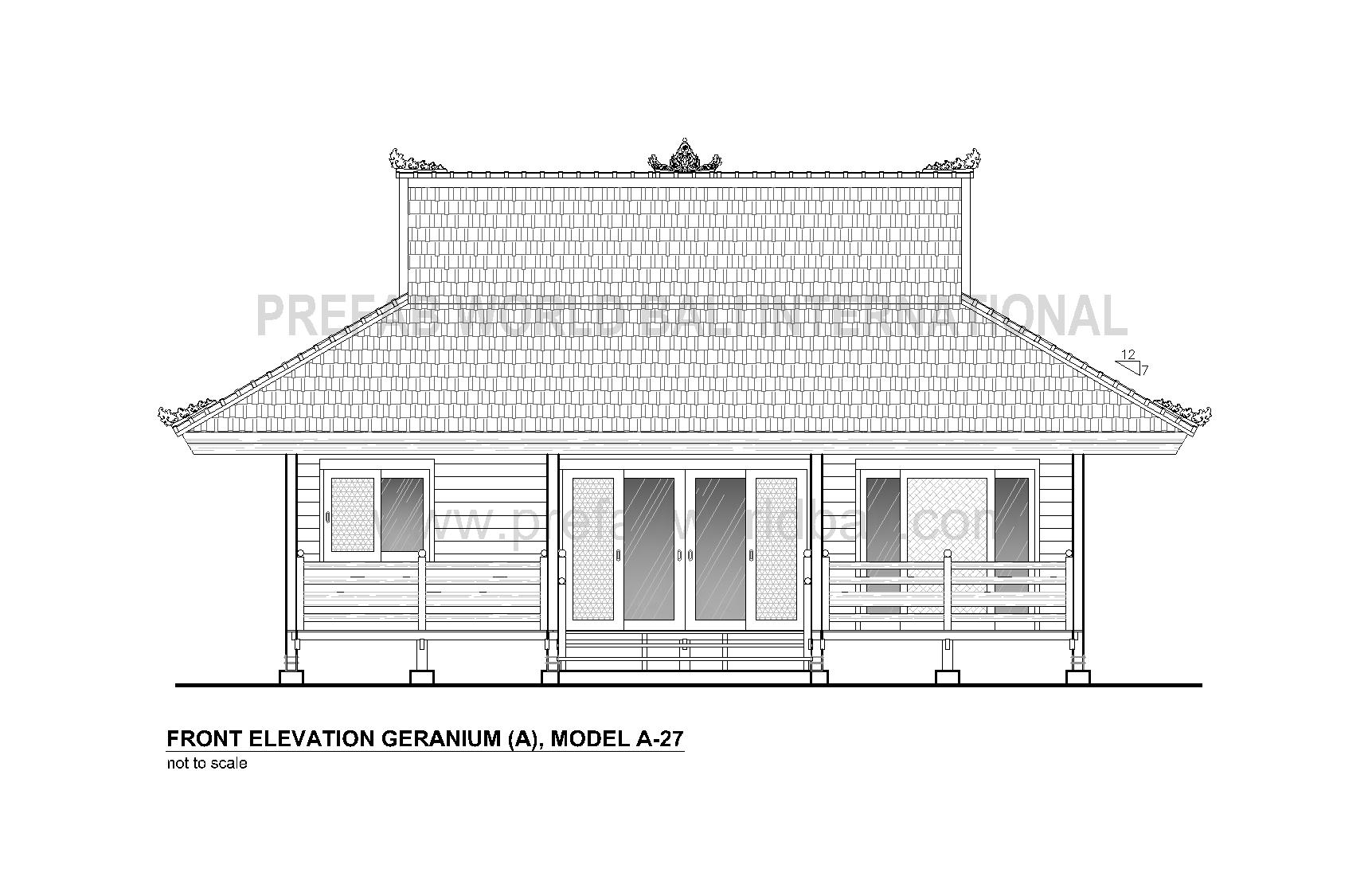

Front elevation

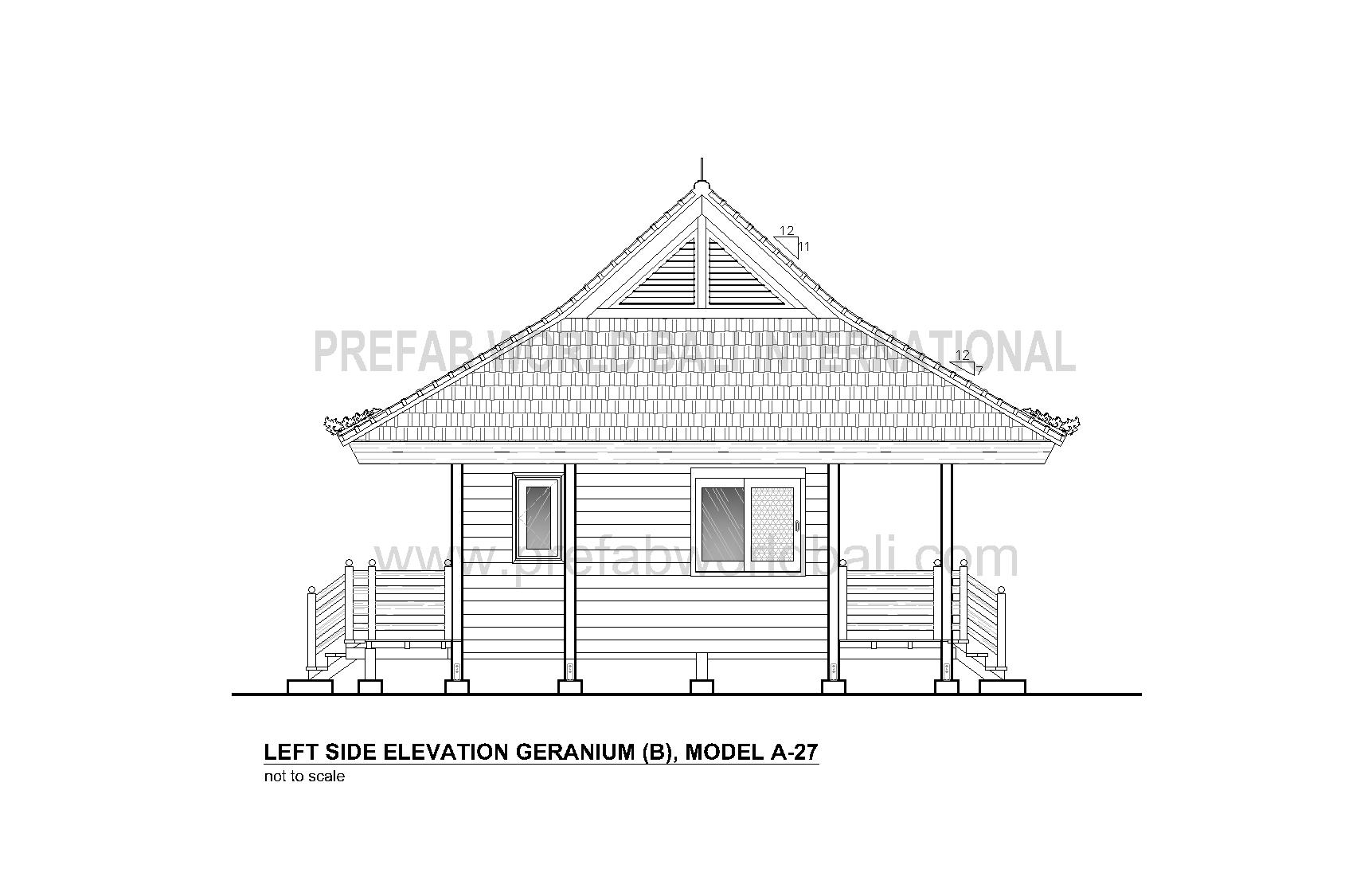

Left side elevation

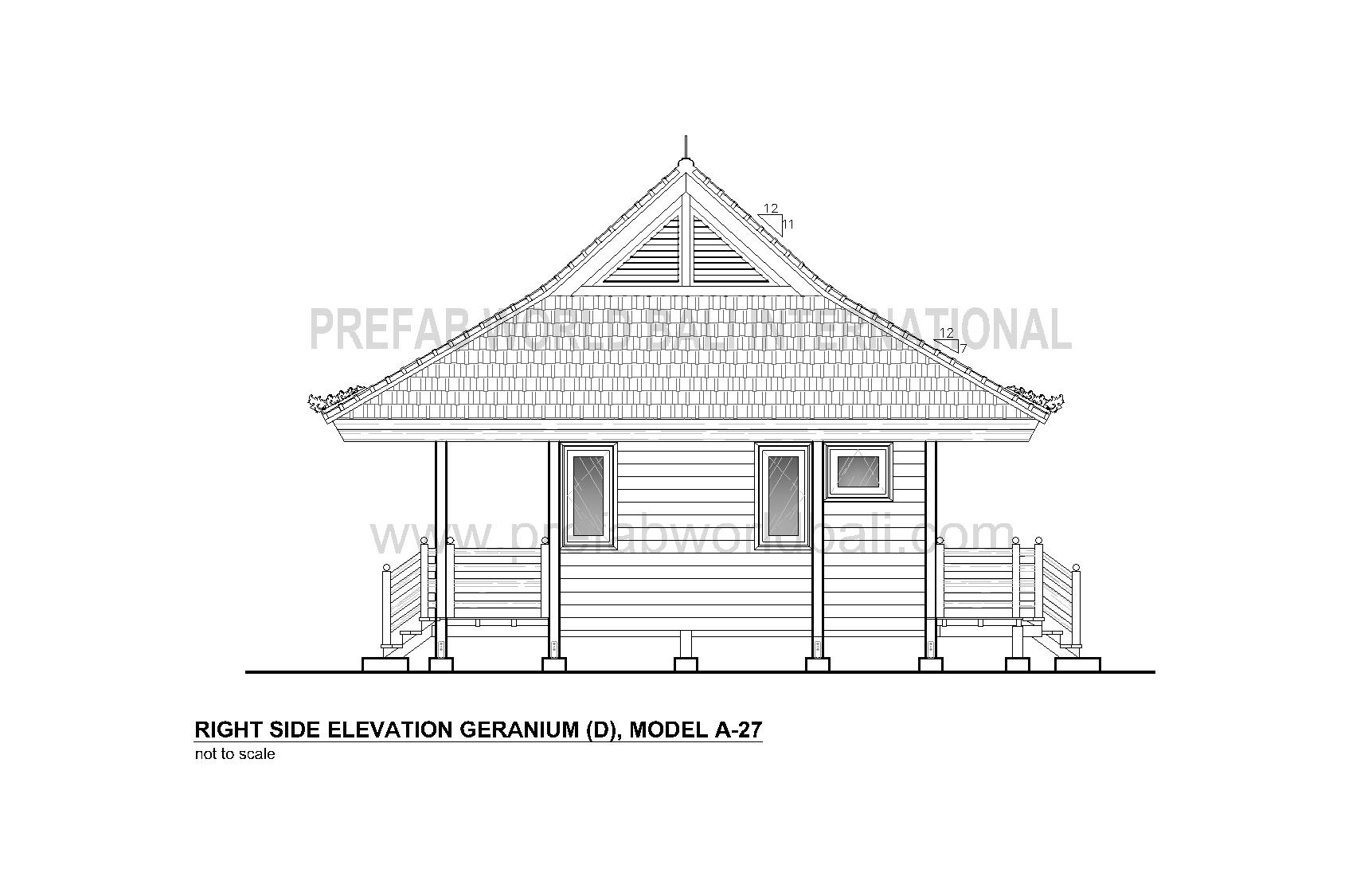

Right side elevation

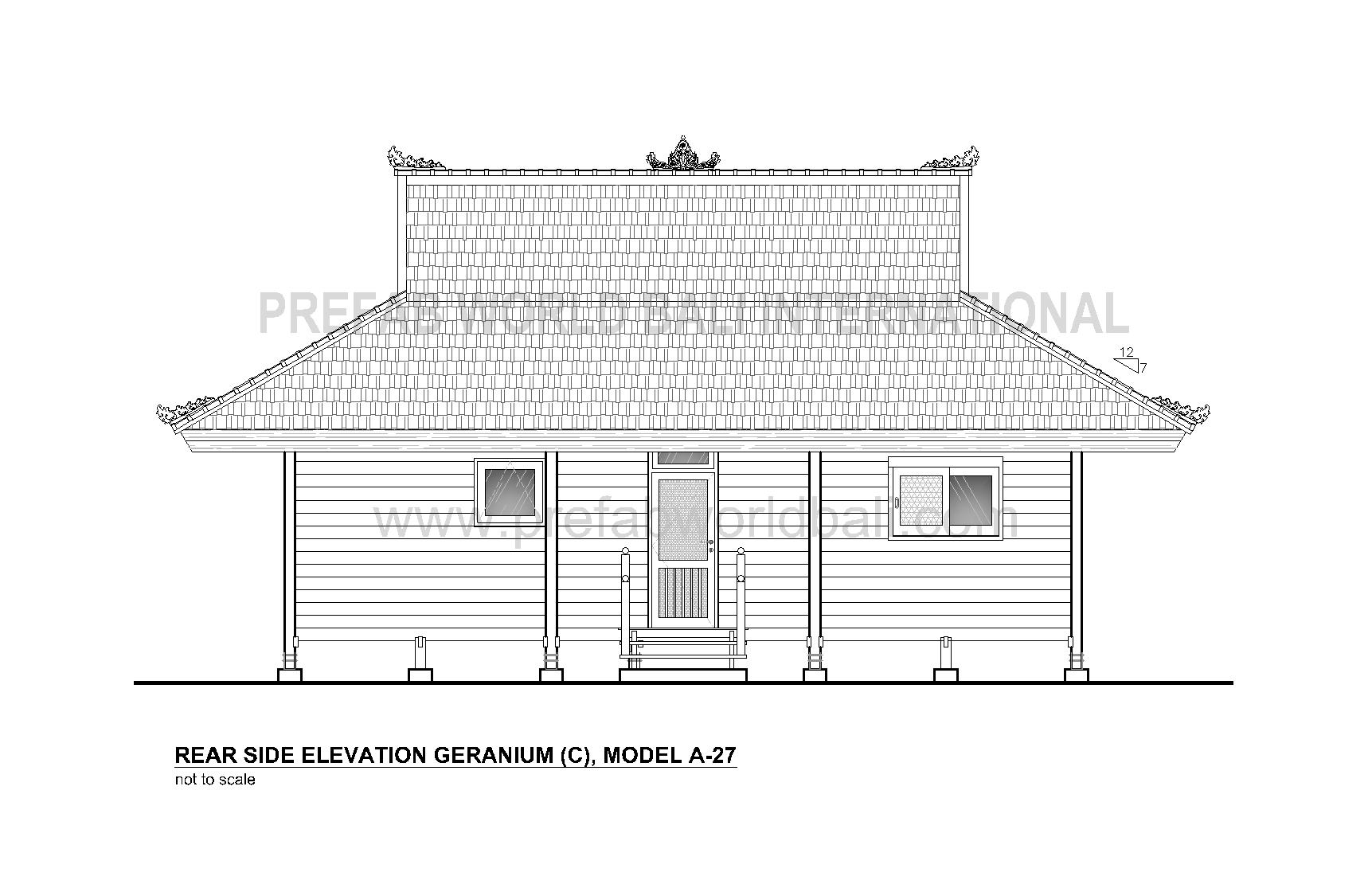

Rear elevation
The unit during pre-assembly
GENERAL DATA
Total net. interior sided area: 50 m2 (538 sqft)
Deck area: 14.5 m2 (156 sqft)
Building footprint area: 10.7 x 7.2 meter (35' - 1 1/4" x 23 - 7 1/2")
Roof edge footprint area: 12.08 x 9.7 meter (39' - 7 5/8" x 31' - 9 1/2")
Enquire for the price list download code
Enquire for the price list download code
