GLADIOLUS (50.6 m2, 545 sqft)
Code A-40
Code A-40

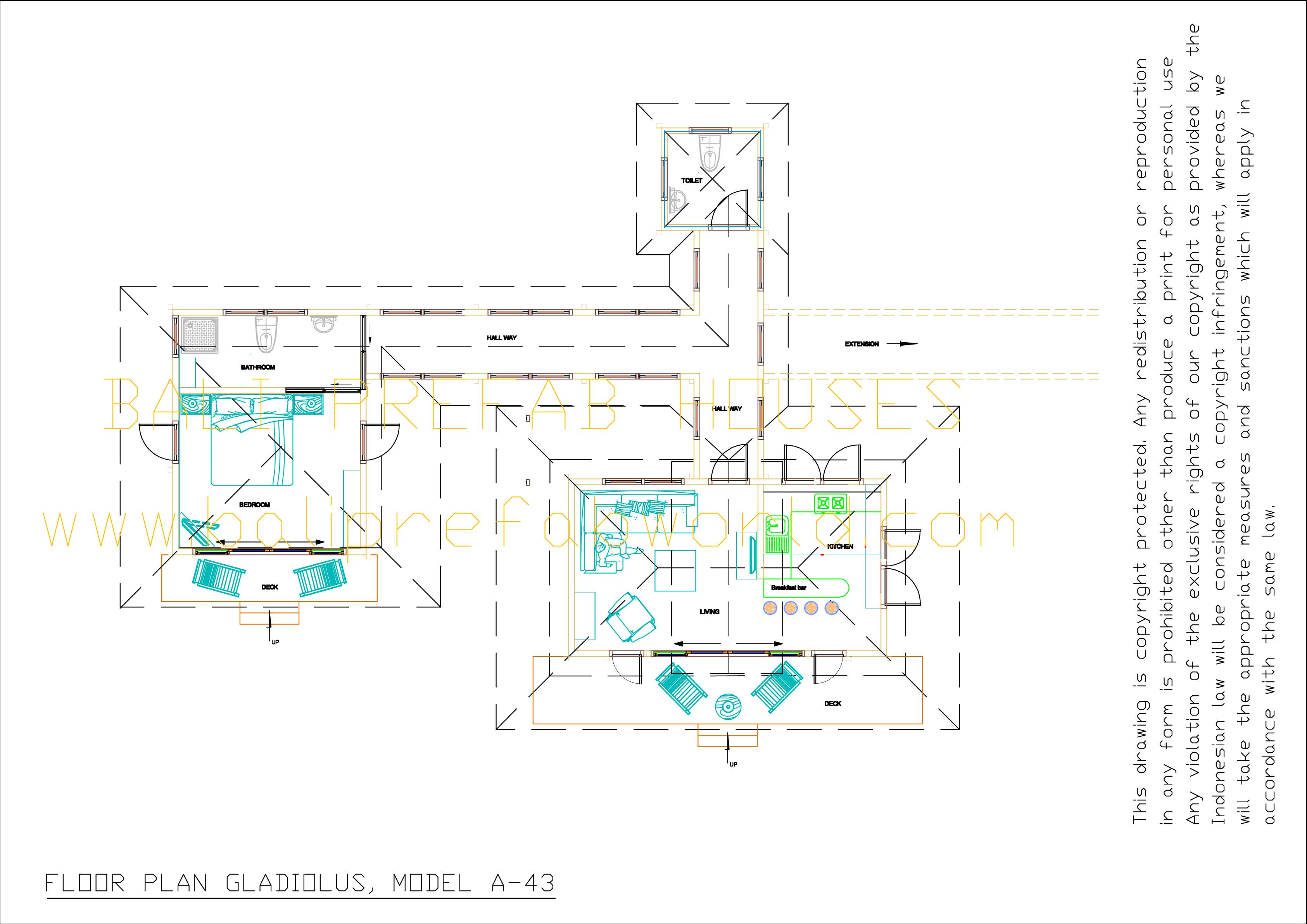

Floor plan
Front elevation

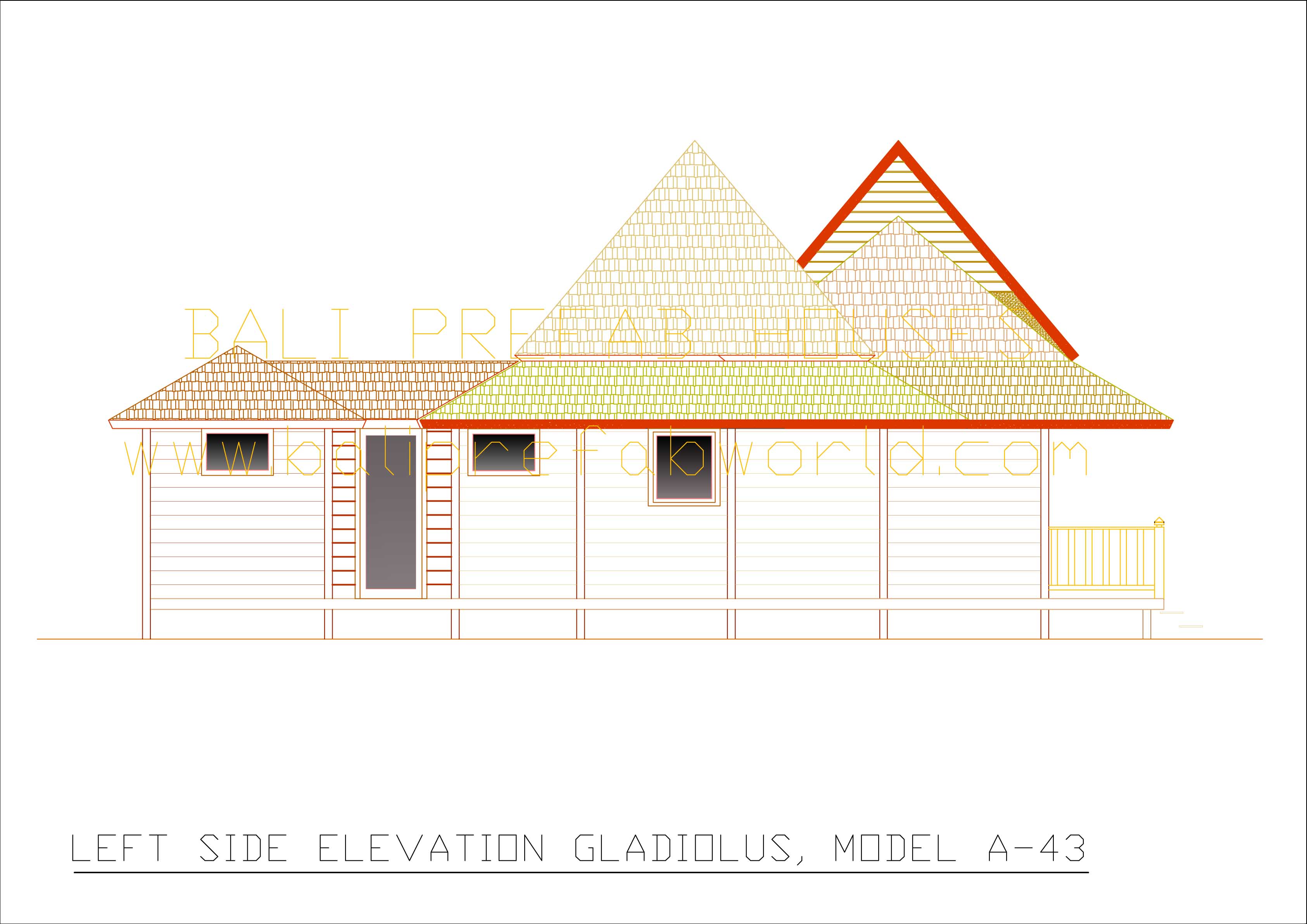

Left side elevation

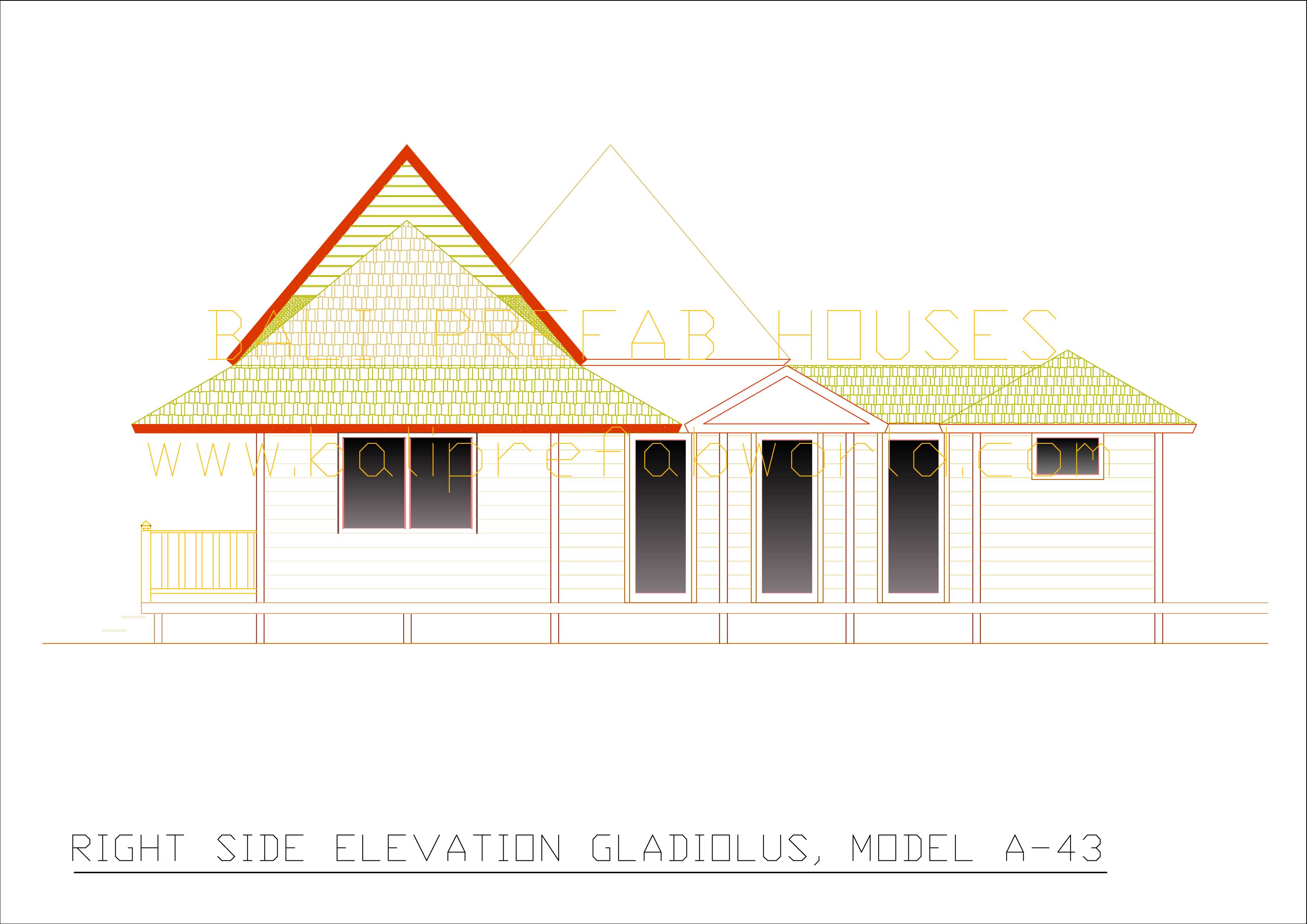

Right side elevation

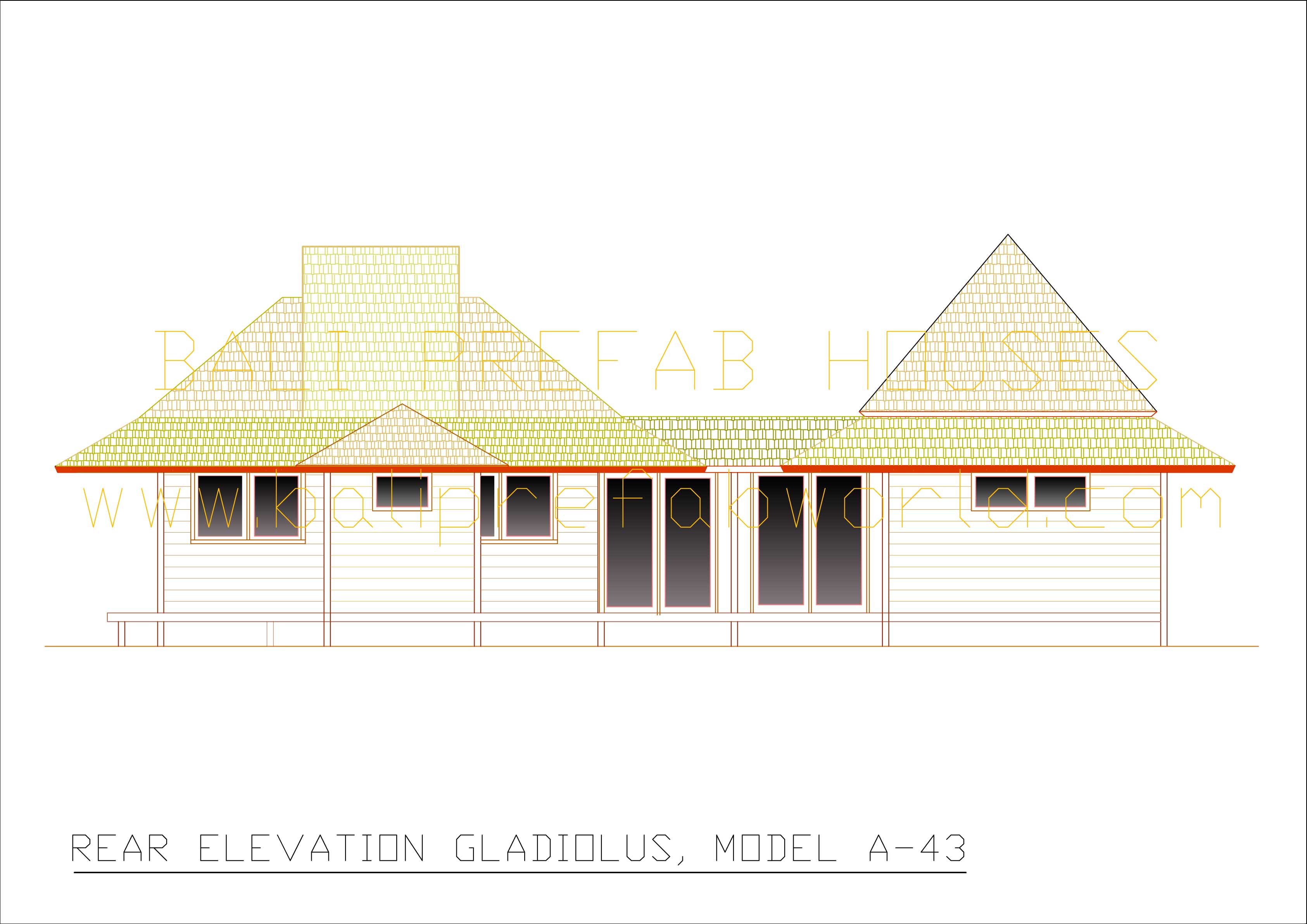

Rear elevation
GENERAL DATA
Total net. interior sided area living section: 27.3 m2 (294 sqft)
Total net. interior sided area bedroom section: 23.3 m2 (251 sqft)
Exterior toilet: 5m2 (54 sqft)
Hallway: 17.3 m2 (186 sqft)
Deck area in front of living: 12.7 m2 (137 sqft)
Deck area in front of bedroom: 4.9 m2 (53 sqft)
Enquire for the price list download code
