SAFFRON-1
Ground floor: (39 m2 , 420 sqft)
2nd floor: 31.9 m2, 343 sqft
Code A-7A
Ground floor: (39 m2 , 420 sqft)
2nd floor: 31.9 m2, 343 sqft
Code A-7A

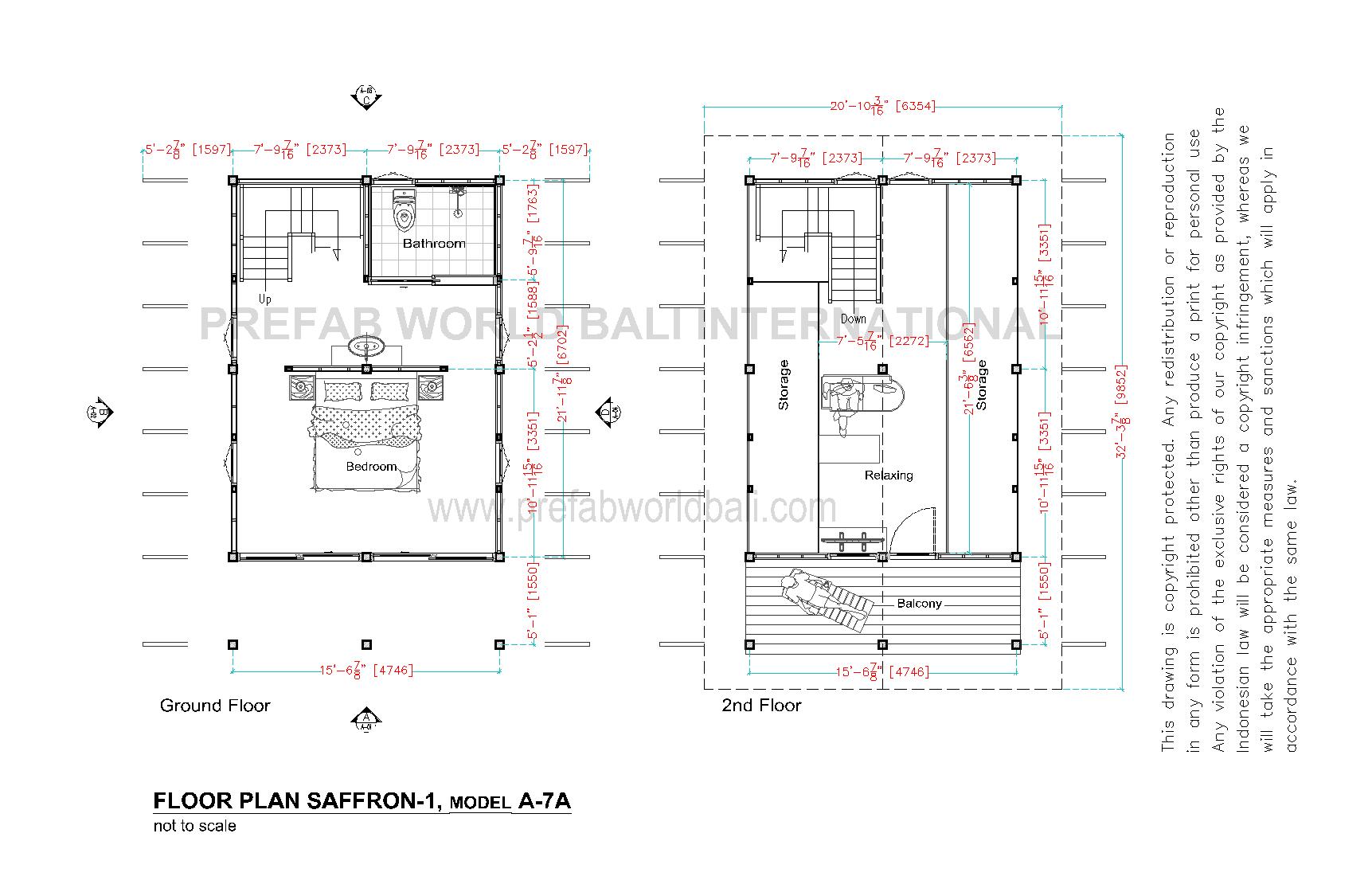

Floor plan

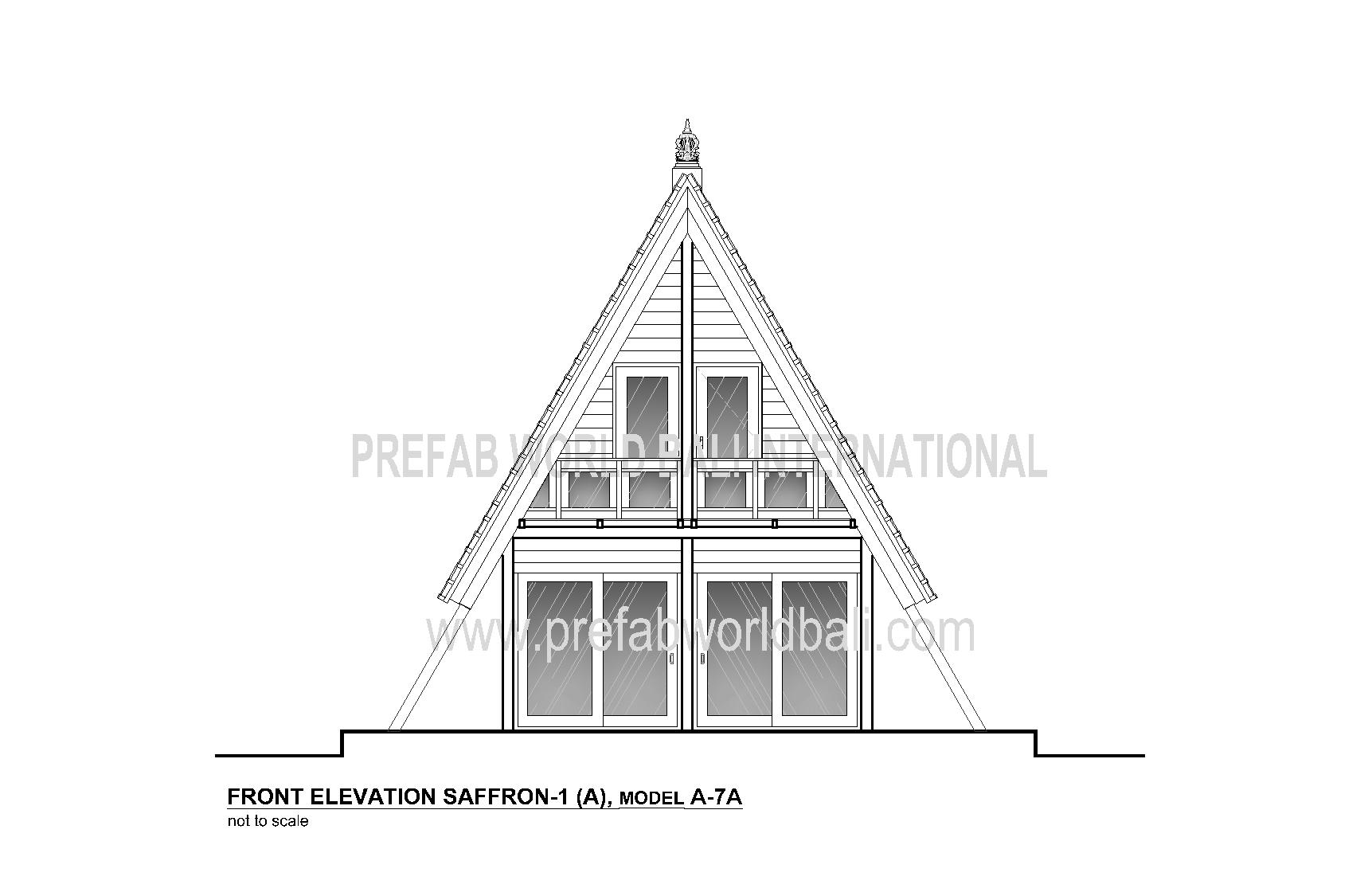

Front elevation

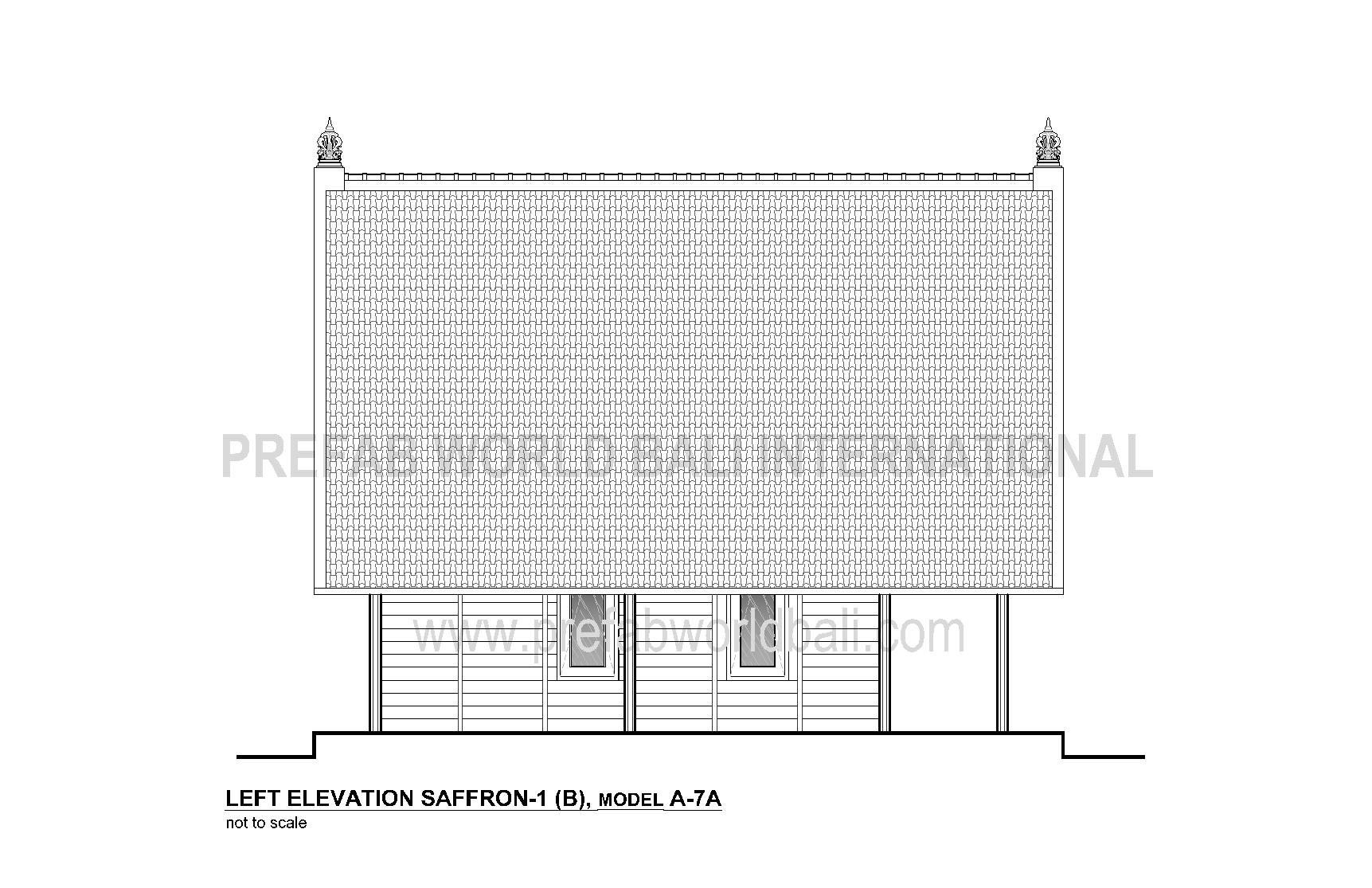

Left side elevation

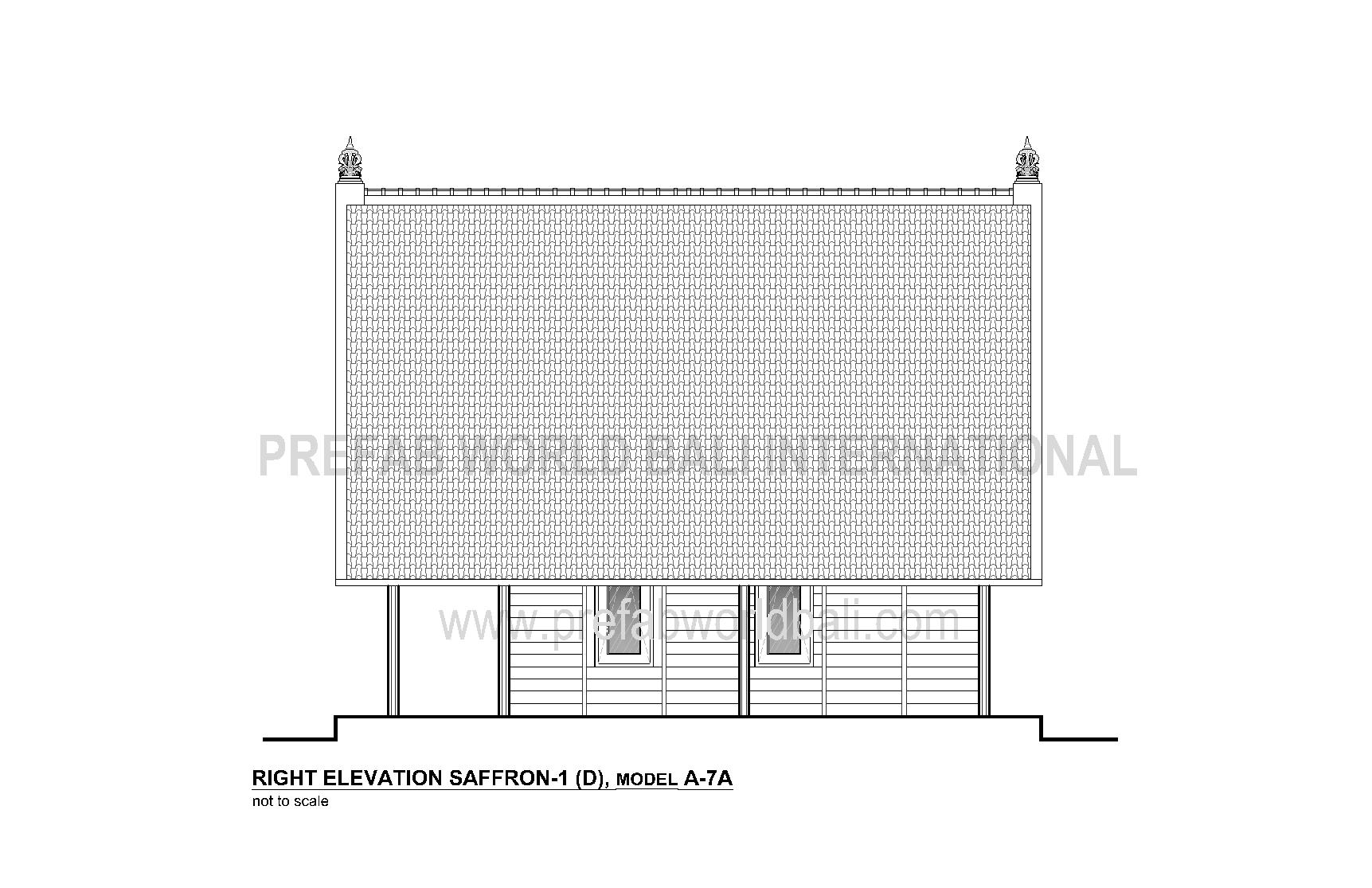

Right side elevation

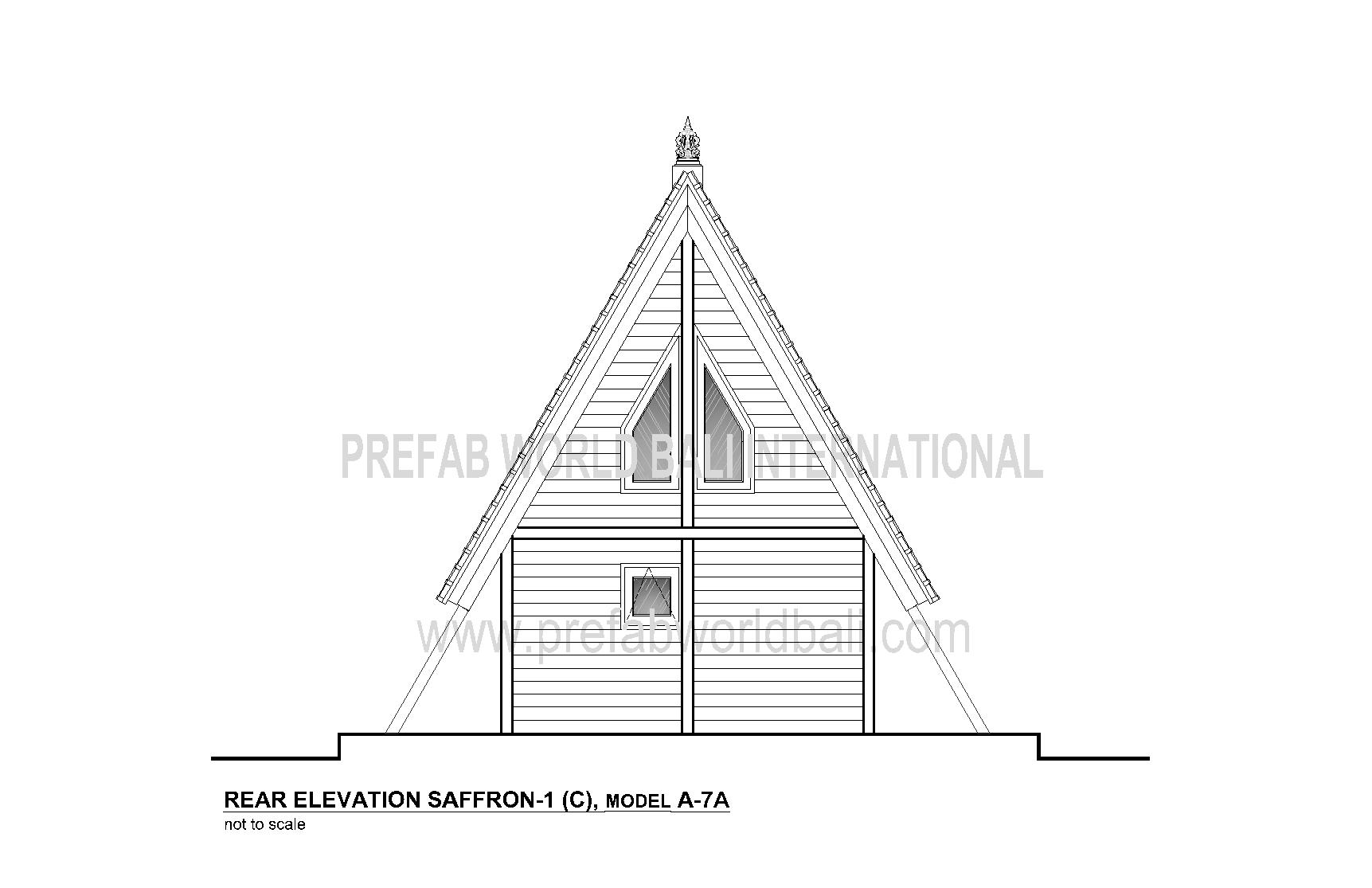

Rear elevation
GENERAL DATA
Total net. interior sided area:
Ground floor 39 m2 (420 sqft),
Second floor: 31.9 m2 (343 sqft)
Balcony (2nd floor only): 7.4 m2 (80 sqft)
Building footprint area: 8.35 x 9.10 meter (27' - 8 1/8" x 29' - 10 1/4")
Roof edge footprint area: 6.38 x 9.18 meter (20' - 11 1/4" x 30' - 1 1/4")
Enquire for the price list download code
