SYRING (18.6 m2, 200 sqft)
Code A-11

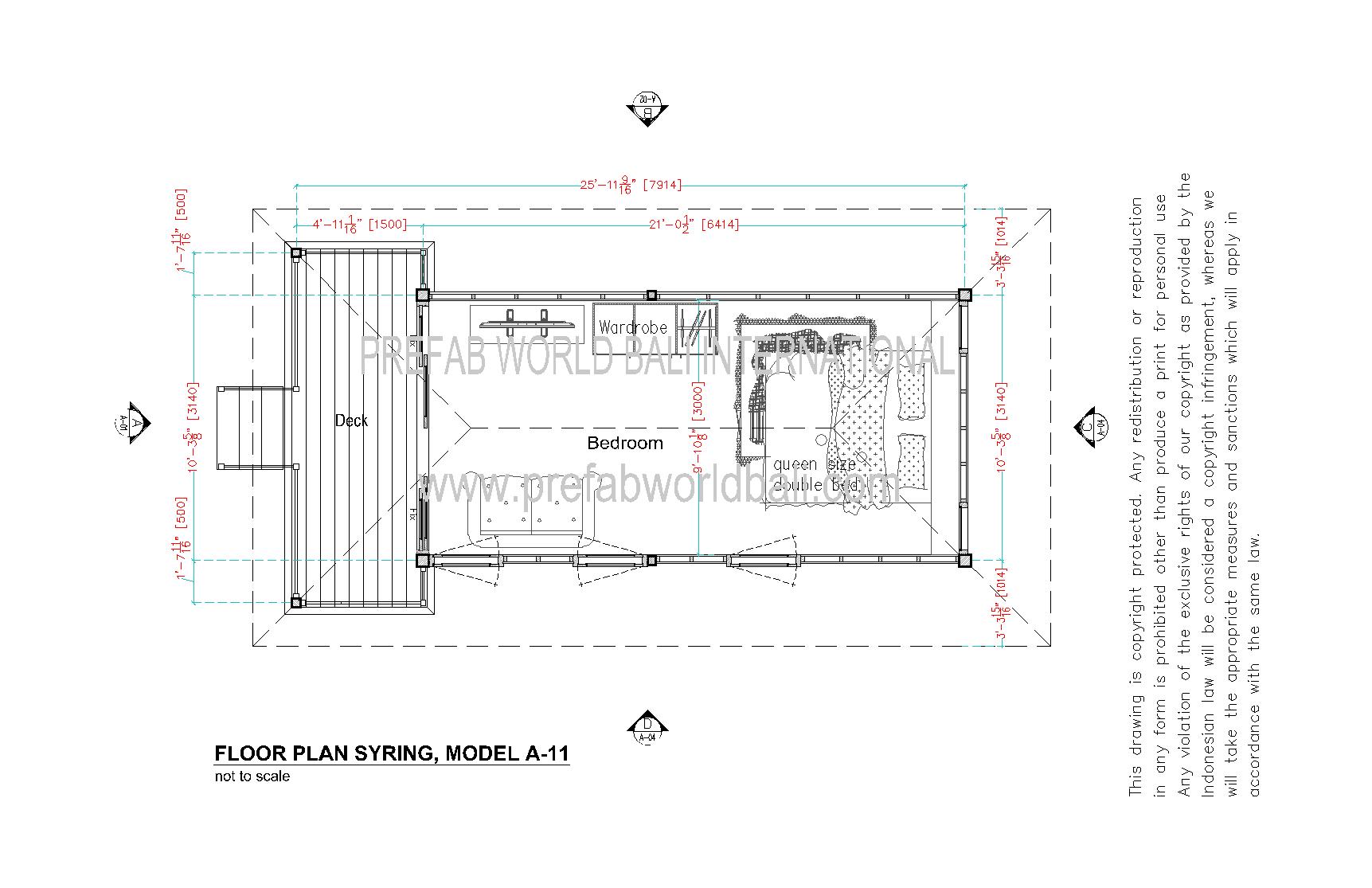

Floor plan

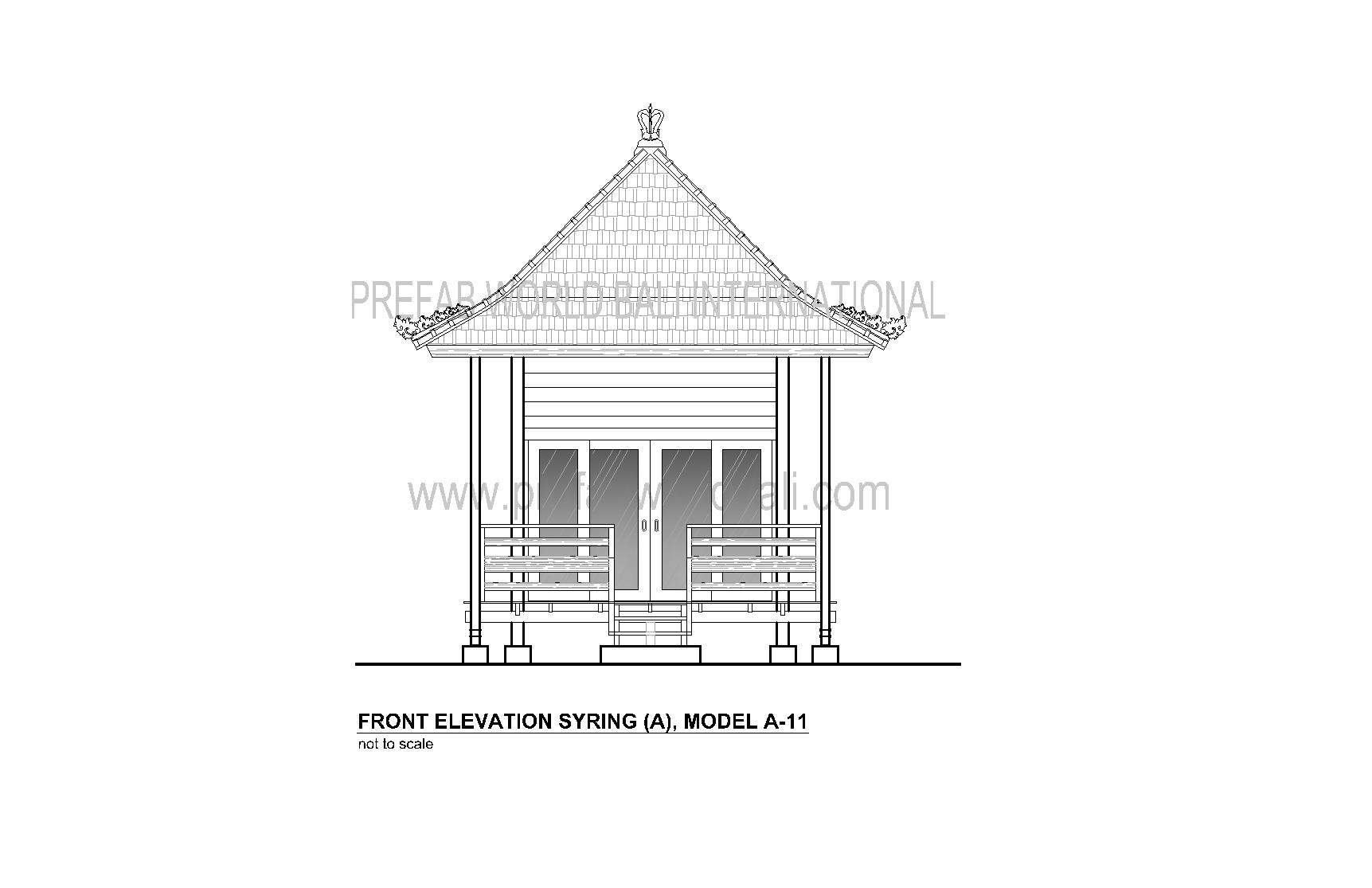

Front elevation

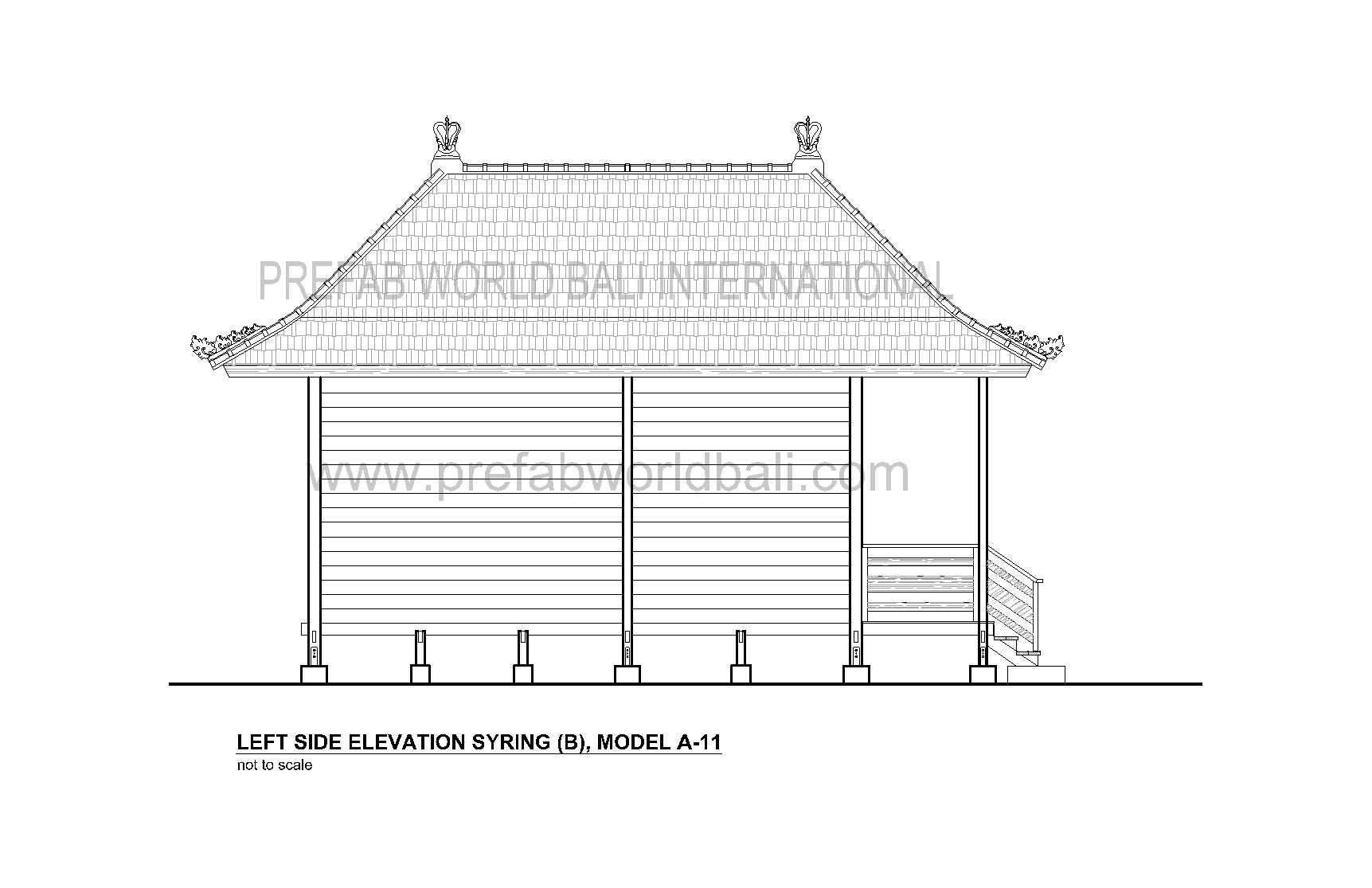

Left side elevation

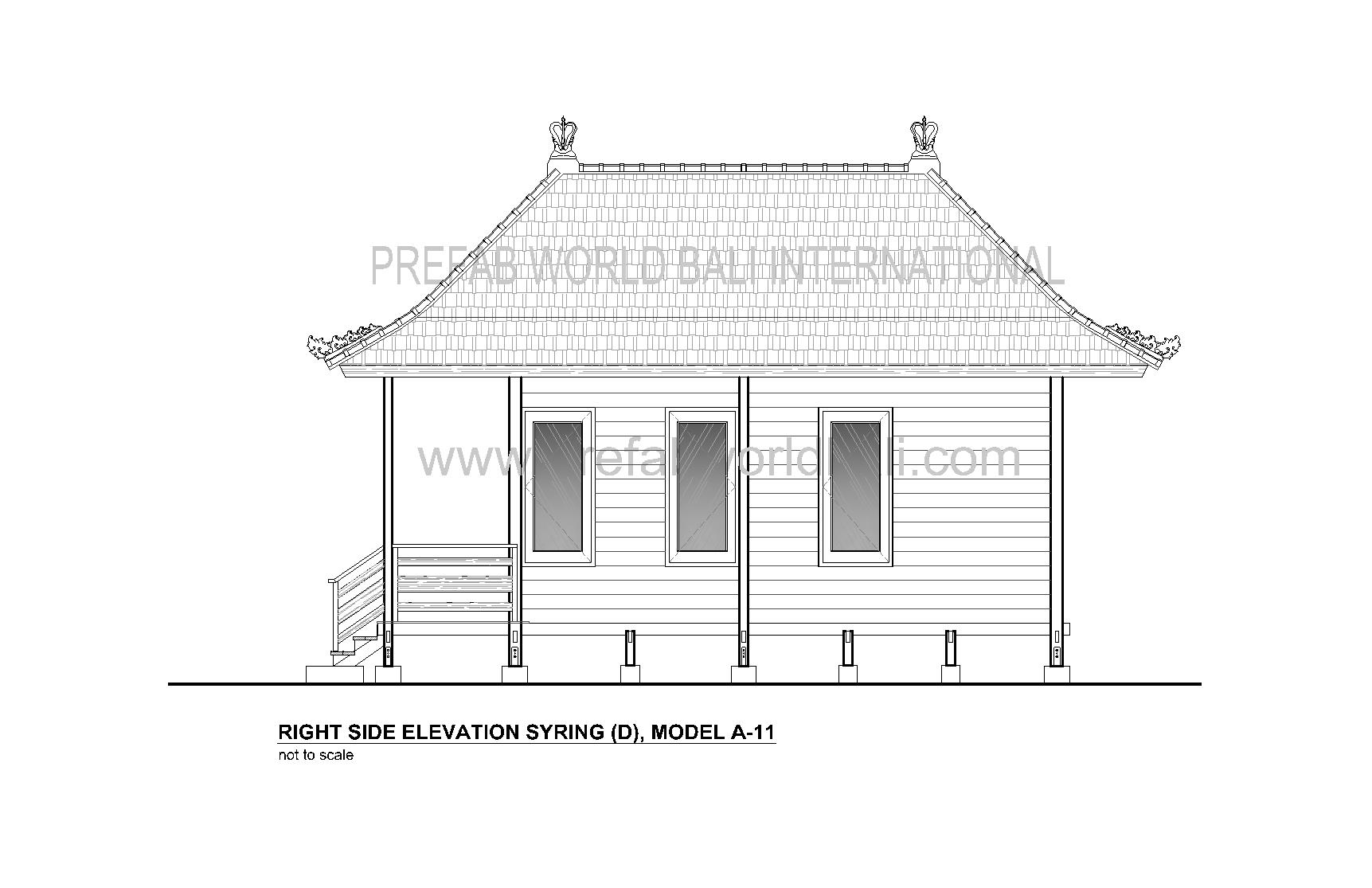

Right side elevation

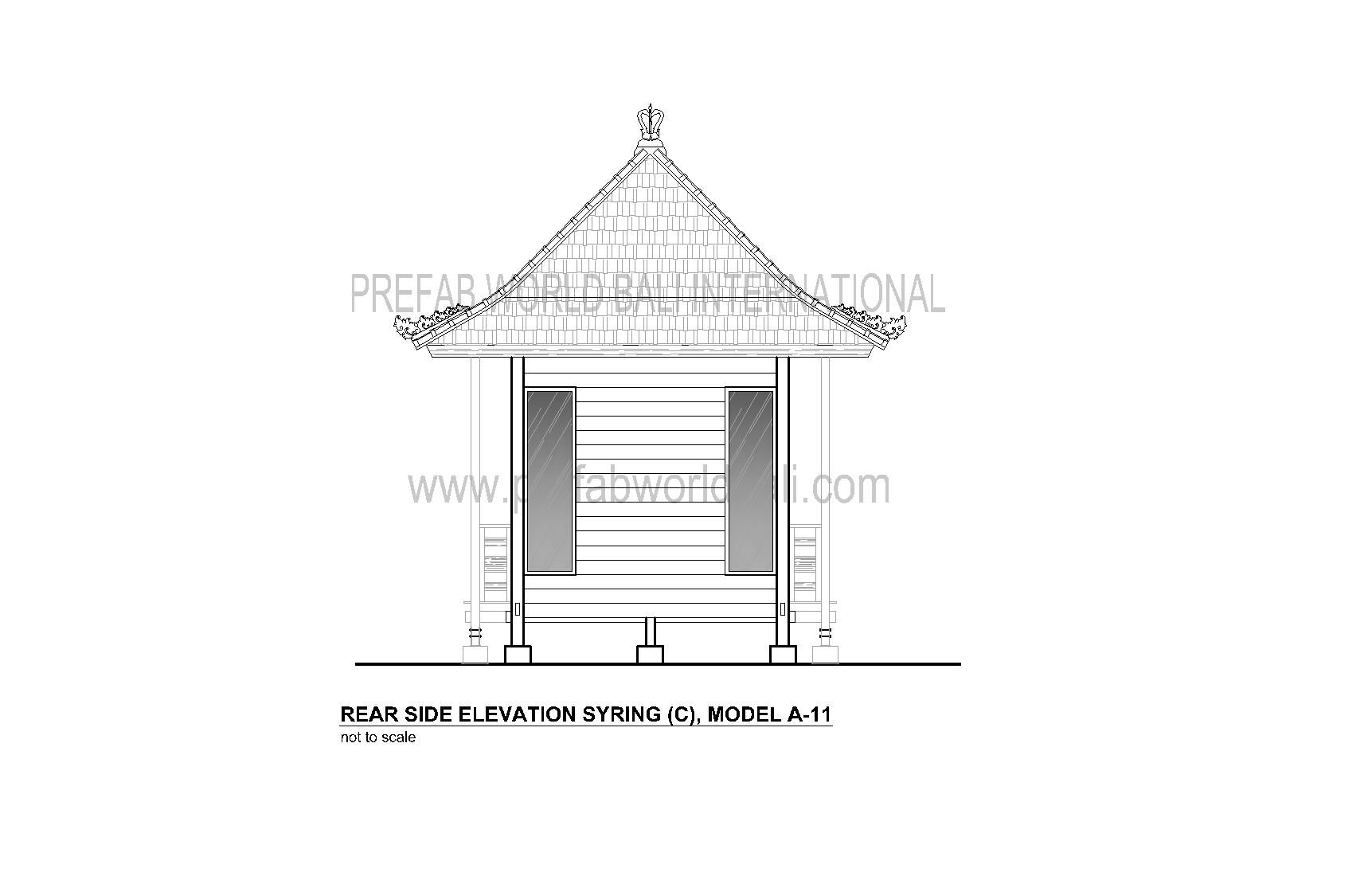

Rear elevation
The Syring with a slightly different front elevation compared to the drawing.
GENERAL DATA
Total net. interior sided area: 18.6 m2 (200 sqft)
Deck area: 3.9 m2 (42 sqft)
Building footprint area: 3.87 x 7.57 meter (12' - 8 1/2" x 24' - 10 1/8")
Roof edge footprint area: 4.47 x 8.45 meter (14' - 8 1/8" x 27' - 8 5/8")
Enquire for the price list download code
