CEMPAKA (52 m2, 559 sqft)
Code E-2

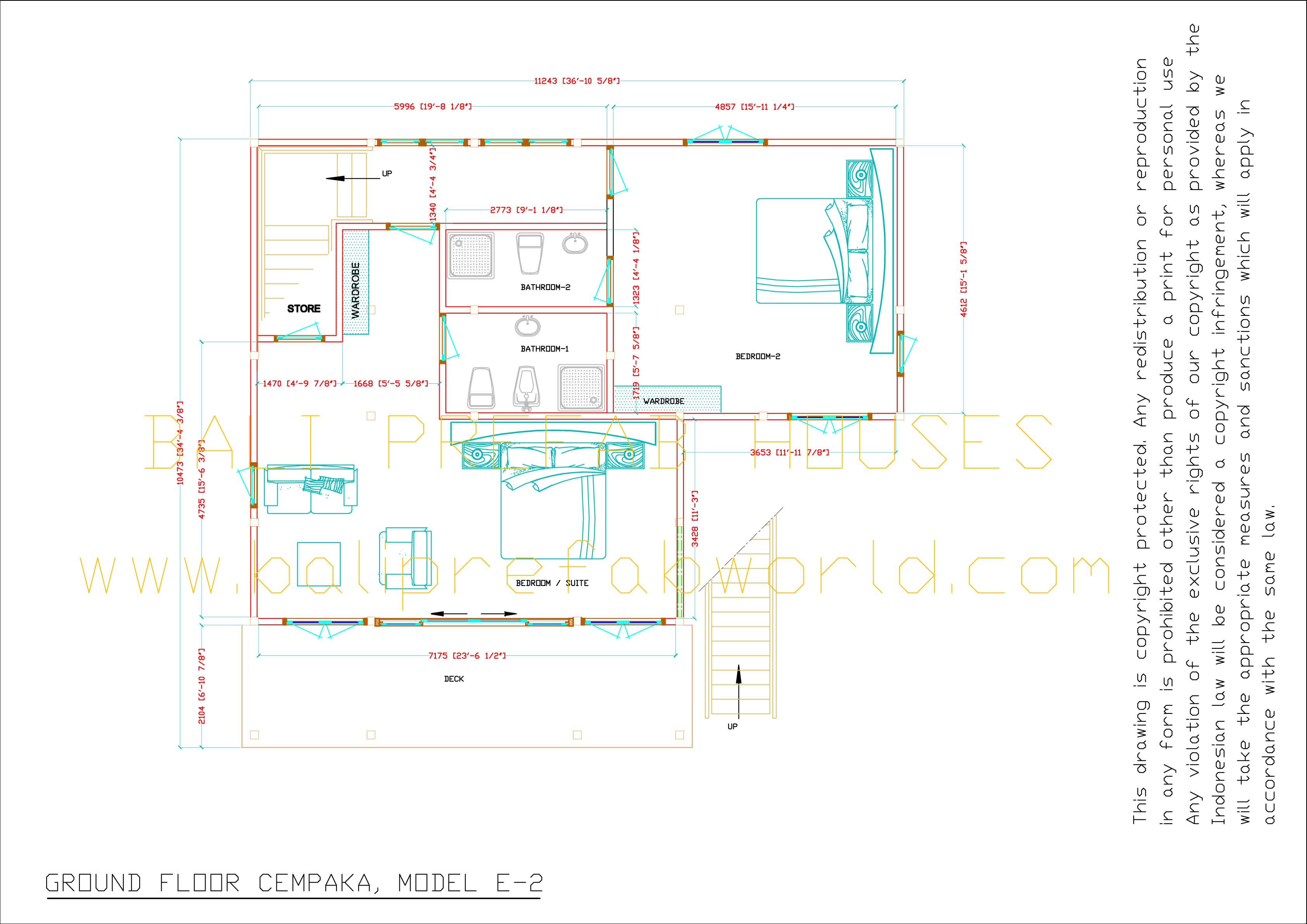

Ground floor plan

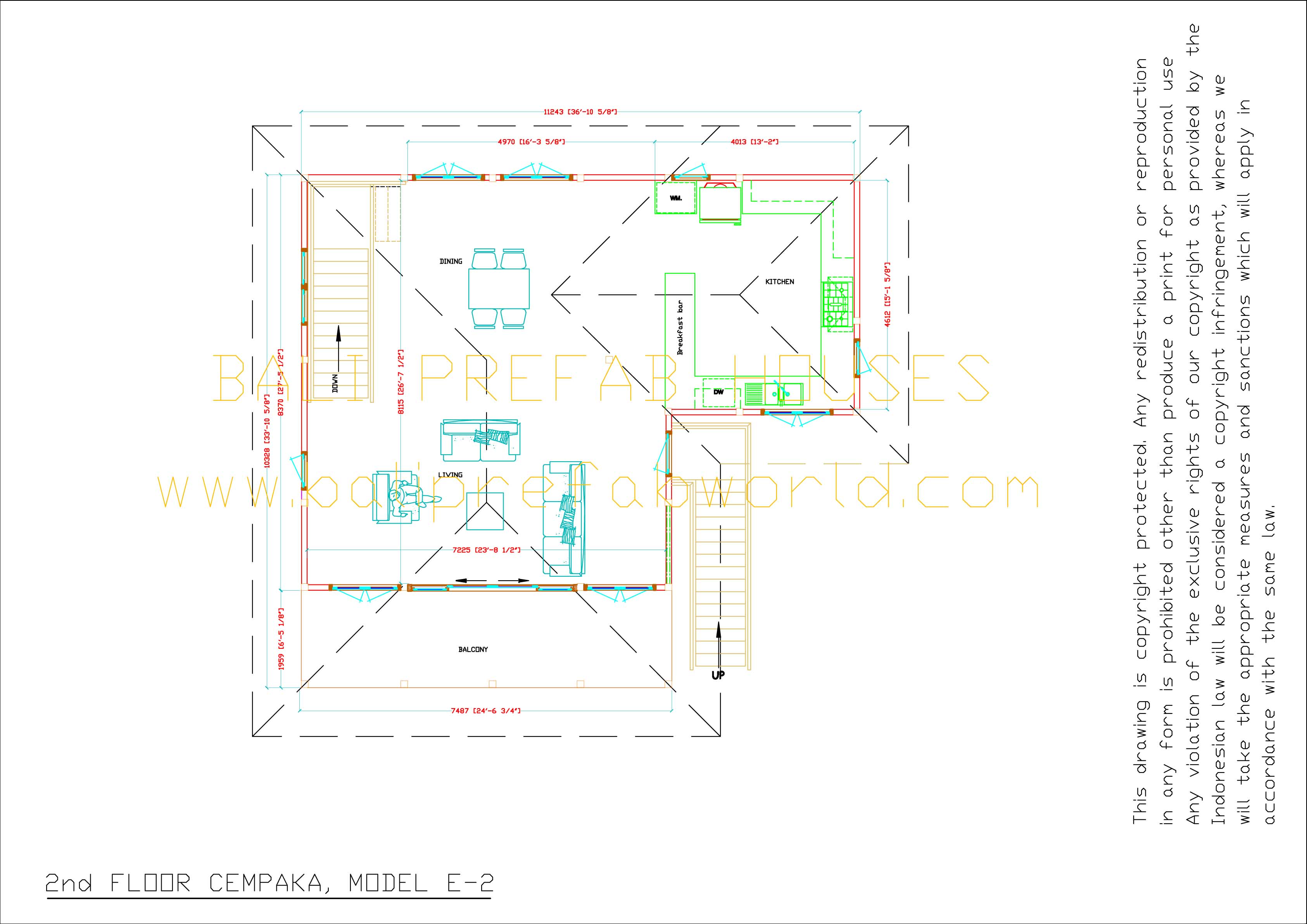

Second floor plan

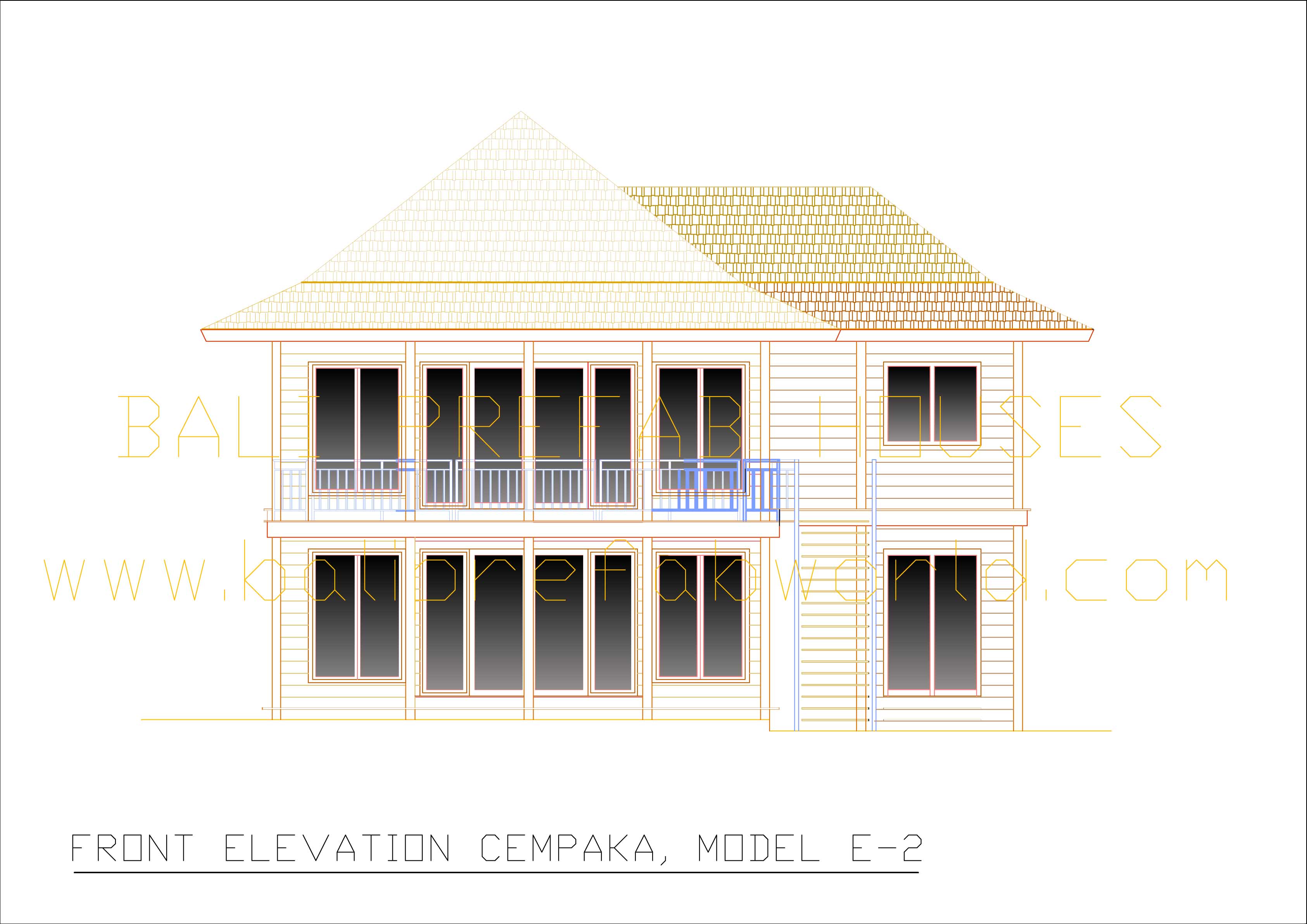

Front elevation

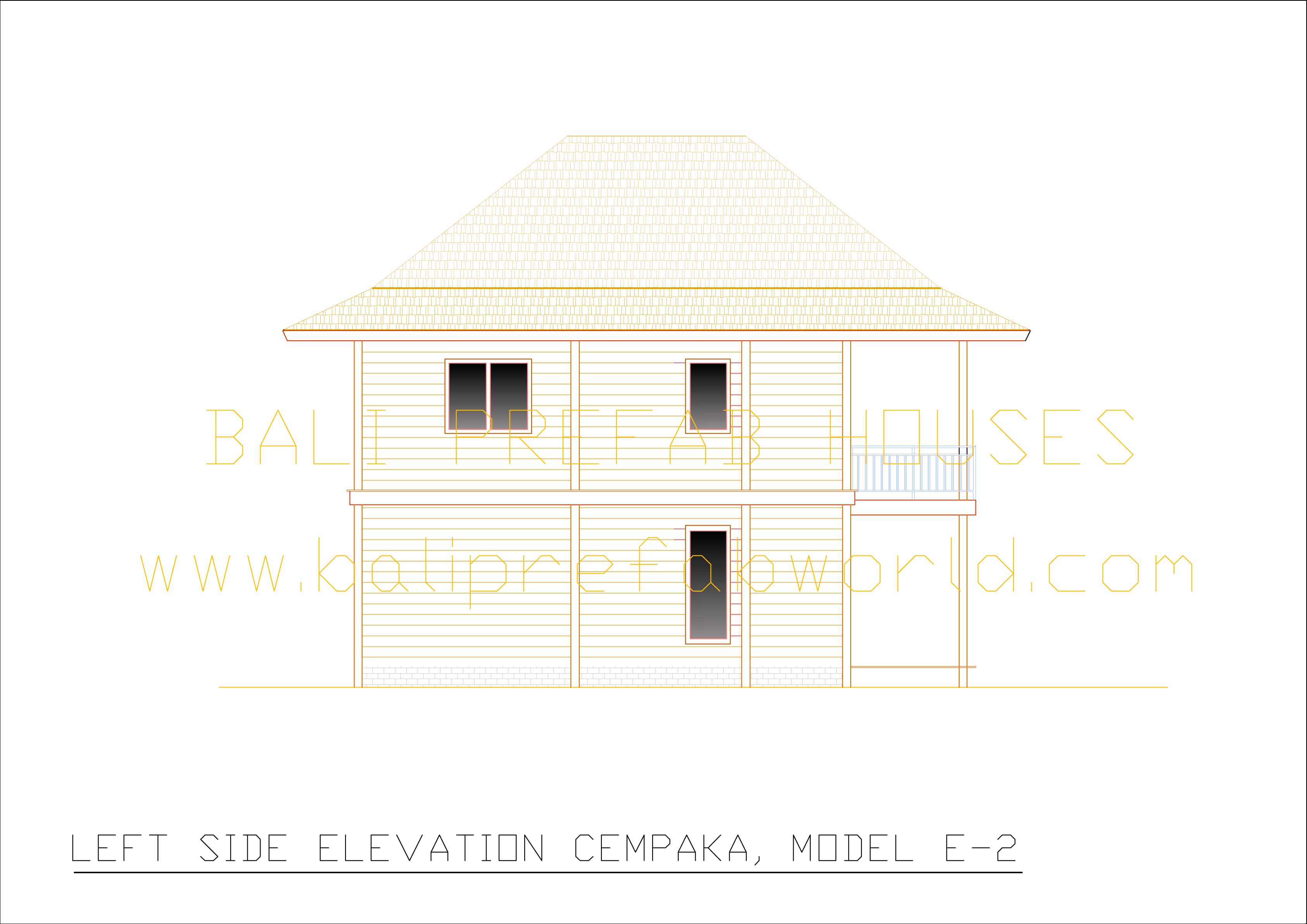

Left side elevation

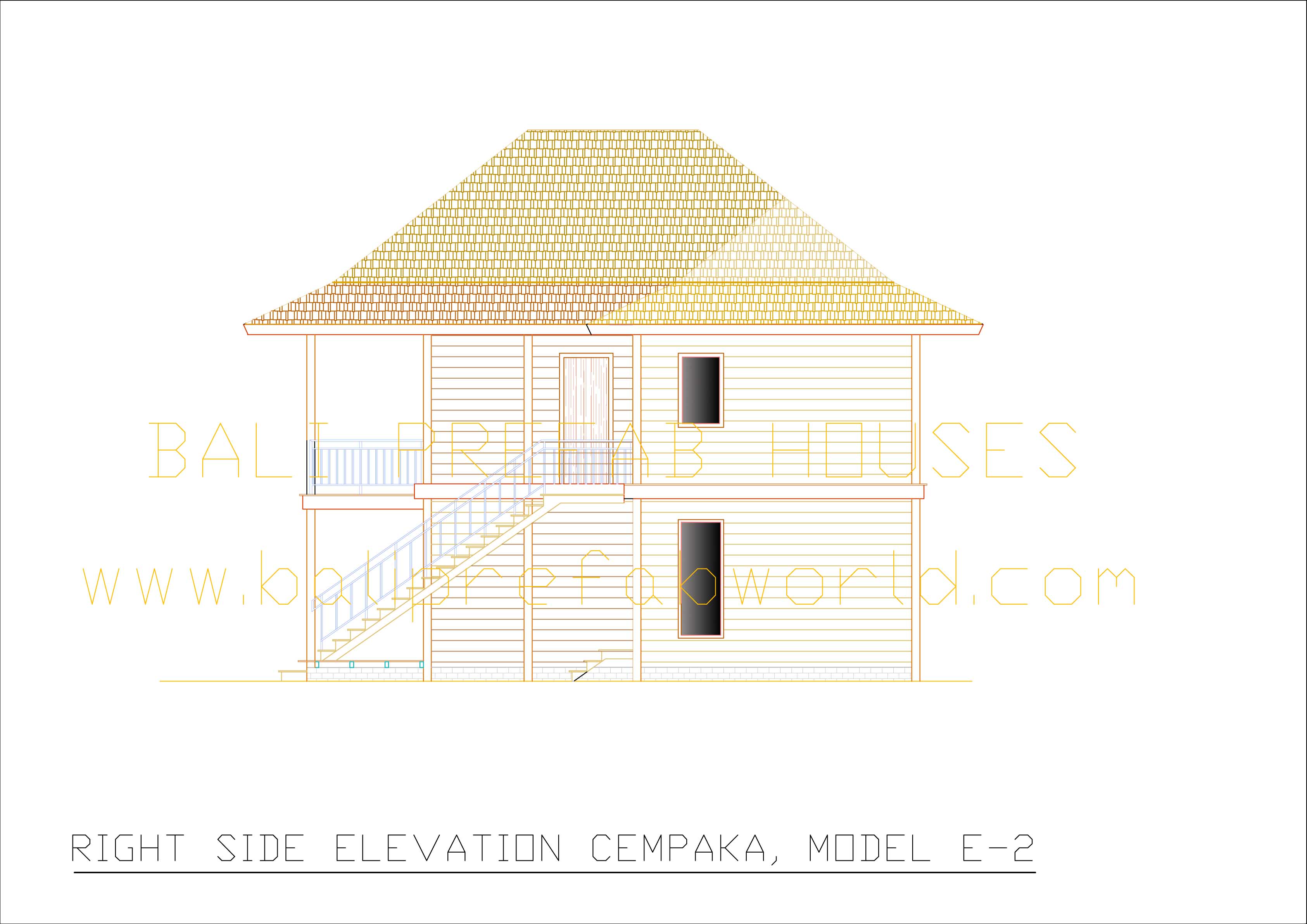

Right side elevation
Rear elevation
Living

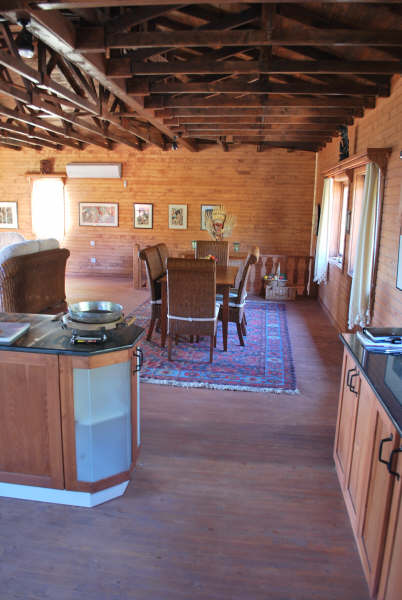

Dining & kitchen

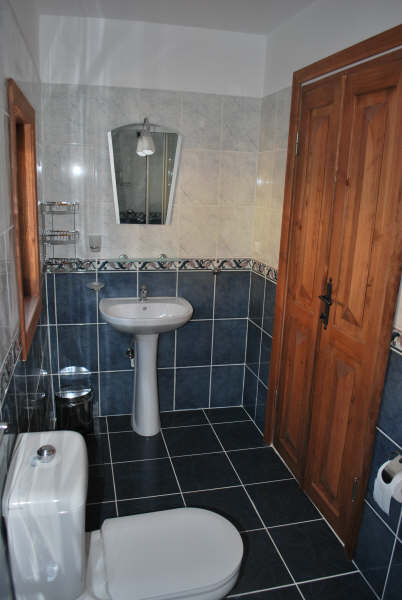

Bathroom
GENERAL DATA
Total net. interior sided area:
Ground floor: 52 m2 (559 sqft),
2nd floor: 45 m2 (484 sqft)
Deck area: Ground floor: 21.3 m2 (229 sqft), 2nd floor: 10.6 m2 (114 sqft)
Building footprint area: 9.68 x 8.98 meter (31' - 9" x 29' - 5 5/8")
Roof edge footprint area: 10.45 x 12.06 meter (34' - 3 3/8" x 39' - 6 5/8")
Enquire for the price list download code
