VIOLA (218.5 m2, 2,352 sqft))
Code B-4
Floor plan

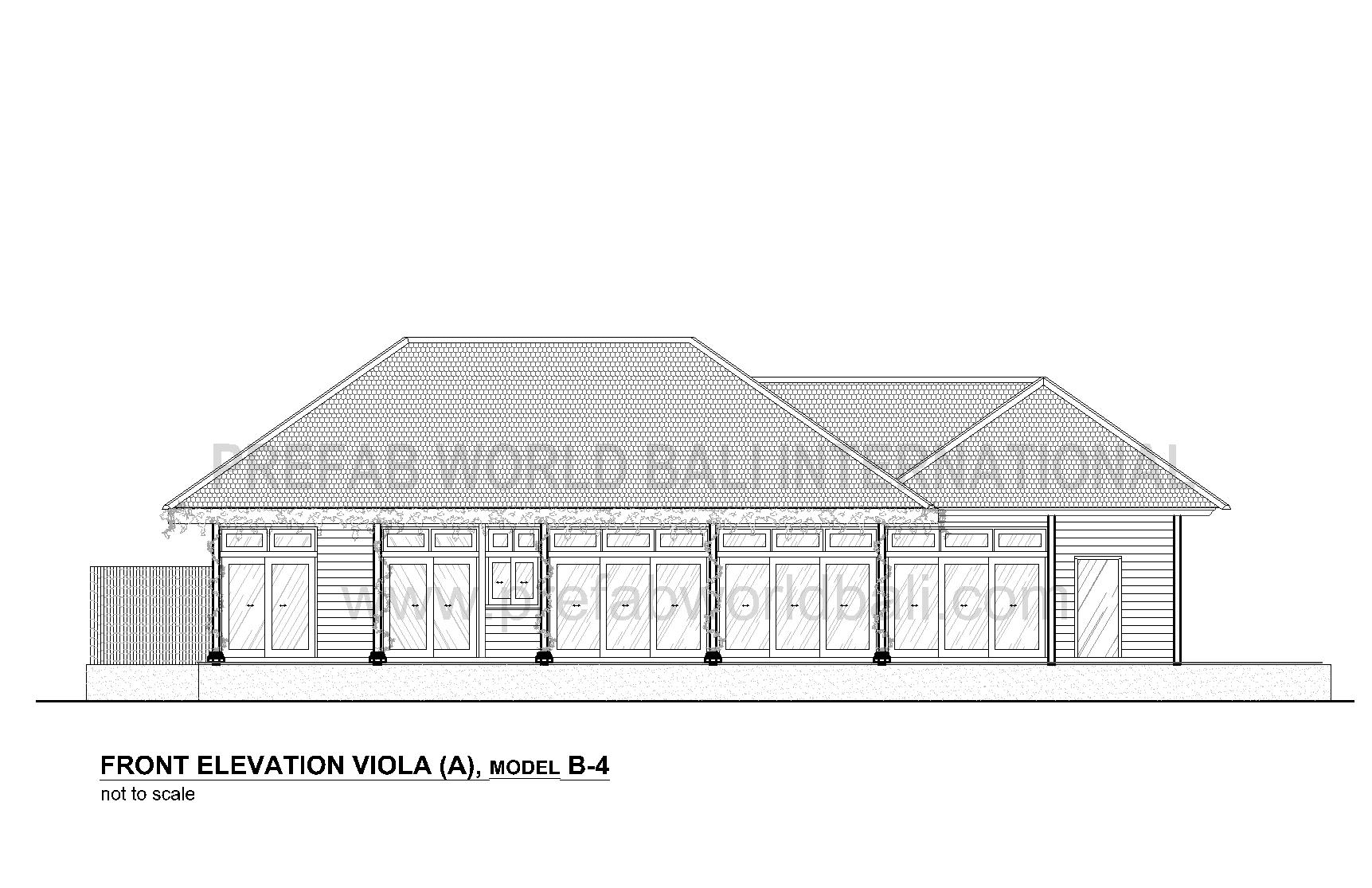

Front elevation

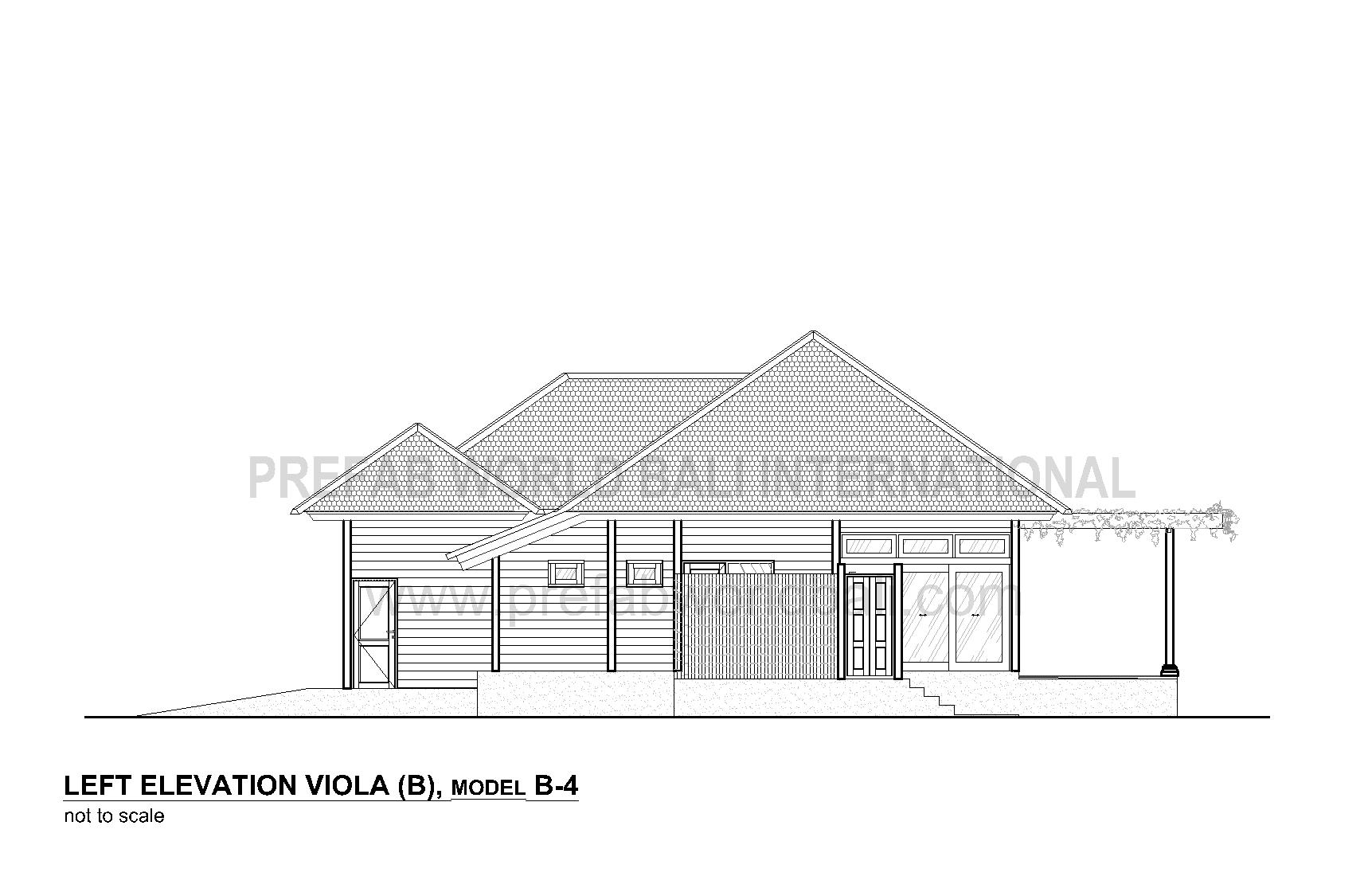

Left side elevation

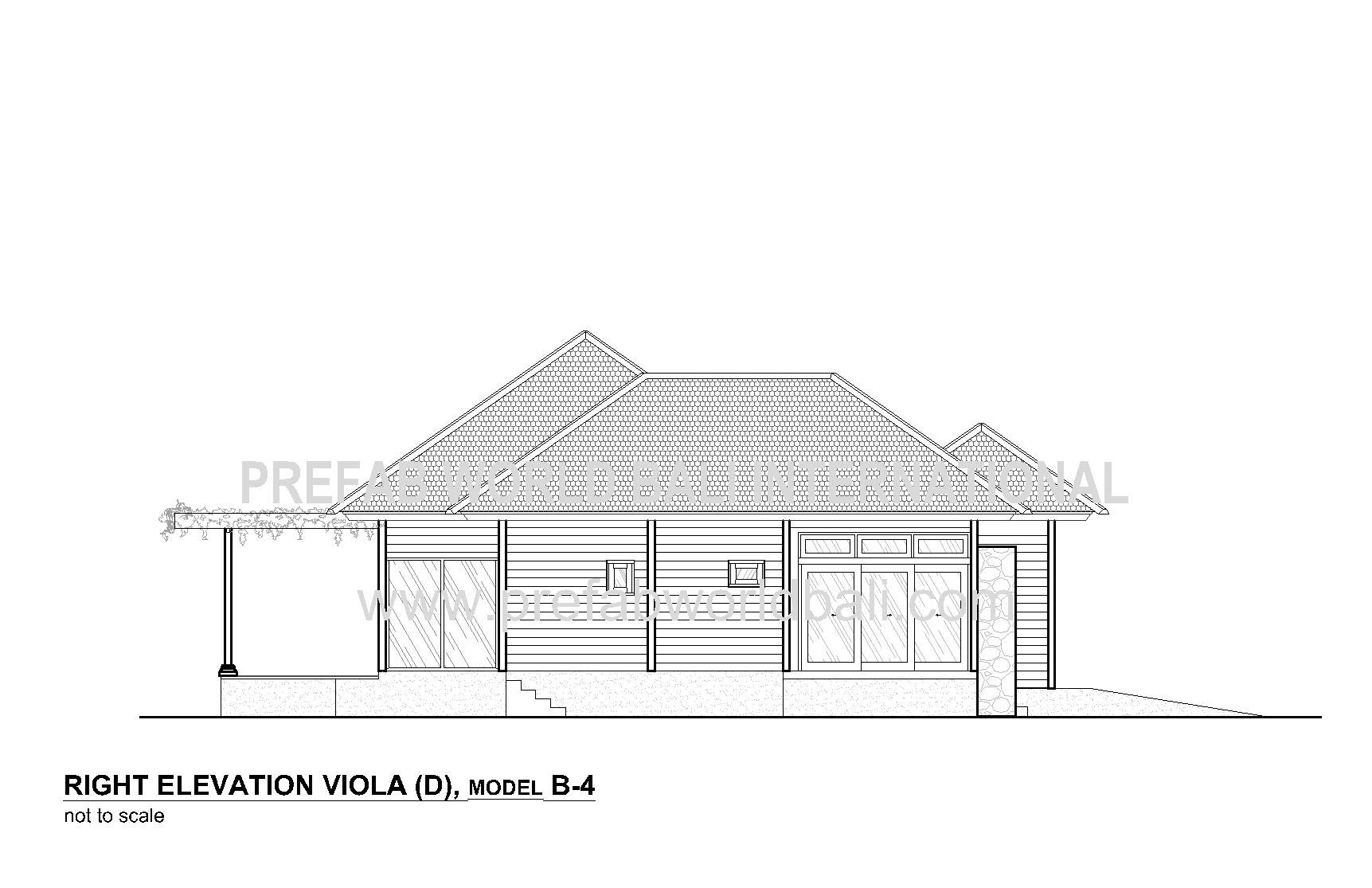

Right side elevation

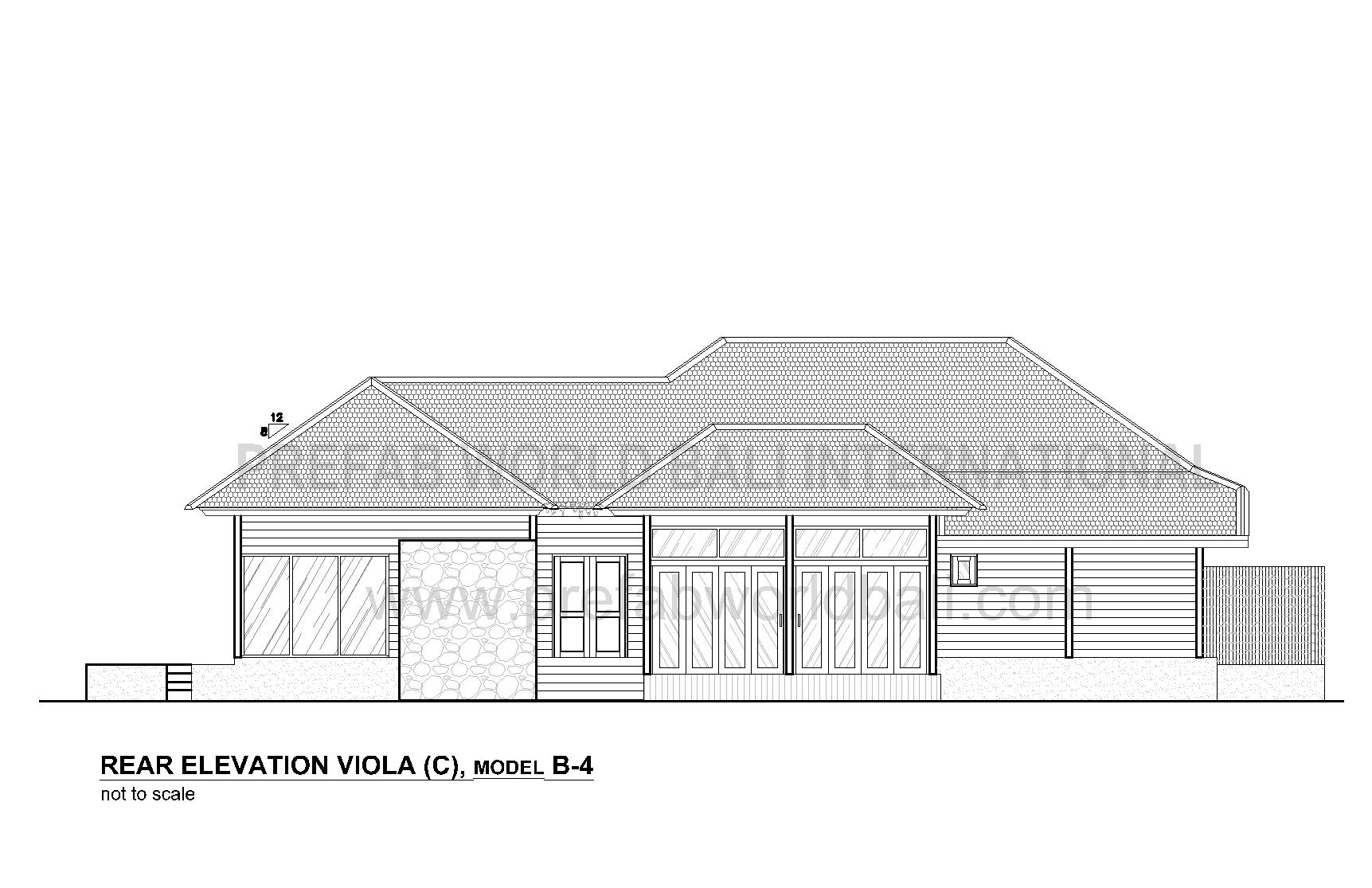

Rear elevation
GENERAL DATA
Total net. interior sided area: 218.5 m2 (2,352 sqft)
Deck area: 132.1 m2 (1,423 sqft)
Building footprint area: 17,50 x 32.80 meter (57' - 3 3/8" x 78' - 1 1/8")
Roof edge footprint area: 18.35 x 24.82 meter (60' - 2 9/16" x 81' - 5")
