LAVENDER (46.6 m2, 495 sqft)
Code E-3

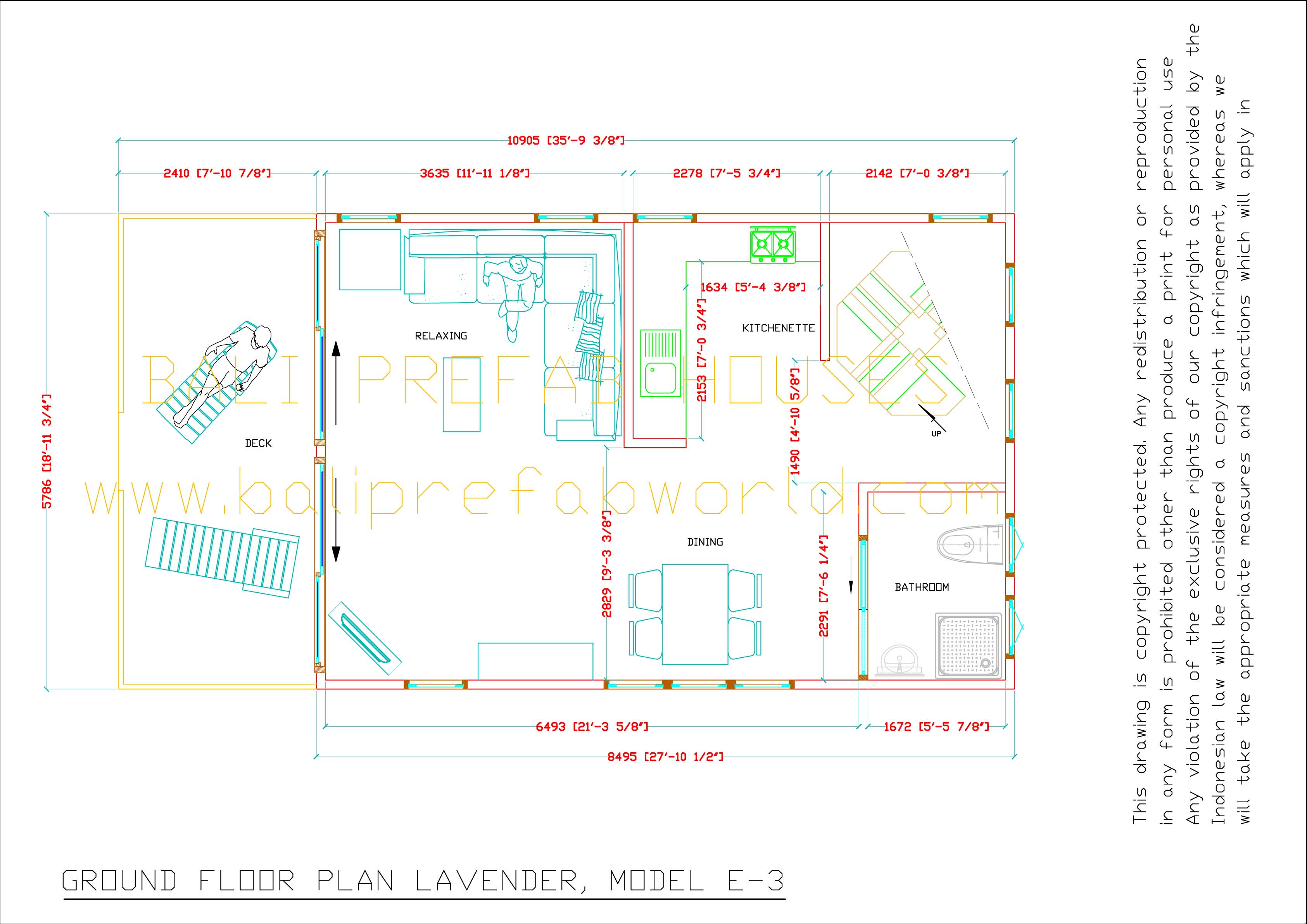

Ground floor plan

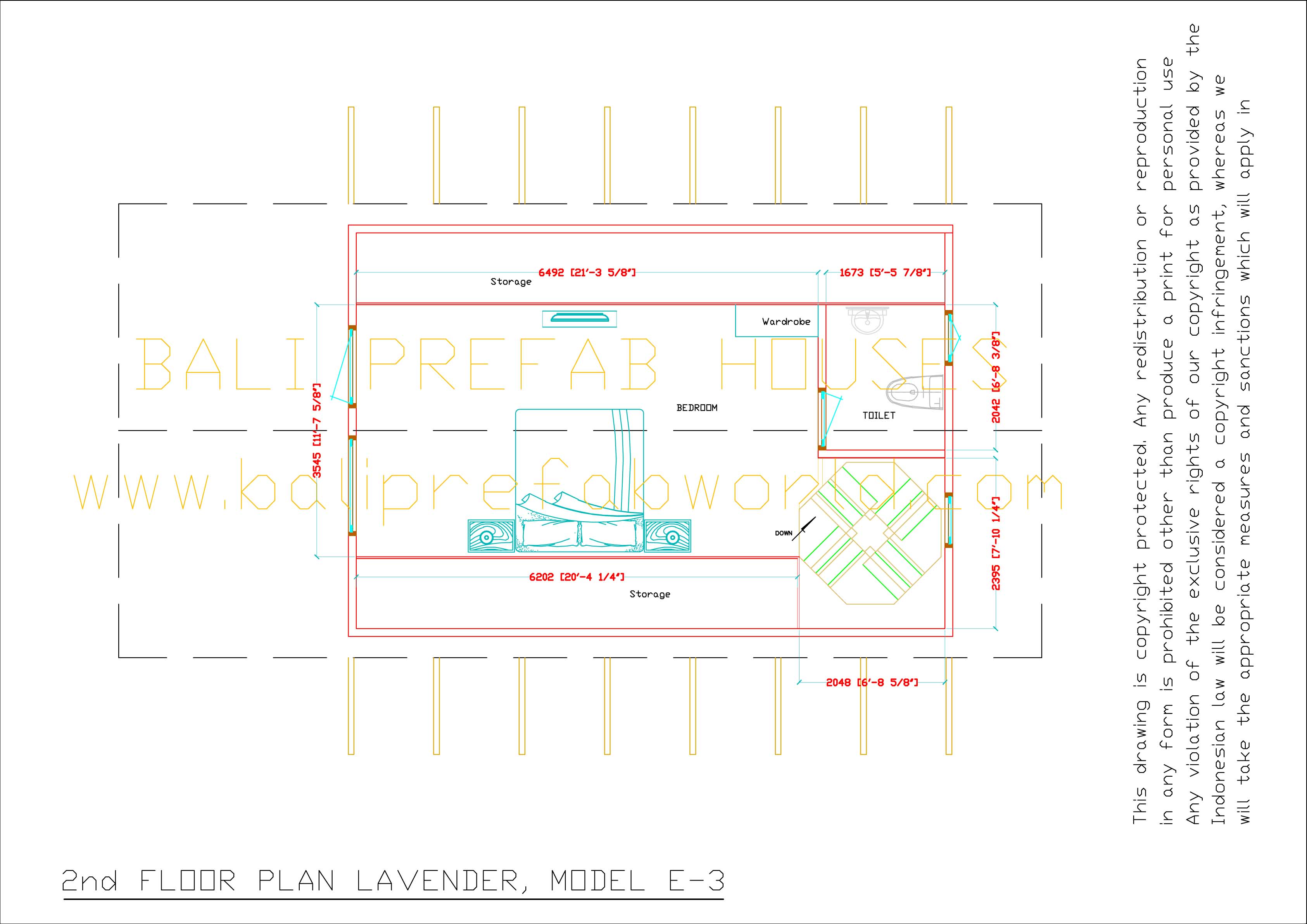

Second floor plan
Front elevation

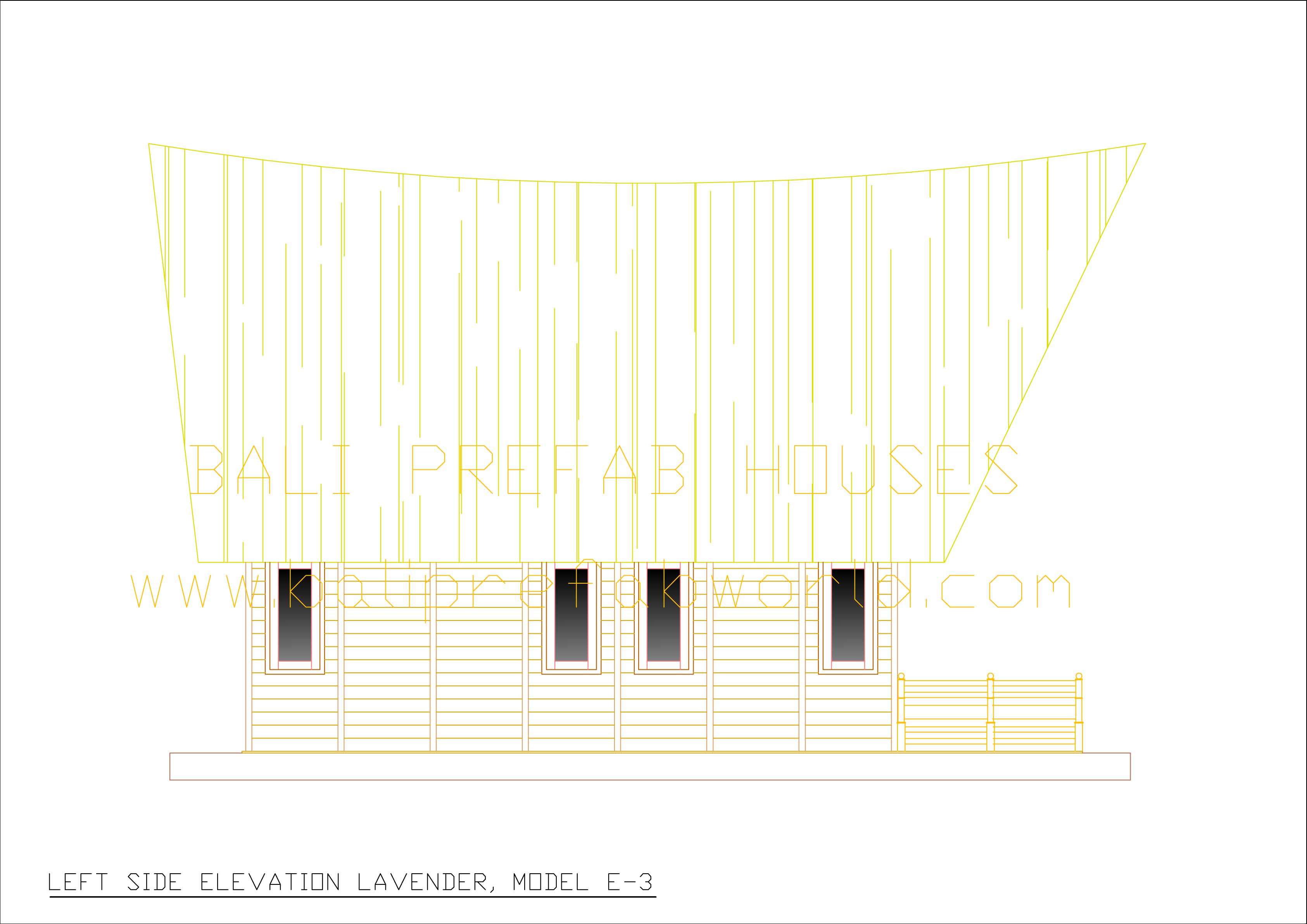

Left side elevation

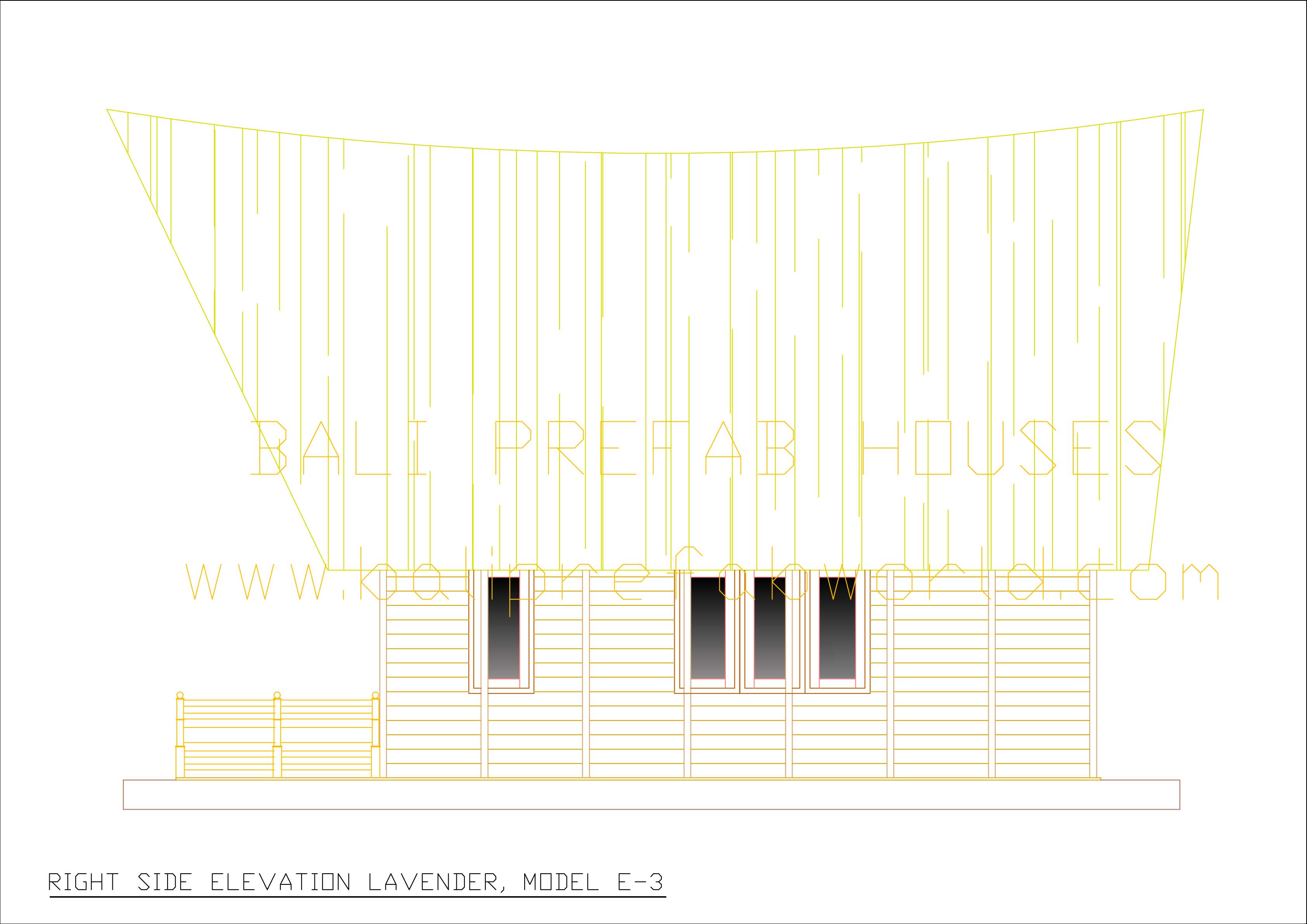

Right side elevation

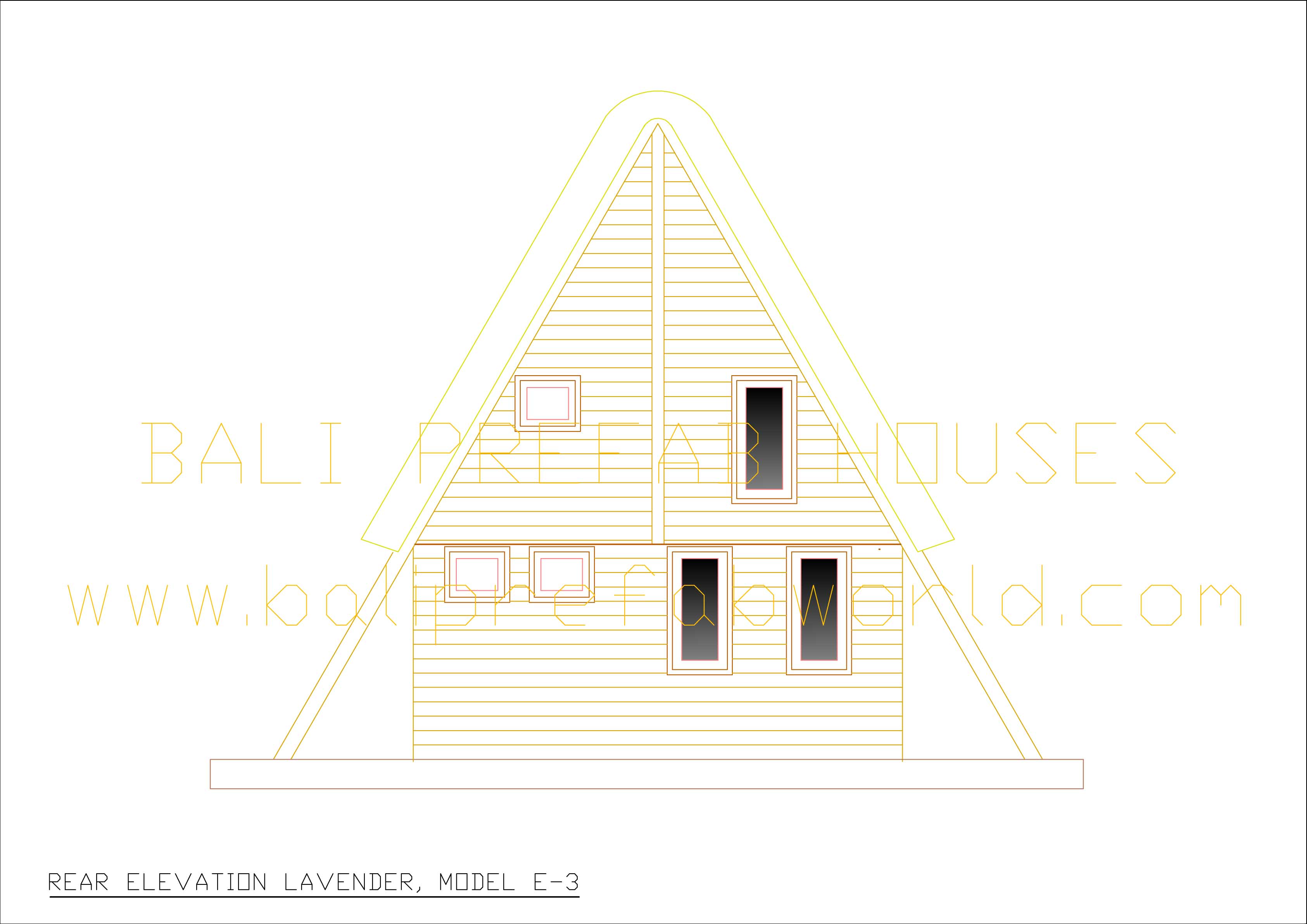

Rear elevation
GENERAL DATA
Total net. interior sided area:
Ground floor: 46 m2 (495 sqft),
2nd floor: effective 26.6 m2 (286 sqft)
Deck area: Ground floor: 13.3 m2 (143 sqft) 2nd floor: No deck
Building footprint area: 8.50 x 9.10 meter (27' - 10" x 29' - 10")
Roof edge footprint area: 7.05 x 12.95 meter (23' - 3/8" x 42' - 6 7/8")
Enquire for the price list download code
