CHAMOMILE 2 (85 m2, 896 sqft)
Code A-36
The unit was designed by the client and prefabricated by our company and was assembled by the Client on the island of Reunion
The client allowed us to showcase the unit on our website

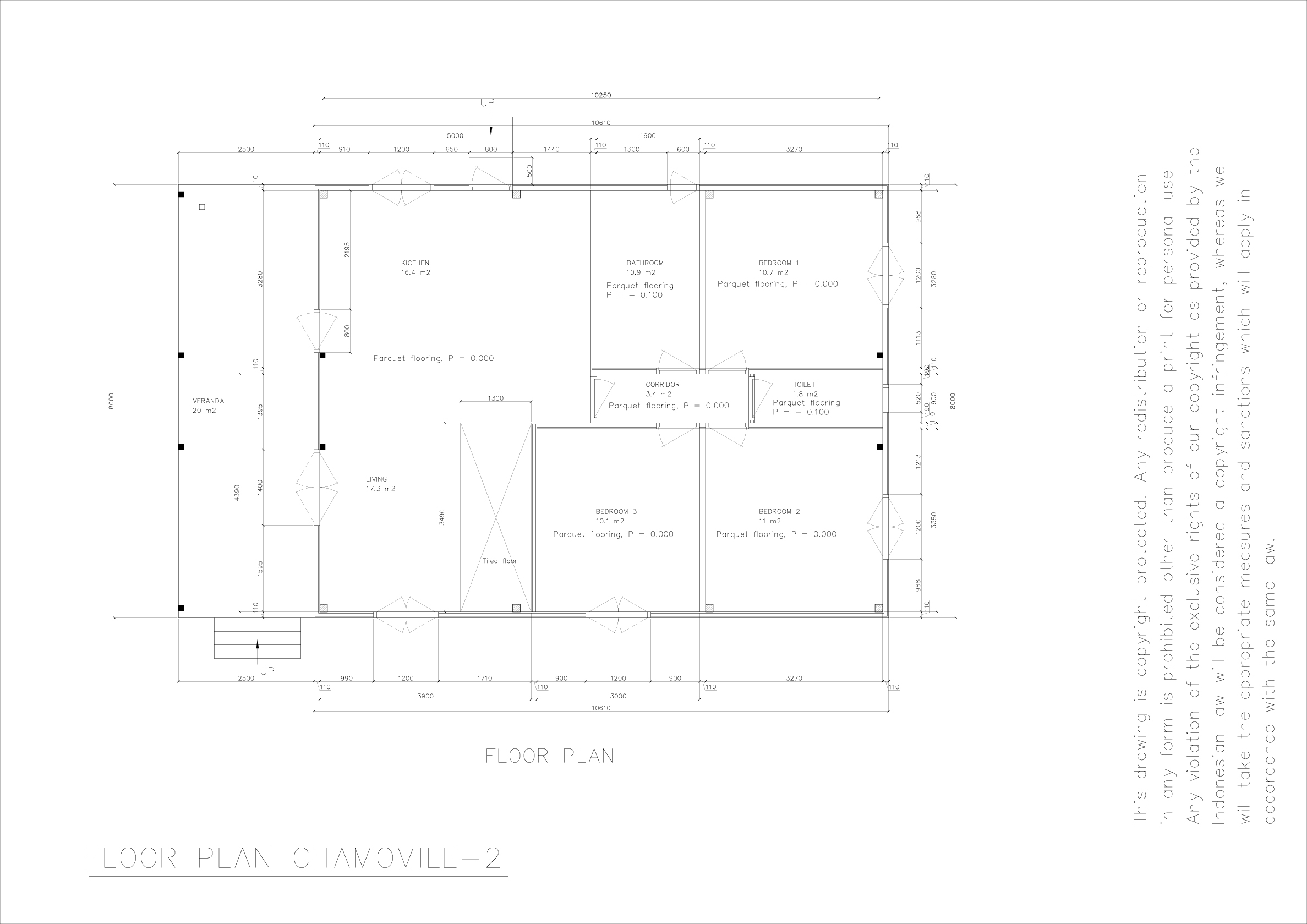

Floor plan

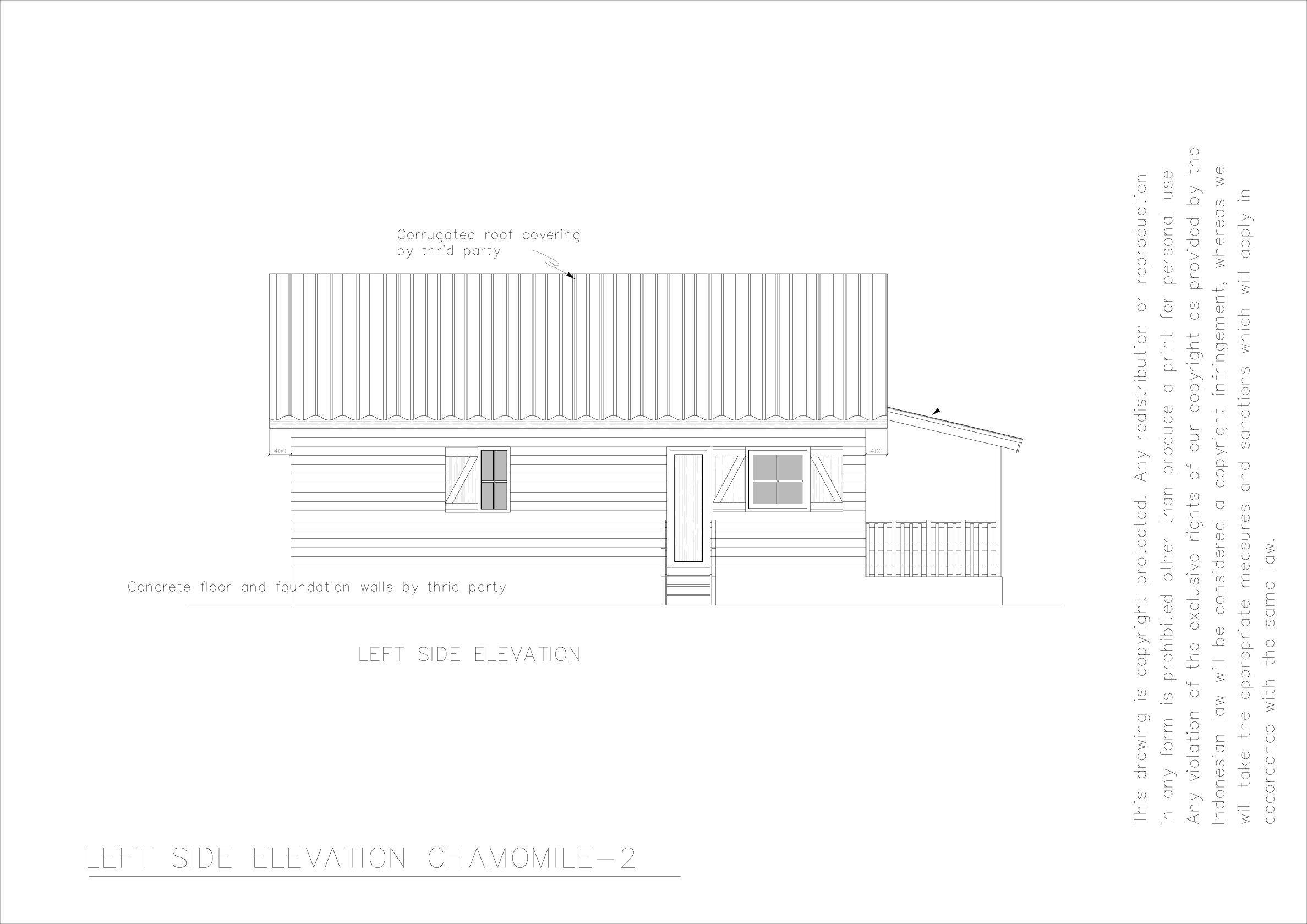

Left side elevation

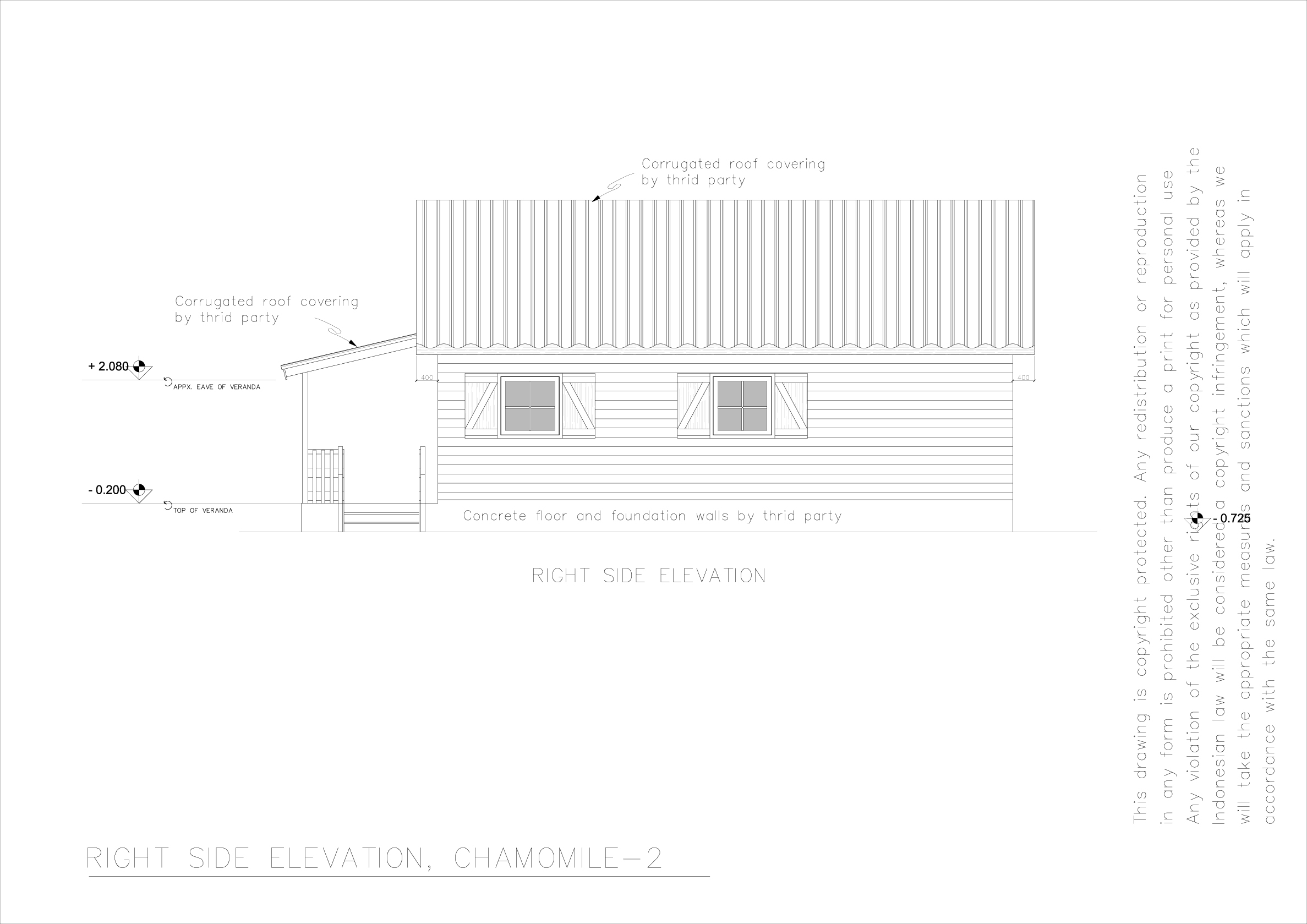

Right side elevation

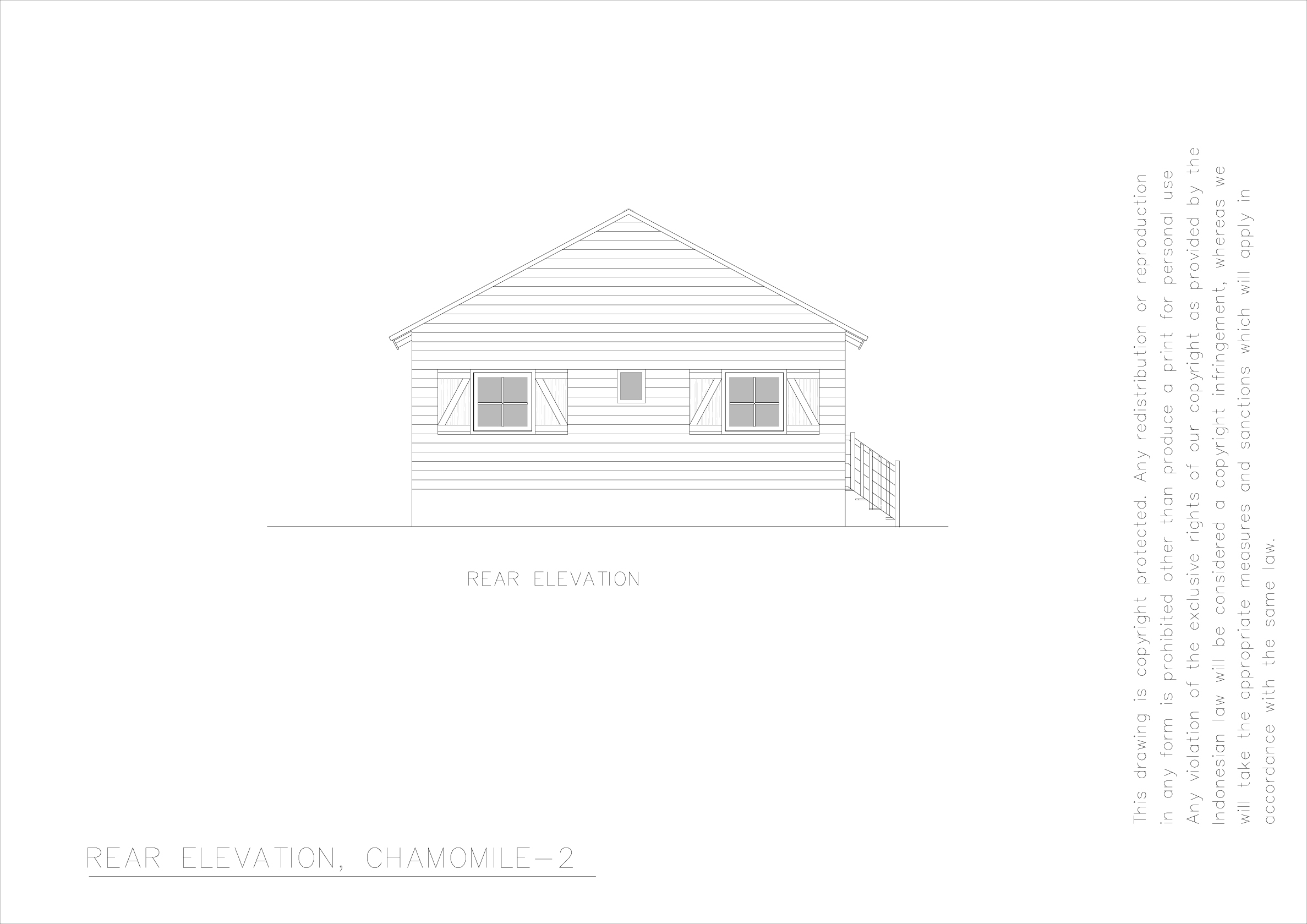

Rear elevation
During construction at our yard
(type 1)
Finalized at our yard
(type1)
Built at client's end
(type 1)
Left side elevation
(type 1)
Living
(type 1 & 2)
Living (Type 1 & 2)
Kitchen (Type 1 & 2)
Hatches (left side closed, right side open)
(for both type 1 & 2)
GENERAL DATA
Large unit: (option 1)
Total net. interior sided area: 121.2 m2 (1,276 sqft)
Building footprint area: 10.25 x 8.00 meter (45' x 29' - 5")
Roof edge footprint area: 17.30 x 8.85 meter (75' - 3 /32" x 29' - 1/3")
Veranda: 9 x 2.5 meters.
Small unit: (option2)
Total net. interior sided area: 84.9 m2 (895 sqft)
Building footprint area: 4.90 x 5.38 meter (16' x 17' - 6")
Roof edge footprint area: 11.40 x 8.80 meter (37' - 2" x 29' - 1")
Veranda: 4.40 x 0.95 meters
Enquire for the price list download code
