JEPUN-1 (11.9 m2, 128 sqft)
Code A-18

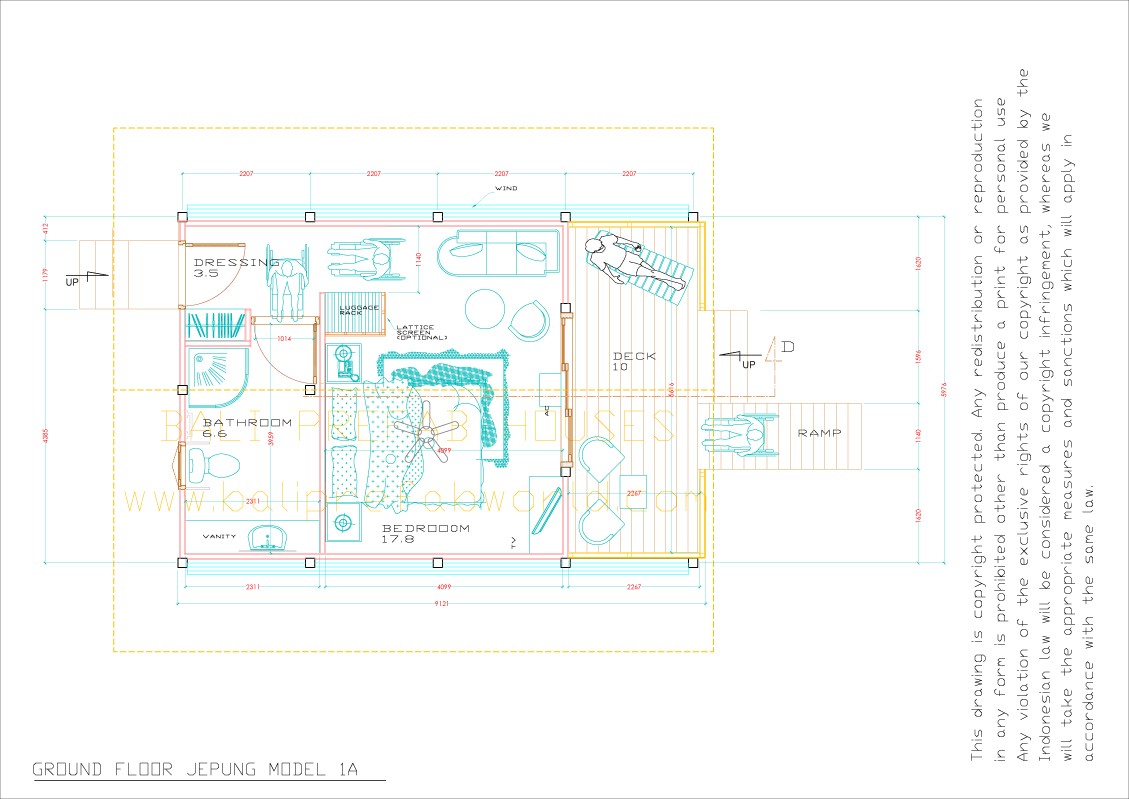

Floor plan

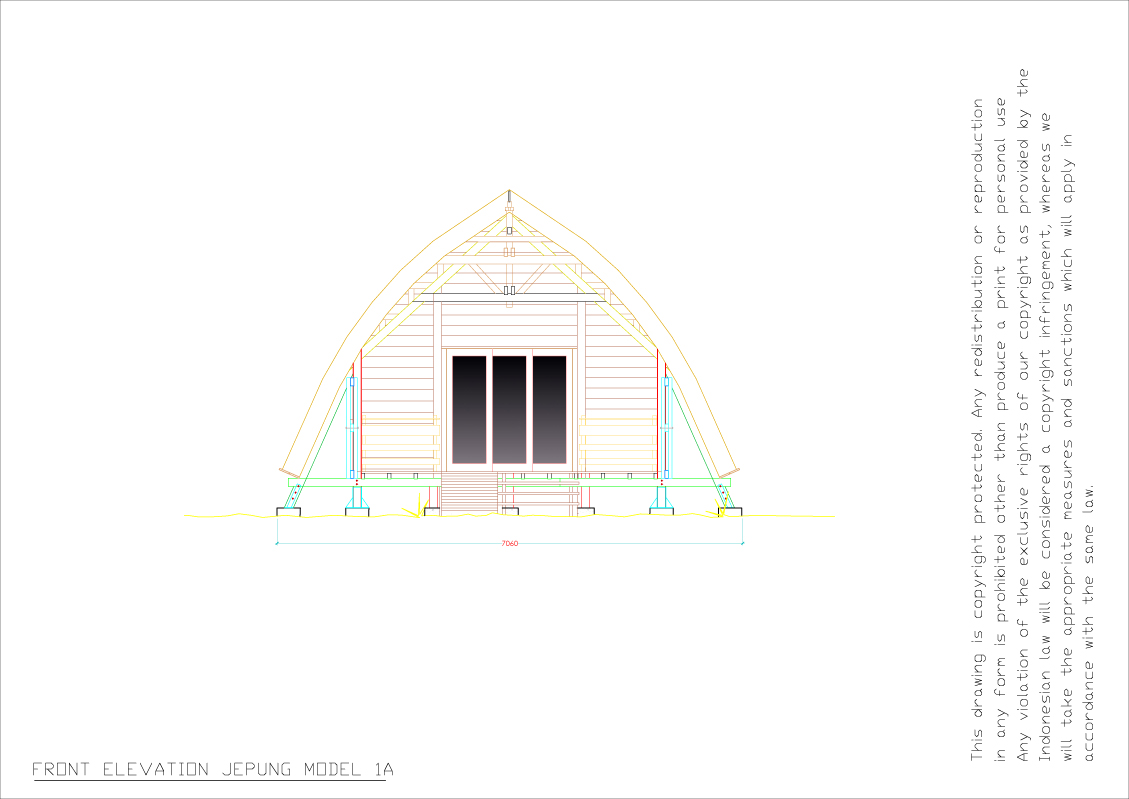

Front elevation

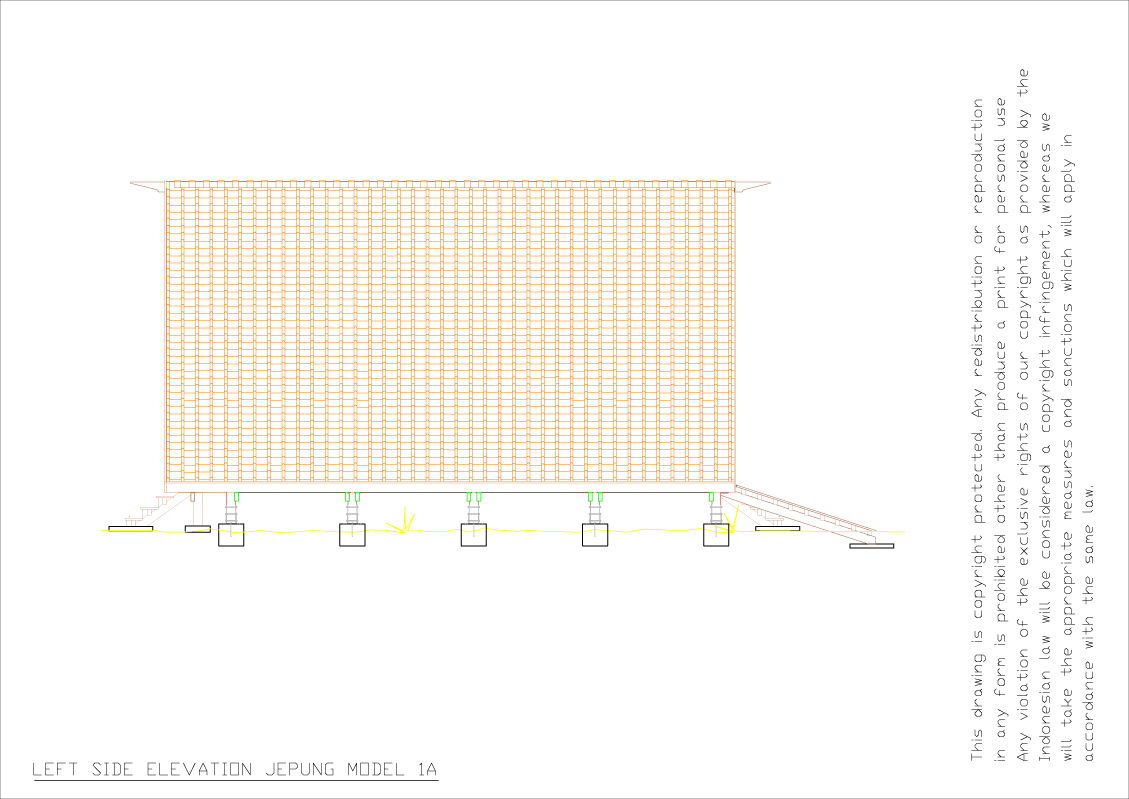

Left side elevation

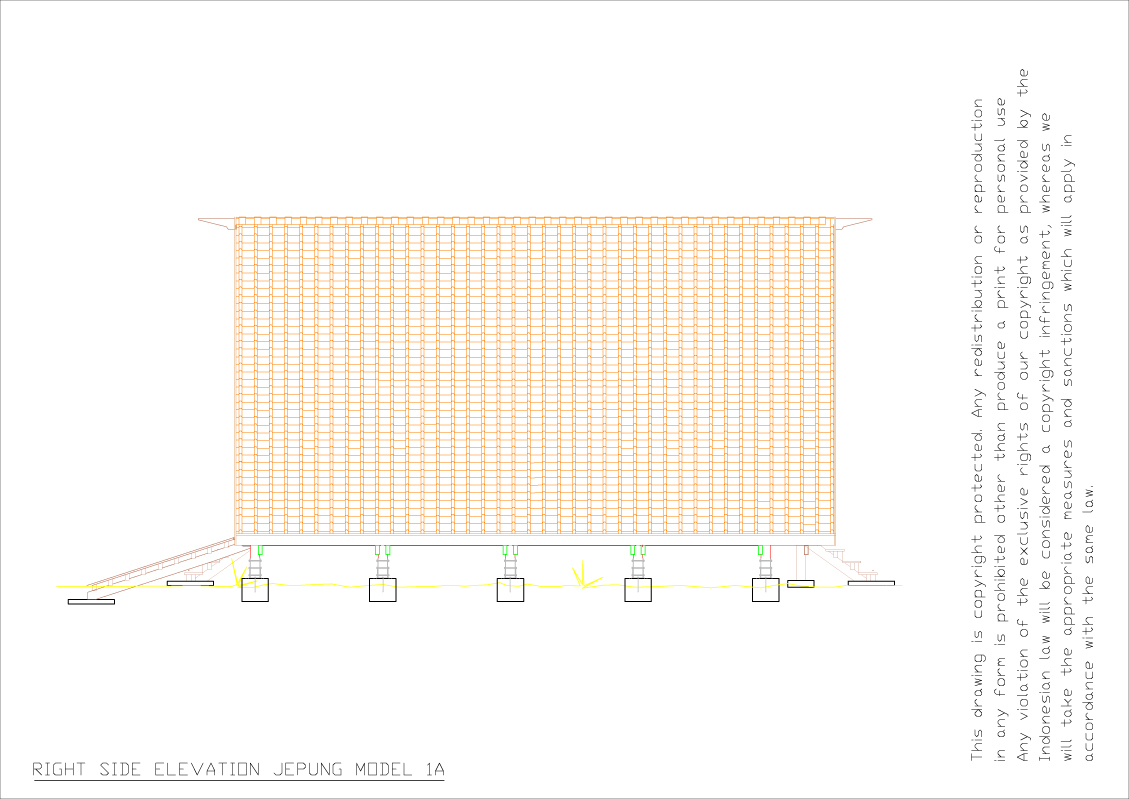

Right side elevation

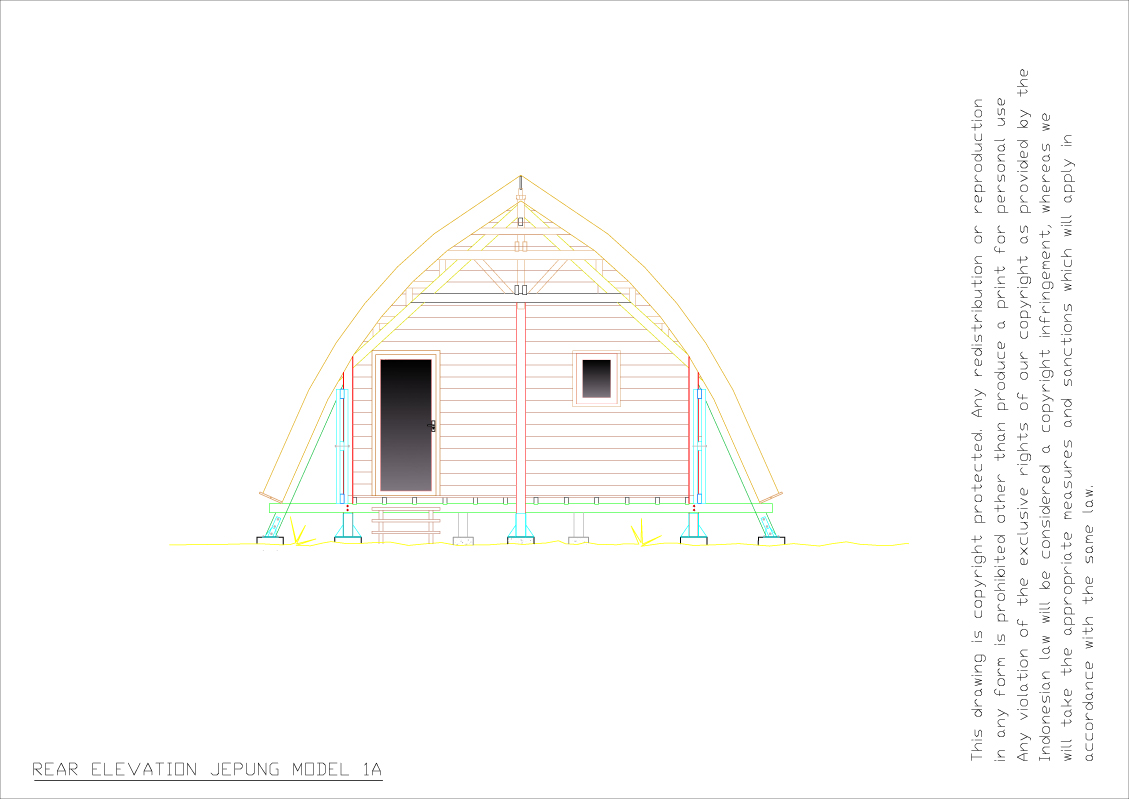

Rear elevation
As built
GENERAL DATA
Total net. interior sided area:
Ground floor: 11.9 m2 (128 sqft),
Deck area: 4 m2 (43 sqft)
Building footprint area: 4.42 x 4.87 meter (14' - 6" x 15' - 11 7/8")
Roof edge footprint area: 5.67 x 6.00 meter (18' - 7 1/8" x 19' - 7 3/4")
