JEPUN-6

Current Local Date & Time in Bali



JEPUN-6 (18.1 m2, 185 sqft)
Deck (5.9 m2, 64 sqft)
                     Code A-23Jepun

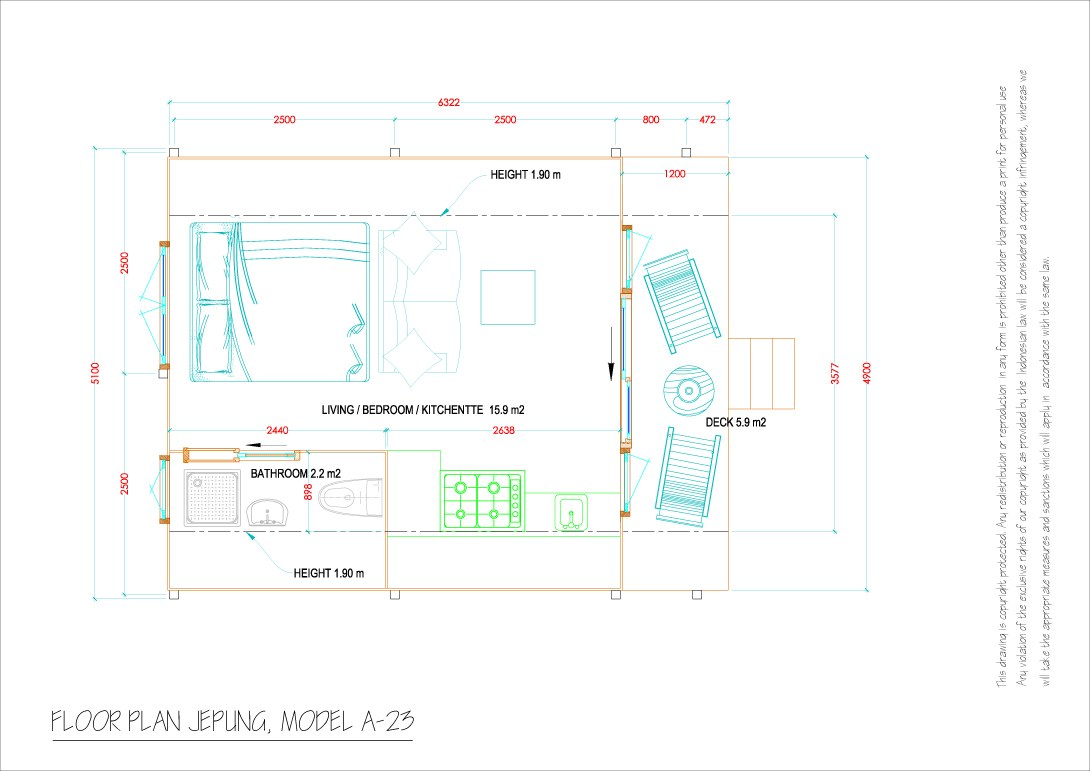

Jepung A 23 floorplan 1



Floor plan

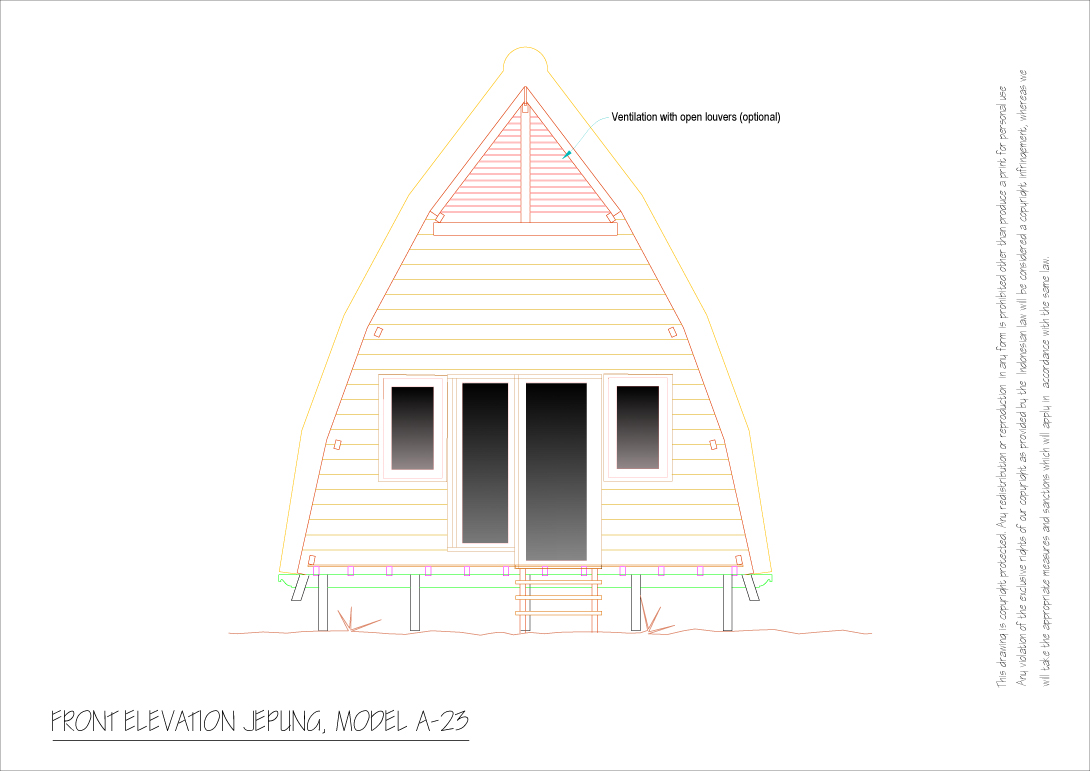

Jepung A 23 front elevation 1

Front elevation

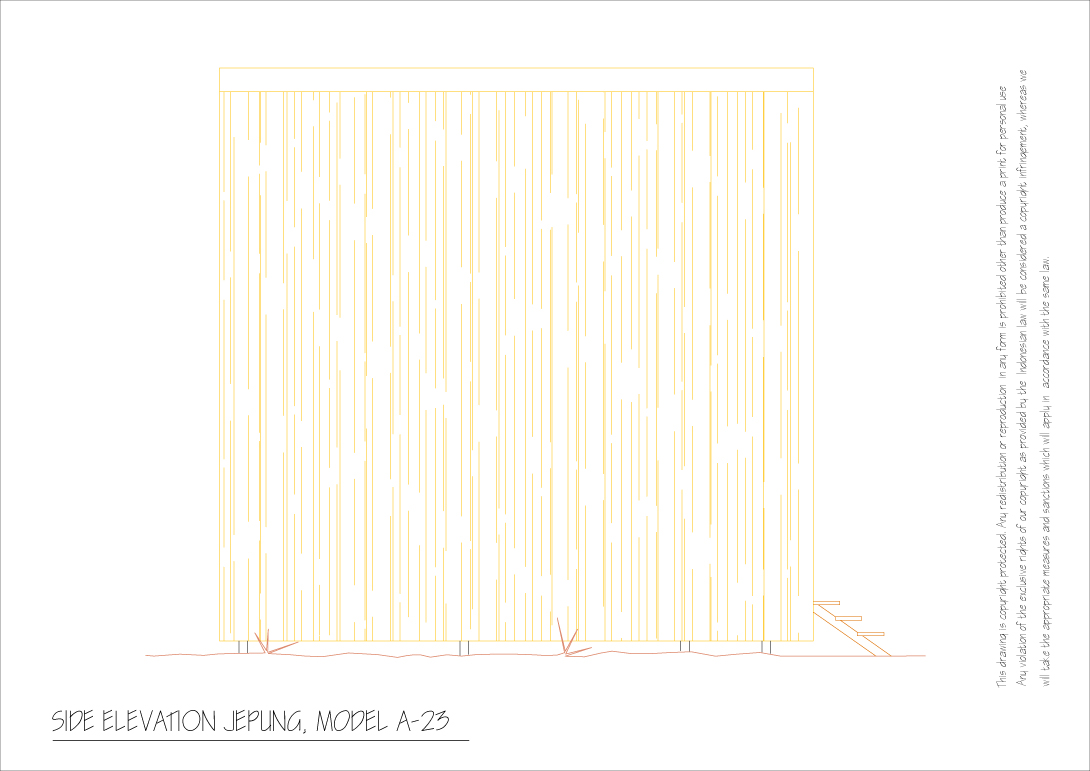

Jepung A 23 side elevation

Left side elevation



Jepung A 23 side elevation

Right side elevation

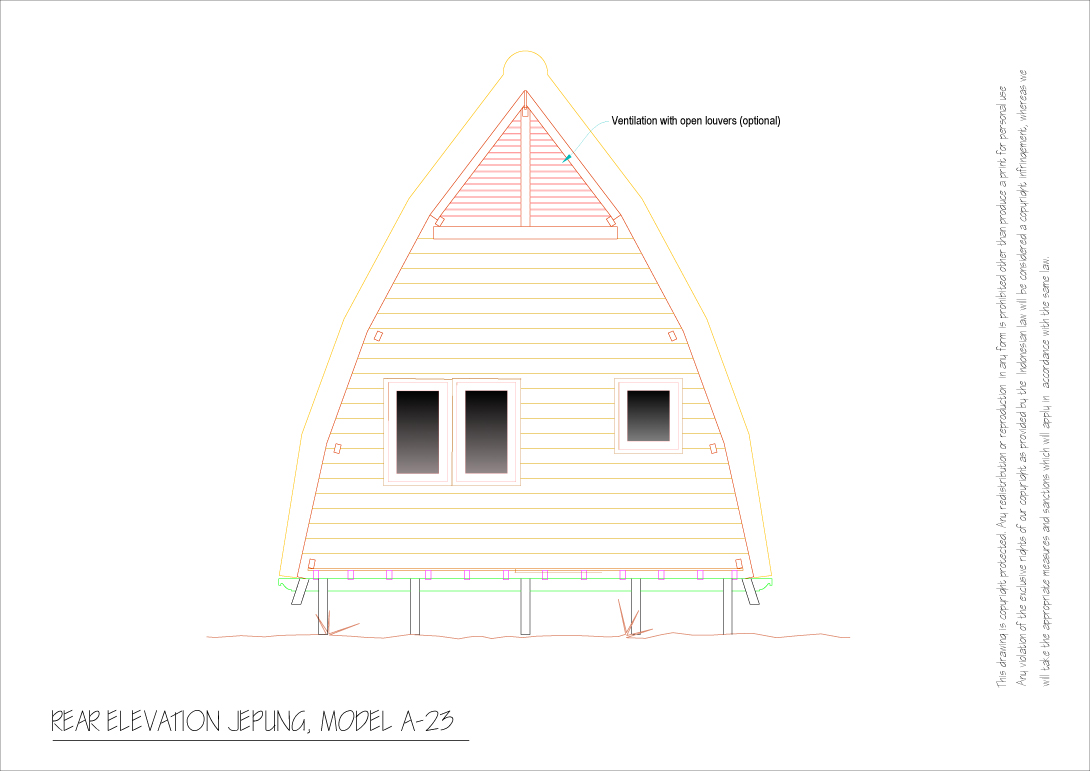

Jepung A 23 rear elevation 1

Rear elevation

Jepung A 23

Front elevation

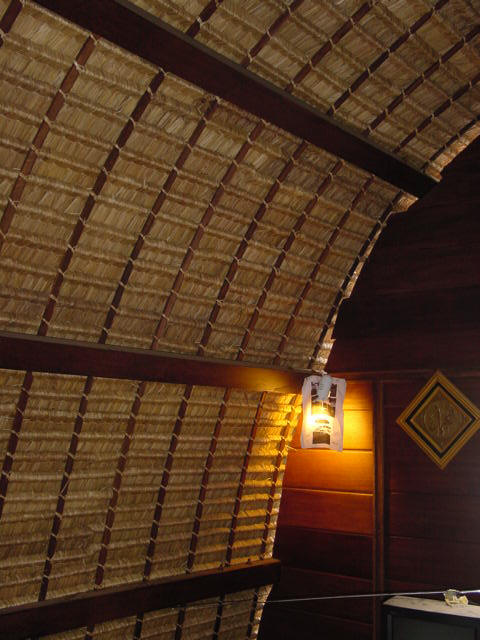

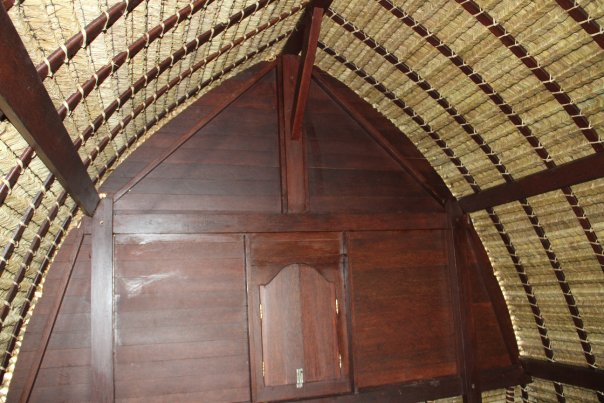

Jineng A 23 2      Jineng A 23 1

Interior


GENERAL DATA
Total net. interior sided area: 18.1 m2 (185 sqft),

Deck area: 5.9 m2 (64 sqft)

Building footprint area: 4.51 x 7.35 meter (14' - 9 3/4" x 24' - 1 1/8")
Roof edge footprint area: 4.94 x 7.00 meter (16' - 2 3/8" x 22' - 11 1/8")

Enquire for the price list download code


To return to the Excel price list click on X at the top right side of the drawing. To link to another model page in this website click < here >
