JEPUN-7 (10.9 m2. 117 sqft)
2nd floor (13.9 m2, 150 sqft)
Deck 5.3 m2 , 57 sqft), Balcony 2.1 m2, 23 sqft)
Code A-24

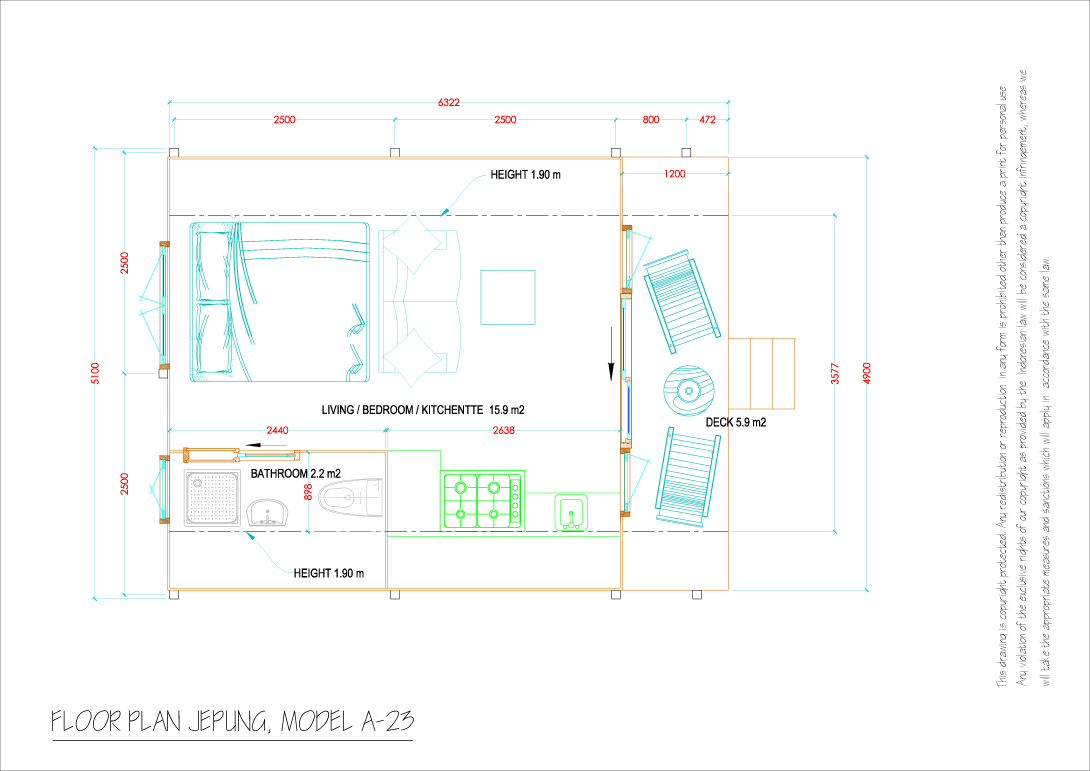

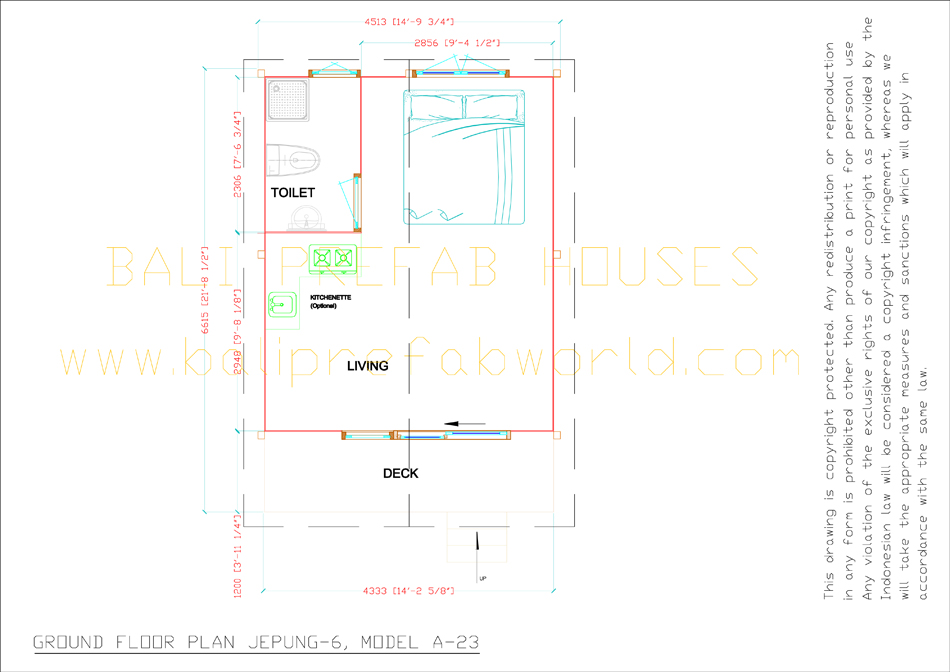

Ground floor
2nd floor

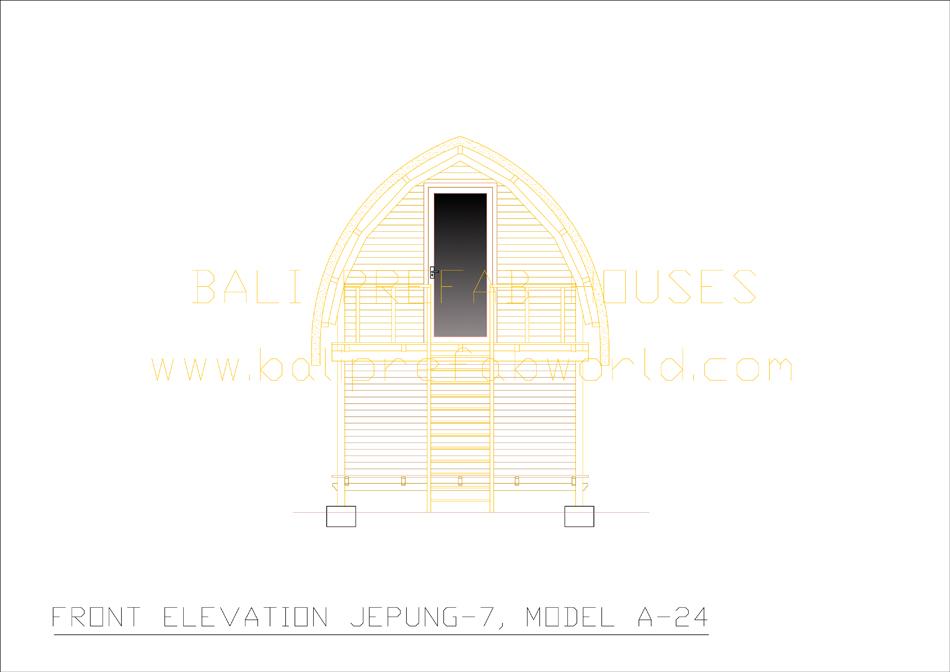

Front elevation

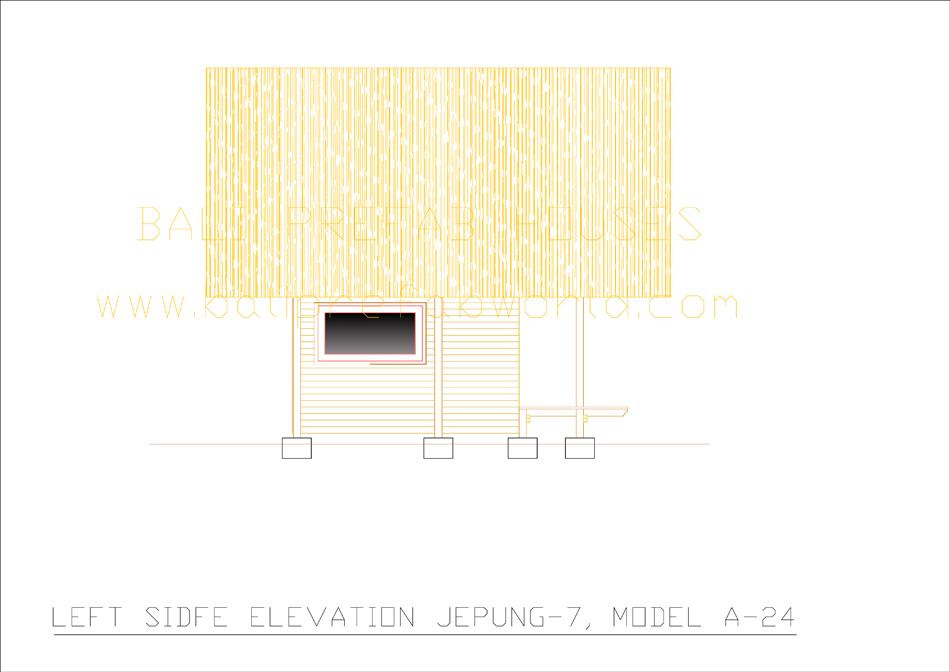

Left side elevation
As built
GENERAL DATA
Total net. interior sided area:
Ground floor: 10.9 m2 (117 sqft),
2nd floor: 13.9 m2 (150 sqft)
Deck: 5.3 m2 (57 sqft). Balcony: 2.1 m2 (23 sqft)
Building footprint area: 3.54 x 6.62 meter (11' - 7 1/4" x 21' - 8 1/2")
Roof edge footprint area: 4.10 x 6.40 meter (13' - 5 3/8" x 21' - 0")
