JEPUN-2, 1-bedroom
First floor: 11.9 m2, 128 sqft
2nd. floor: 27.2 m2, 293 sqft
Code A-19

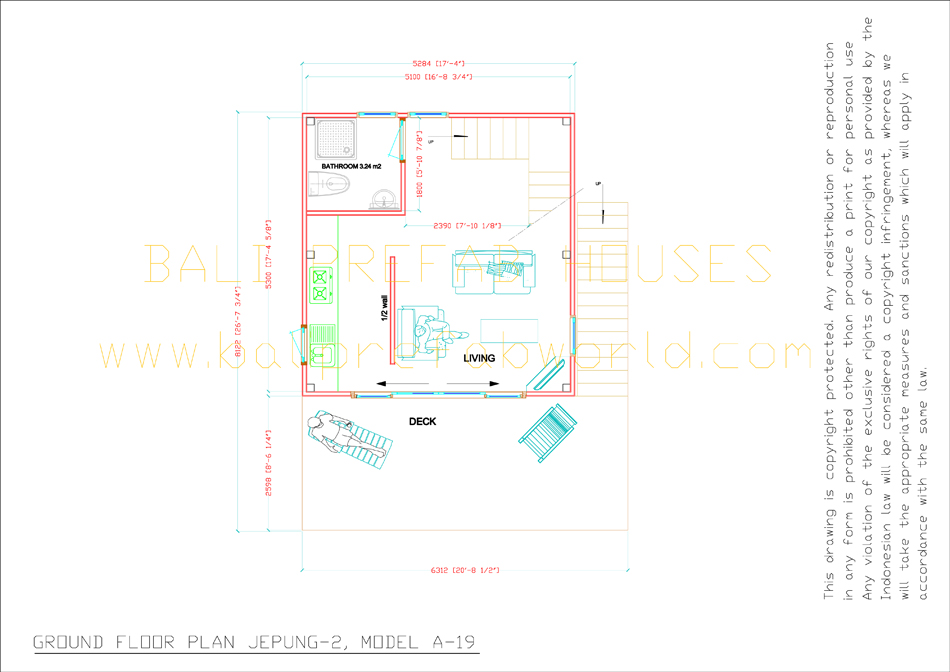

Ground floor plan

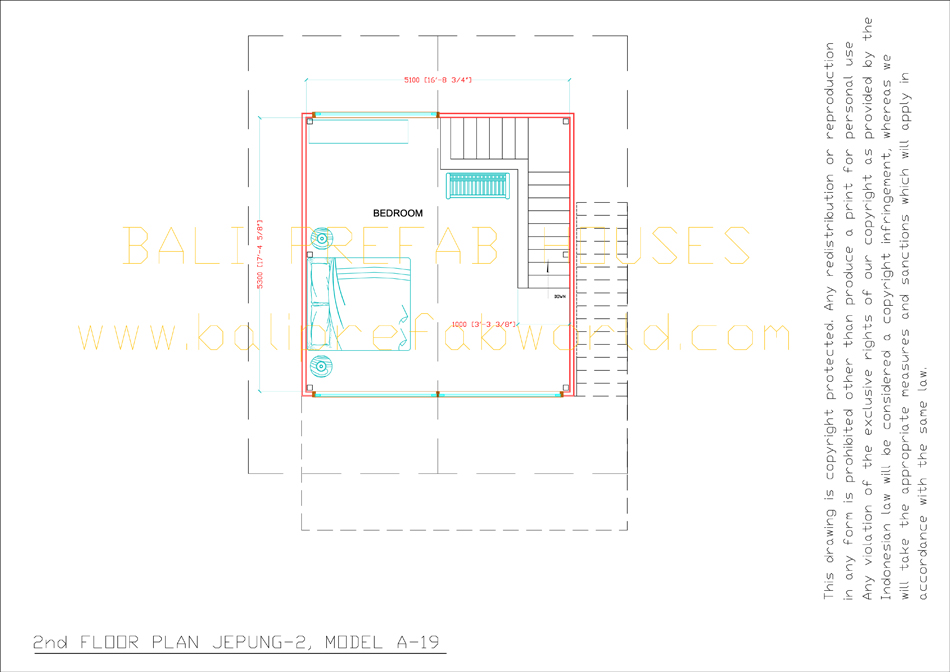

2nd floor plan

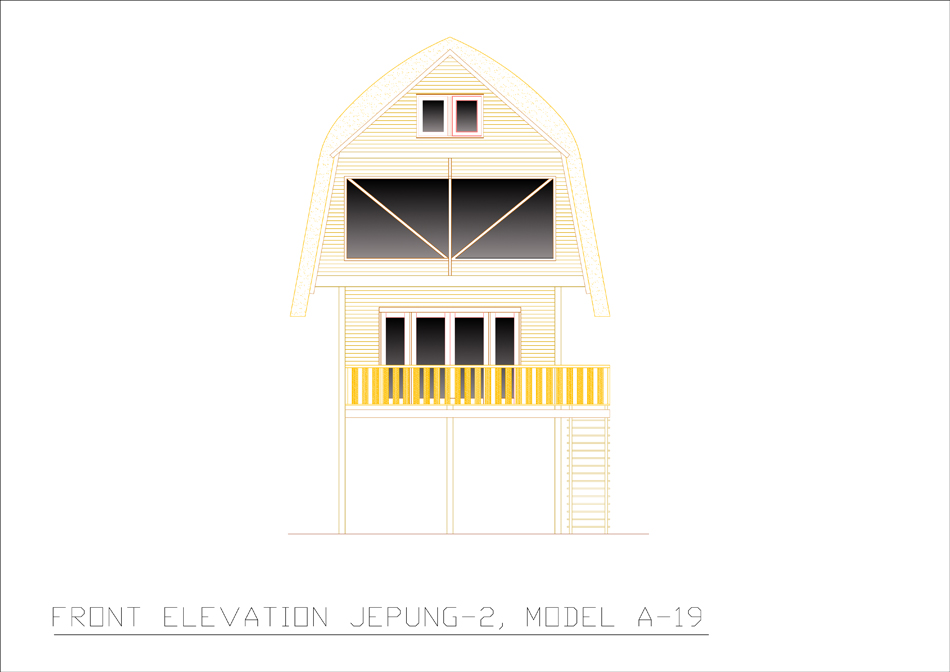

Front elevation

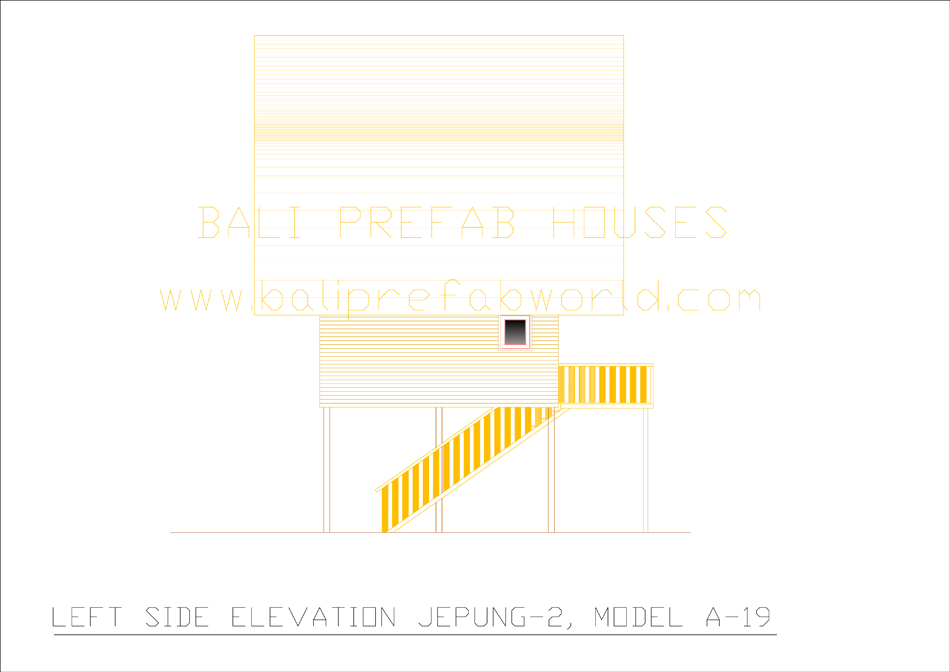

Left side elevation

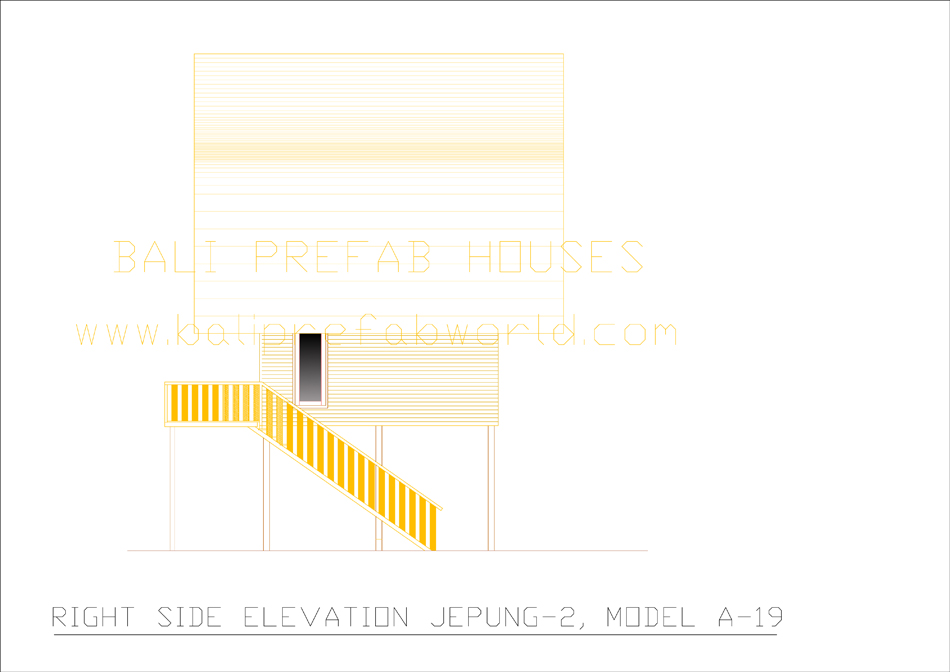

Right side elevation

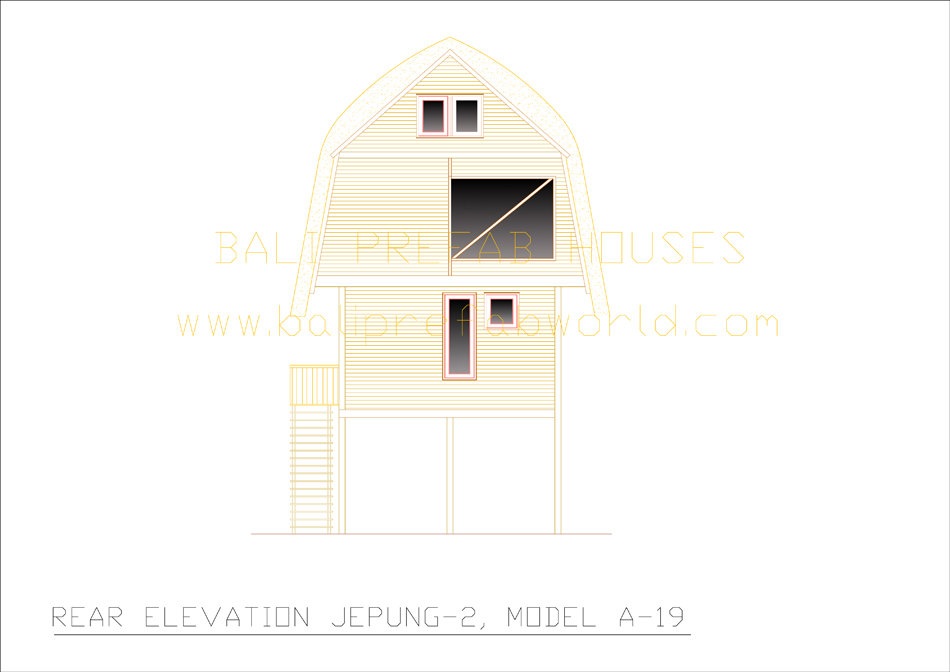

Rear elevation
Front view
2nd floor bedroom
GENERAL DATA
Total net. interior sided area
Ground floor: 27.3 m2 (294 sqft),
2nd floor: 27.2 m2 (293 sqft)
Deck: 16.5 m2 (178 sqft)
Building footprint area: 6.31 x 8.10 meter (20' - 8 1/2" x 26' - 7")
Roof edge footprint area: 7.35 x 8.48 meter (24' - 1 1/4" x 27' - 10")
Enquire for the price list download code
To return to the Excel price list click on X at the top right side of the drawing. To link to another model page in this website click < here >
