FUCHSIA-A, 2-bedroom
Ground floor: 46 m2, 495 sqft
2nd. floor: 26.4 m2, 284 sqft
Code E-7A

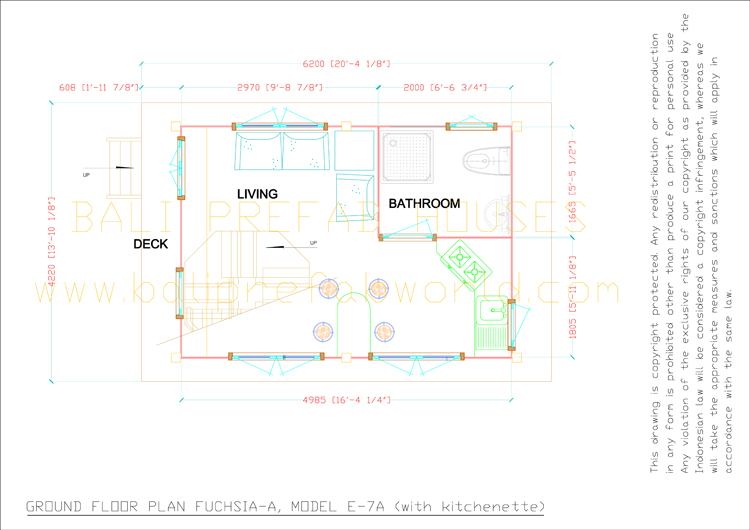

Ground floor plan

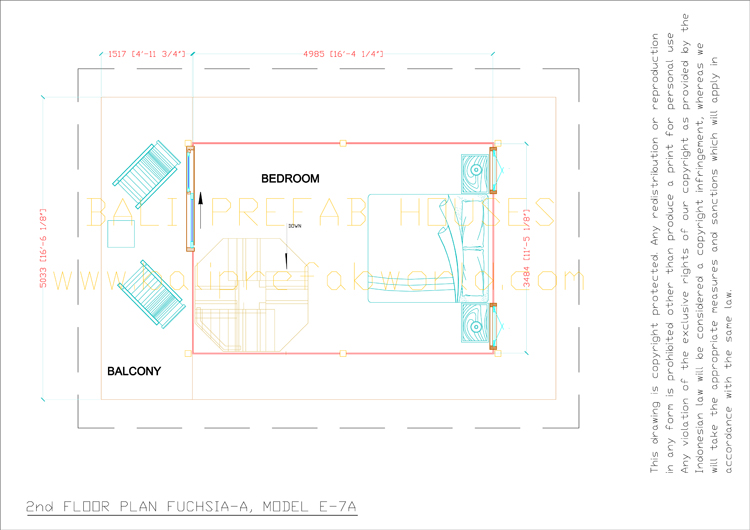

Second floor plan

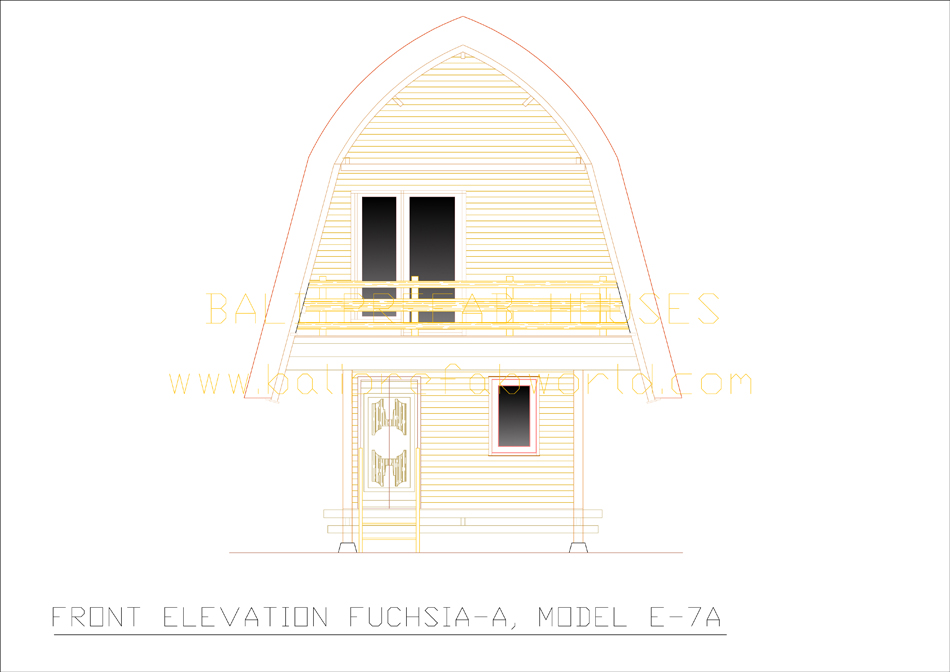

Front elevation

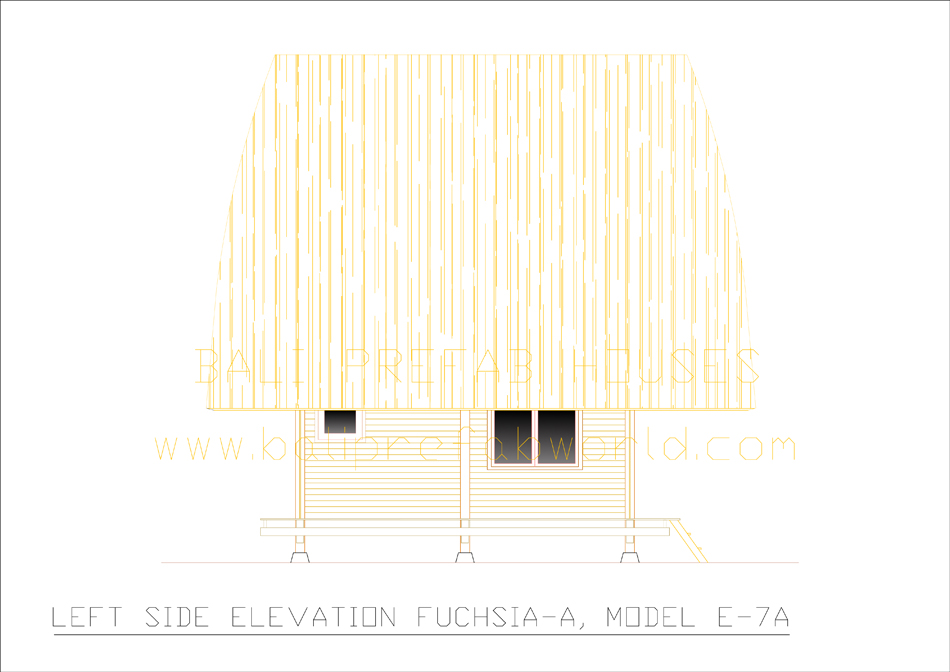

Left side elvation

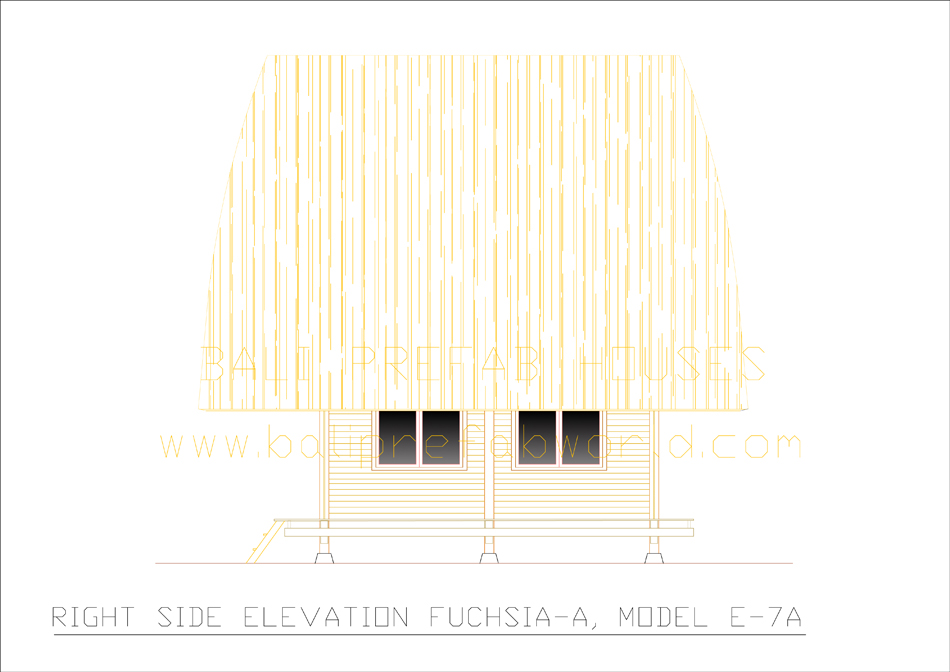

Right side elvation

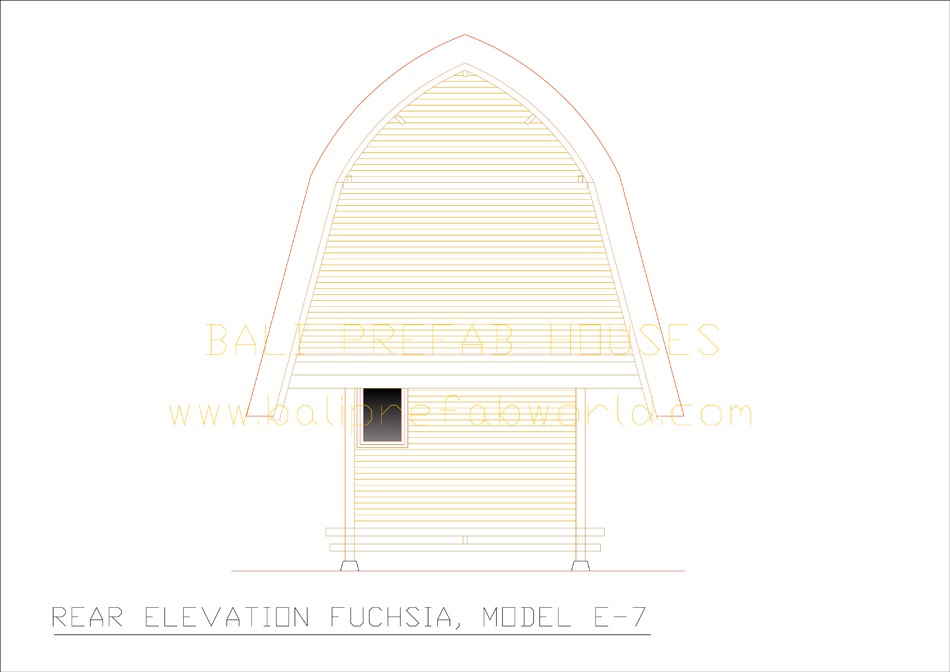

Rear elevation
GENERAL DATA
Total net. interior sided area:
Ground floor: 46 m2 (495 sqft),
2nd floor: 26.4 (284 sqft)
Deck area: Ground floor: 14 m2 (151 sqft), 2nd floor: 14 m2 (151 sqft)
Building footprint area: 5.97 x 10.91 meter (18' - 11 3/4" x 35' - 9 3/8")
Roof edge footprint area: 6.38 x 12.97 meter (20' - 11 1/4" x 42' - 6 7/8")
Enquire for the price list download code
