FUCHSIA-B, 2-bedroom
Ground floor: 46 m2, 485 sqft
2nd. floor: 35.5 m2, 382 sqft
Code E-7B

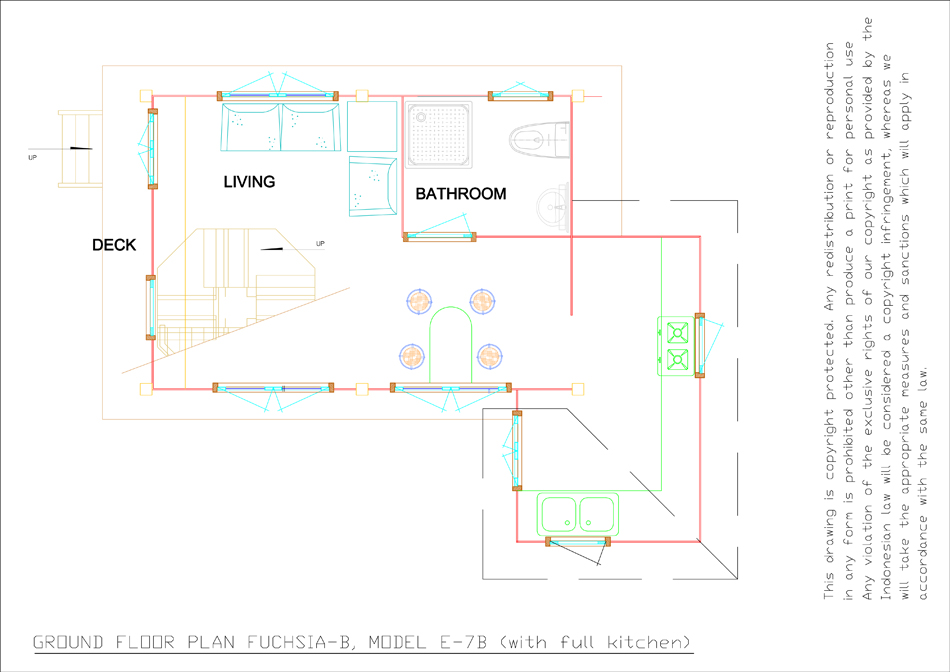

Ground floor plan

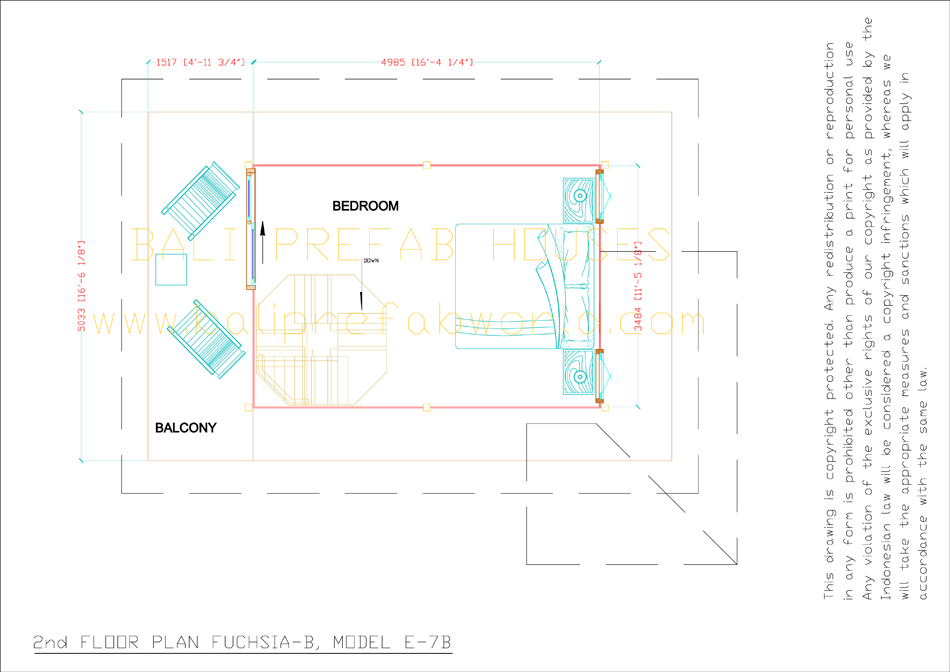

Second floor plan

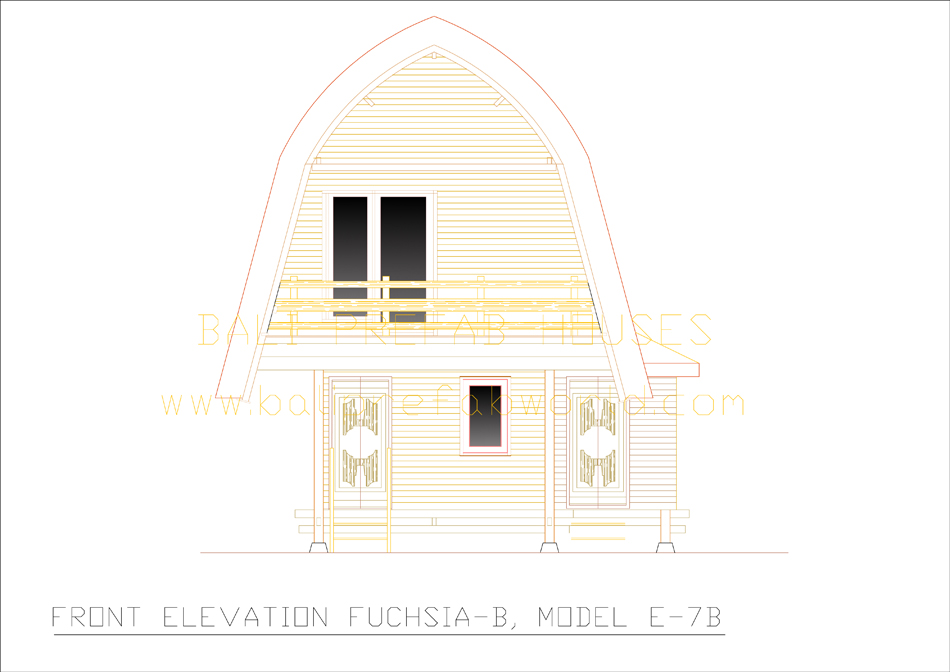

Front elevation

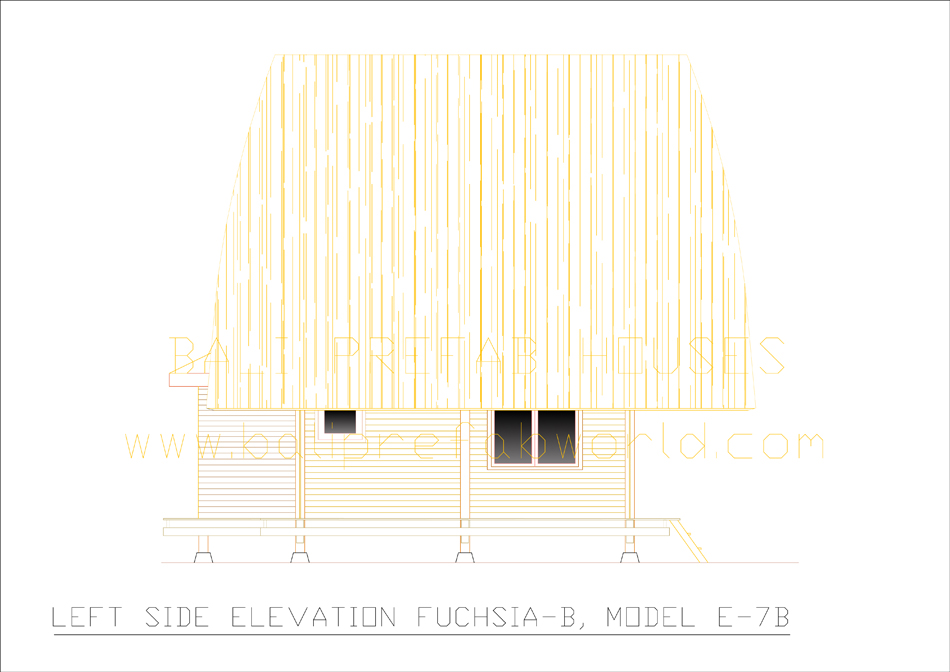

Left side elevation

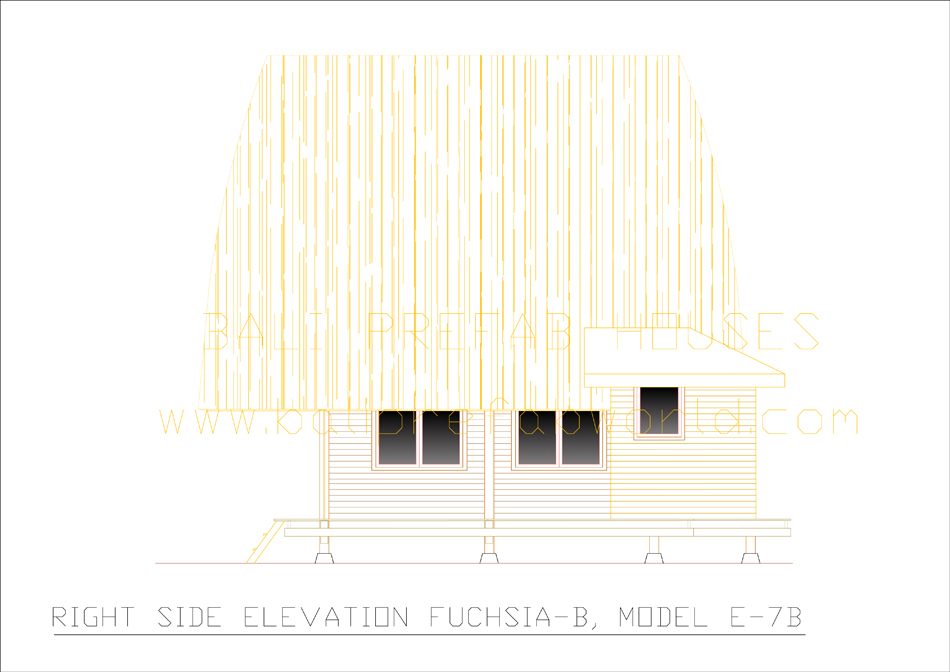

Right side elevation
Rear elevation
GENERAL DATA
Total net. interior sided area:
Ground floor: 249.6 m2 (534 sqft),
2nd floor: 35.5 (382 sqft)
Deck area: Ground floor: 14.9 m2 (160 sqft), 2nd floor: left: 6.8 m2 (73 sqft), right: 4.1 m2 (44 sqft), front: 5.8 m2 62 sqft)
Ground floor: 249.6 m2 (534 sqft),
2nd floor: 35.5 (382 sqft)
Deck area: Ground floor: 14.9 m2 (160 sqft), 2nd floor: left: 6.8 m2 (73 sqft), right: 4.1 m2 (44 sqft), front: 5.8 m2 62 sqft)
Building footprint area: 15.67 x 23.68 meter (51' - 4 3/4" x 77' - 8 1/8")
Roof edge footprint area: 18.09 x 26.08 meter (59' - 4" x 85' - 6 5/8")
Enquire for the price list download code
